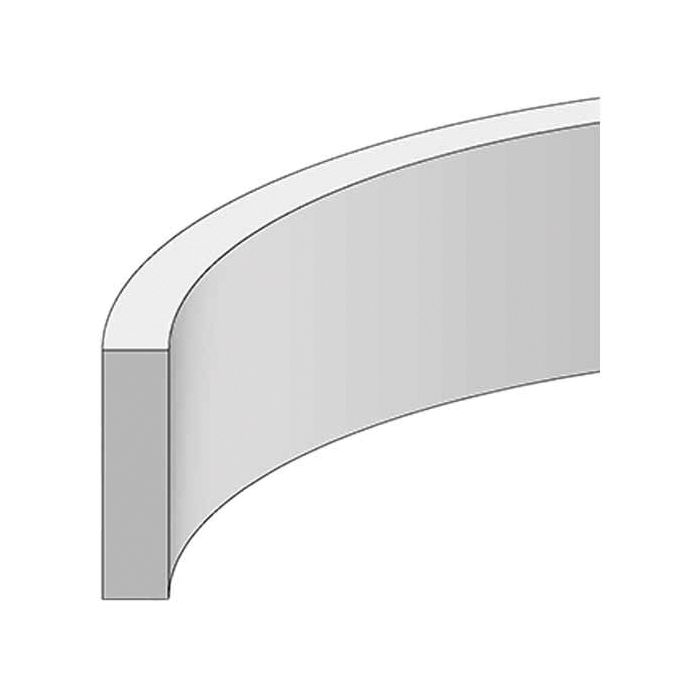

Machined from nylon, this wear ring provides lateral support and guides piston movement within hydraulic cylinders, helping to prevent metal-to-metal contact between moving components. The Nylon Wear Ring, 2.00 Inch OD, 1/8 Inch Thick, 5/8 Inch Width is manufactured by Hercules Sealing Products and is suited for a range of hydraulic cylinder applications where reliable guidance and wear resistance are required.

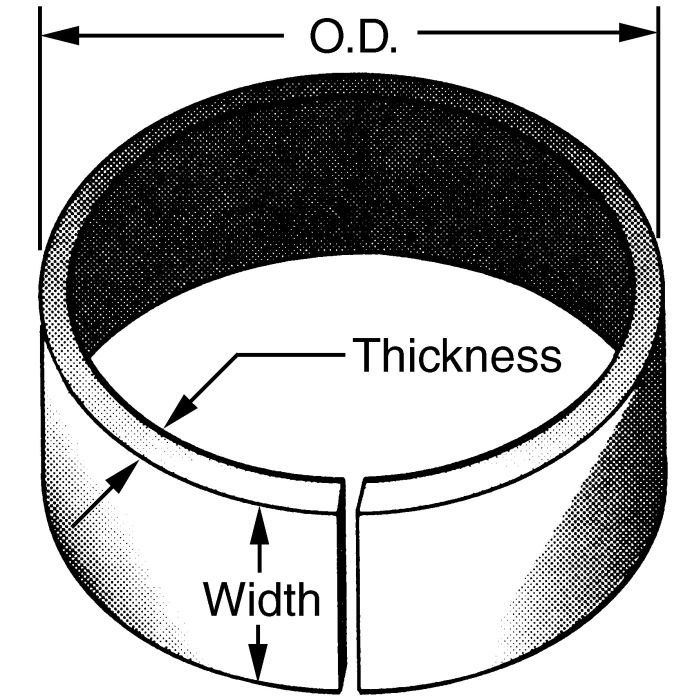

With a 2-inch OD, 1/8-inch wall thickness, and 5/8-inch width, this ring fits standard cylinder bore configurations. Nylon construction supports a compressive strength of 35,000 PSI and a tensile strength of 27,000 PSI, with an operating temperature range of -40°F to 250°F, making it compatible with both cold-climate and elevated-temperature hydraulic environments.
SKU: 612-200-062
Supplier Part Number (MPN): 612-200-062
Alternate Part Numbers: C1BW38
|
Alternate Part Numbers
C1BW38
|
Brand
Hercules Sealing Products
|
Brand
Hercules Sealing Products
|
Pack Size
1.00
|
UOM
EA
|
O.D.
2 in
|
Supplier Part Number
612-200-062
|
Thickness (in)
1/8
|
Product Weight
0.03 lbs
|
Width (in)
5/8
|
| Model Number | Thickness (in) | Width (in) | O.D. | Price | Action |
|---|---|---|---|---|---|
612-250-037 Nylon Wear Ring |
1/8 |
3/8 |
2.5 in |
|
|
612-275-050 Nylon Wear Ring |
1/8 |
1/2 |
2.75 in |
|
|
612-275-100 Nylon Wear Ring |
1/8 |
1 |
2.75 in |
|
|
612-300-050 Nylon Wear Ring |
1/8 |
1/2 |
3 in |
|
|
612-350-050 Nylon Wear Ring |
1/8 |
1/2 |
3.5 in |
|
|
612-400-062 Nylon Wear Ring |
1/8 |
5/8 |
4 in |
|
|
612-450-050 Nylon Wear Ring |
1/8 |
1/2 |
4.5 in |
|
|
612-500-050 Nylon Wear Ring |
1/8 |
1/2 |
5 in |
|
|
612-500-075 Nylon Wear Ring |
1/8 |
3/4 |
5 in |
|
|
612-200-037 Nylon Wear Ring |
1/8 |
3/8 |
2 in |
|
|
612-200-062 Nylon Wear Ring |
1/8 |
5/8 |
2 in |
|
|
612-200-075 Nylon Wear Ring |
1/8 |
3/4 |
2 in |
|
|
612-225-050 Nylon Wear Ring |
1/8 |
1/2 |
2.25 in |
|
|
612-250-062 Nylon Wear Ring |
1/8 |
5/8 |
2.5 in |
|
|
612-250-075 Nylon Wear Ring |
1/8 |
3/4 |
2.5 in |
|
|
612-300-037 Nylon Wear Ring |
1/8 |
3/8 |
3 in |
|
|
612-300-075 Nylon Wear Ring |
1/8 |
3/4 |
3 in |
|
|
612-350-037 Nylon Wear Ring |
1/8 |
3/8 |
3.5 in |
|
|
612-350-075 Nylon Wear Ring |
1/8 |
3/4 |
3.5 in |
|
|
612-375-050 Nylon Wear Ring |
1/8 |
1/2 |
3.75 in |
|
|
612-450-075 Nylon Wear Ring |
1/8 |
3/4 |
4.5 in |
|
|
612-500-100 Nylon Wear Ring |
1/8 |
1 |
5 in |
|
|
612-600-037 Nylon Wear Ring |
1/8 |
3/8 |
6 in |
|
|
612-600-050 Nylon Wear Ring |
1/8 |
1/2 |
6 in |
|
|
612-600-062 Nylon Wear Ring |
1/8 |
5/8 |
6 in |
|
|
612-700-050 Nylon Wear Ring |
1/8 |
1/2 |
7 in |
|
|
612-400-050 Nylon Wear Ring |
1/8 |
1/2 |
4 in |
|
