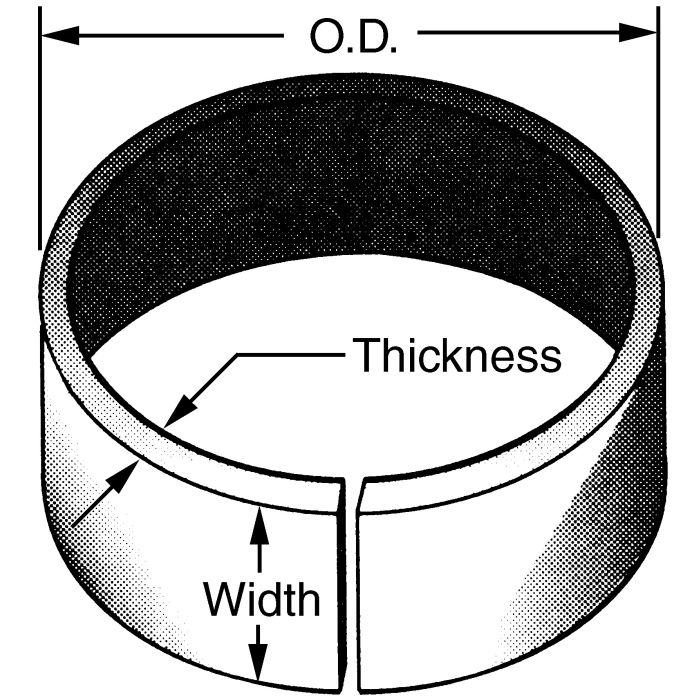

This Hercules Sealing Products nylon wear ring has a 5.00 inch outer diameter and a 3/4 inch width. It is 1/8 inch thick and suitable for use in a variety of hydraulic applications.
The Nylon Wear Ring offers a compressive strength of 35,000 PSI, and a tensile strength of 27,000 PSI. It is functional in a temperature range of -40°F to 250°F.
SKU: 612-500-075
Supplier Part Number (MPN): 612-500-075-SC
Alternate Part Numbers: C1GM71
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part Number612-500-075-SC, Alternate Part Number C1GM71
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
O.D.
5 in
Supplier Part Number
612-500-075-SC
Thickness (in)
1/8
Product Weight
0.08 lbs
Width (in)
3/4
Similar Products
Model Number
Thickness (in)
Width (in)
O.D.
Price
Action
612-250-037Nylon Wear Ring
1/8
3/8
2.5 in
612-275-050Nylon Wear Ring
1/8
1/2
2.75 in
612-275-100Nylon Wear Ring
1/8
1
2.75 in
612-300-050Nylon Wear Ring
1/8
1/2
3 in
612-350-050Nylon Wear Ring
1/8
1/2
3.5 in
612-400-062Nylon Wear Ring
1/8
5/8
4 in
612-450-050Nylon Wear Ring
1/8
1/2
4.5 in
612-500-050Nylon Wear Ring
1/8
1/2
5 in
612-500-075Nylon Wear Ring
1/8
3/4
5 in
612-200-037Nylon Wear Ring
1/8
3/8
2 in
612-200-062Nylon Wear Ring
1/8
5/8
2 in
612-200-075Nylon Wear Ring
1/8
3/4
2 in
612-225-050Nylon Wear Ring
1/8
1/2
2.25 in
612-250-062Nylon Wear Ring
1/8
5/8
2.5 in
612-250-075Nylon Wear Ring
1/8
3/4
2.5 in
612-300-037Nylon Wear Ring
1/8
3/8
3 in
612-300-075Nylon Wear Ring
1/8
3/4
3 in
612-350-037Nylon Wear Ring
1/8
3/8
3.5 in
612-350-075Nylon Wear Ring
1/8
3/4
3.5 in
612-375-050Nylon Wear Ring
1/8
1/2
3.75 in
612-450-075Nylon Wear Ring
1/8
3/4
4.5 in
612-500-100Nylon Wear Ring
1/8
1
5 in
612-600-037Nylon Wear Ring
1/8
3/8
6 in
612-600-050Nylon Wear Ring
1/8
1/2
6 in
612-600-062Nylon Wear Ring
1/8
5/8
6 in
612-700-050Nylon Wear Ring
1/8
1/2
7 in
612-400-050Nylon Wear Ring
1/8
1/2
4 in
Product Questions & Answers (5)
Question by: Danny B on Mar 4, 2026, 5:22 PM
what's the temp range on this wear ring? got an application that sees some cold mornings and hot afternoons and need to know if nylon can hold up to that
Answer by: Customer Support on Mar 6, 2026, 6:08 AM
Rated for -40°F on the cold end and up to 250°F on the high side, so normal outdoor temperature swings aren't going to push it past its limits. That range covers most industrial and mobile hydraulic environments without any issue.
Question by: Jean O on Dec 28, 2025, 7:57 AM
got a cylinder with a 5 inch bore area, is this wear ring the right size or am i readin it wrong
Answer by: Customer Support on Dec 29, 2025, 5:23 PM
Fit comes down to the ring’s physical dimensions. This one is a nylon wear ring with a 5.00 inch outside diameter, 1/8 inch thickness, and 3/4 inch width, so you would match those numbers to the groove and the diameter you’re working with.
Question by: Eddie M on Oct 25, 2025, 12:34 PM
What's the compressive strength on this wear ring?
Answer by: Customer Support on Oct 27, 2025, 6:37 AM
It's rated for a compressive strength of 35,000 PSI.
Question by: Earl P on Oct 23, 2025, 9:00 AM
what temp range can these handle? got equipment running pretty hot and want to make sure they hold up before I order a bunch
Answer by: Customer Support on Oct 24, 2025, 10:01 AM
Rated from -40°F up to 250°F, so they can take a fair amount of heat without breaking down. For most hydraulic cylinder applications running at elevated temps, that range covers things well. Just make sure your operating conditions stay within that window and you should be in good shape.
Question by: Steve J on May 4, 2025, 5:46 PM
What's the temperature range this wear ring can handle?
Answer by: Customer Support on May 6, 2025, 6:46 AM
This nylon wear ring is rated for temperatures from -40°F up to 250°F.
