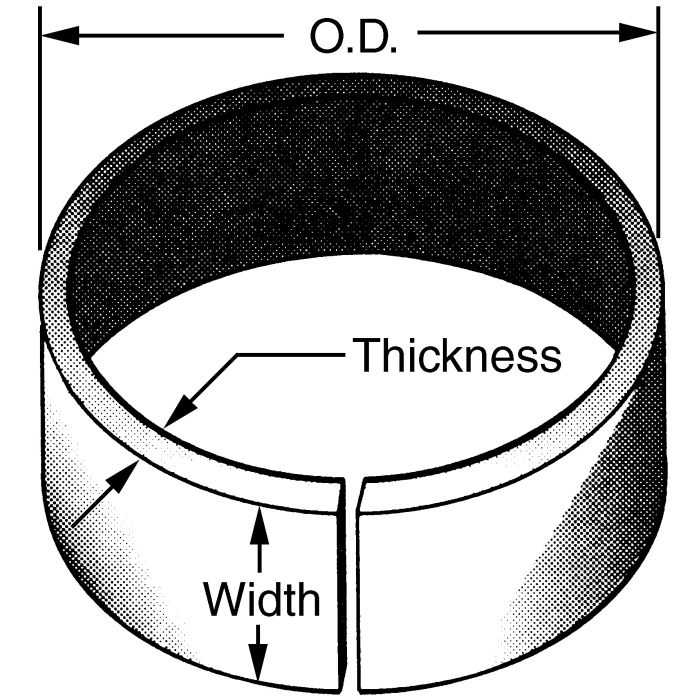

main product photo

Nylon Wear Ring, 5.00 Inch OD, 1/8 Inch Thick, 1 Inch Width

Ask A Question

Description & Features

Manufactured from nylon by Hercules Sealing Products, this Nylon Wear Ring, 5.00 Inch OD, 1/8 Inch Thick, 1 Inch Width is suited for use in hydraulic cylinders and linear actuator assemblies where consistent radial support and reduced metal-to-metal contact are required. The nylon construction provides reliable performance across a temperature range of -40°F to 250°F, with a compressive strength of 35,000 PSI, making it well-suited for demanding hydraulic service environments.

With a 5-inch outer diameter, 1/8-inch wall thickness, and 1-inch width, this wear ring is designed to guide piston and rod movement, absorbing side loads and preventing scoring of cylinder bores and rod surfaces. Nylon wear rings are commonly used in mobile hydraulic equipment, industrial machinery, and heavy-duty cylinder rebuilds where dimensional stability and low friction are critical.

SKU: 612-500-100

Supplier Part Number (MPN): 612-500-100-SC

Alternate Part Numbers: C1BW59

Specifications

Alternate Part Numbers
Alternate Part Number C1BW59
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
O.D.
5 in
Supplier Part Number
612-500-100-SC
Thickness (in)
1/8
Product Weight
0.11 lbs
Width (in)
1

Similar Products

Model Number Thickness (in) Width (in) O.D. Price Action
Nylon Wear Ring, 2.50 Inch OD, 1/8 Inch Thick, 3/8 Inch Width

612-250-037 Nylon Wear Ring

1/8

3/8

2.5 in

Nylon Wear Ring, 2.75 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-275-050 Nylon Wear Ring

1/8

1/2

2.75 in

Nylon Wear Ring, 2.75 Inch OD, 1/8 Inch Thick, 1 Inch Width

612-275-100 Nylon Wear Ring

1/8

1

2.75 in

Nylon Wear Ring, 3.00 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-300-050 Nylon Wear Ring

1/8

1/2

3 in

Nylon Wear Ring, 3.50 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-350-050 Nylon Wear Ring

1/8

1/2

3.5 in

Nylon Wear Ring, 4.00 Inch OD, 1/8 Inch Thick, 5/8 Inch Width

612-400-062 Nylon Wear Ring

1/8

5/8

4 in

Nylon Wear Ring, 4.50 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-450-050 Nylon Wear Ring

1/8

1/2

4.5 in

Nylon Wear Ring, 5.00 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-500-050 Nylon Wear Ring

1/8

1/2

5 in

Nylon Wear Ring, 5.00 Inch OD, 1/8 Inch Thick, 3/4 Inch Width

612-500-075 Nylon Wear Ring

1/8

3/4

5 in

Nylon Wear Ring, 2.00 Inch OD, 1/8 Inch Thick, 3/8 Inch Width

612-200-037 Nylon Wear Ring

1/8

3/8

2 in

Nylon Wear Ring, 2.00 Inch OD, 1/8 Inch Thick, 5/8 Inch Width

612-200-062 Nylon Wear Ring

1/8

5/8

2 in

Nylon Wear Ring, 2.00 Inch OD, 1/8 Inch Thick, 3/4 Inch Width

612-200-075 Nylon Wear Ring

1/8

3/4

2 in

Nylon Wear Ring, 2.25 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-225-050 Nylon Wear Ring

1/8

1/2

2.25 in

Nylon Wear Ring, 2.50 Inch OD, 1/8 Inch Thick, 5/8 Inch Width

612-250-062 Nylon Wear Ring

1/8

5/8

2.5 in

Nylon Wear Ring, 2.50 Inch OD, 1/8 Inch Thick, 3/4 Inch Width

612-250-075 Nylon Wear Ring

1/8

3/4

2.5 in

Nylon Wear Ring, 3.00 Inch OD, 1/8 Inch Thick, 3/8 Inch Width

612-300-037 Nylon Wear Ring

1/8

3/8

3 in

Nylon Wear Ring, 3.00 Inch OD, 1/8 Inch Thick, 3/4 Inch Width

612-300-075 Nylon Wear Ring

1/8

3/4

3 in

Nylon Wear Ring, 3.50 Inch OD, 1/8 Inch Thick, 3/8 Inch Width

612-350-037 Nylon Wear Ring

1/8

3/8

3.5 in

Nylon Wear Ring, 3.50 Inch OD, 1/8 Inch Thick, 3/4 Inch Width

612-350-075 Nylon Wear Ring

1/8

3/4

3.5 in

Nylon Wear Ring, 3.75 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-375-050 Nylon Wear Ring

1/8

1/2

3.75 in

Nylon Wear Ring, 4.50 Inch OD, 1/8 Inch Thick, 3/4 Inch Width

612-450-075 Nylon Wear Ring

1/8

3/4

4.5 in

Nylon Wear Ring, 5.00 Inch OD, 1/8 Inch Thick, 1 Inch Width

612-500-100 Nylon Wear Ring

1/8

1

5 in

Nylon Wear Ring, 6.00 Inch OD, 1/8 Inch Thick, 3/8 Inch Width

612-600-037 Nylon Wear Ring

1/8

3/8

6 in

Nylon Wear Ring, 6.00 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-600-050 Nylon Wear Ring

1/8

1/2

6 in

Nylon Wear Ring, 6.00 Inch OD, 1/8 Inch Thick, 5/8 Inch Width

612-600-062 Nylon Wear Ring

1/8

5/8

6 in

Nylon Wear Ring, 7.00 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-700-050 Nylon Wear Ring

1/8

1/2

7 in

Nylon Wear Ring, 4.00 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

612-400-050 Nylon Wear Ring

1/8

1/2

4 in

Product Questions & Answers (2)

Question by: Dale P on Nov 17, 2025, 12:42 PM
What kind of pressure can this wear ring handle before it gives out?
Answer by: Customer Support on Nov 19, 2025, 6:53 AM
Compressive strength on this nylon wear ring is rated to 35,000 PSI, so it's pretty tough stuff.
Question by: Gene L on Jul 27, 2025, 9:47 AM
what temp range can this wear ring handle? got equipment running in some pretty cold conditions and want to make sure it won't get brittle on me
Answer by: Customer Support on Jul 29, 2025, 6:56 AM
Rated from -40°F up to 250°F, so cold weather operation is well within its range. Nylon at this grade holds up through freeze conditions without getting brittle or losing its shape, and the upper end gives you solid headroom for warmer running equipment too.
