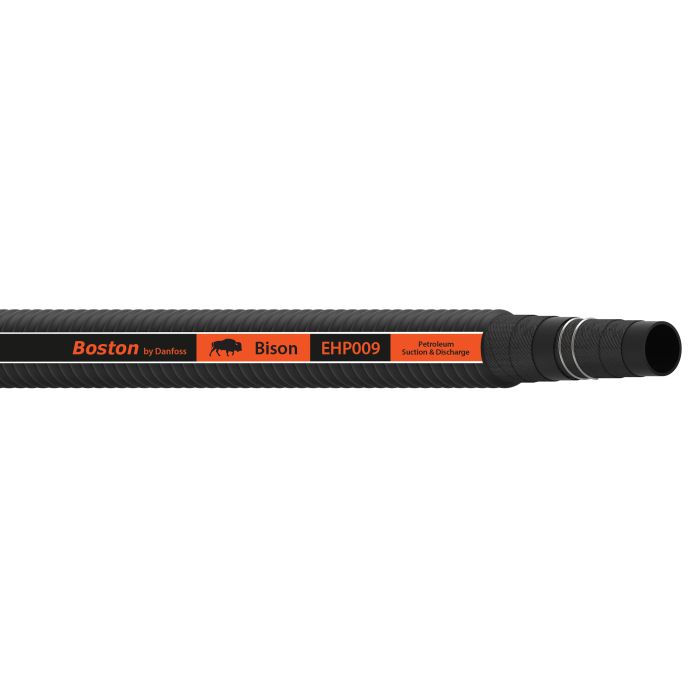

Oilfield Vacuum Hose, 3.17 Inch OD, 2.50 Inch ID, Up To 150.00 PSI

Ask A Question

Description & Features

The Oilfield Vacuum Hose is designed for demanding transfer applications such as drilling mud or crude oil. It has a hose I.D. of 2.5 inches and a hose O.D. of 3.17 inches, with a maximum operating pressure of 150 PSI.

Constructed with a durable nitrile blend tube, high-tensile synthetic textile reinforcement featuring dual steel helical wires, and a corrugated SBR blend cover, this hose is robust and reliable. It supports a temperature range from -22deg;F to +176deg;F, ensuring performance in varied environmental conditions.

The hose has a minimum bend radius of 7.68 inches and is suitable for vacuum service up to 28. Its design includes fitting attachments such as crimp, swage, band & buckle, and Band-It Jr preformed clamps. Recommended fittings include cam and groove, male NPT, and unions, enhancing versatility in industrial setups.

MPN: EAR99

Supplier Part Number: EHP009-40-100

Specifications

Color
Black
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
12.00
UOM
FT
Hose I.D.
2.50
Hose O.D.
3.17
Maximum Operating Pressure
150
Minimum Bend Radius
7.68
Minimum Bend Radius
7.68
Reel Qty (ft)
100
Supplier Part Number
EHP009-40-100
Vacuum Service
28
Alternate Part Numbers
Alternate Part Number C1NB18, Alternate Part Number EHP00940-100
Product Weight
0.76 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Oilfield Vacuum Hose, 3.17 Inch OD, 2.50 Inch ID, Up To 150.00 PSI

EHP009-40-100 Oilfield Vacuum Hose

2.5

3.17

150

7.68

28

100

Oilfield Vacuum Hose, 1.78 Inch OD, 1.50 Inch ID, Up To 150.00 PSI

EHP009-24-100 Oilfield Vacuum Hose

1.5

1.78

150

4.53

28

100

Oilfield Vacuum Hose, 2.41 Inch OD, 2.00 Inch ID, Up To 150.00 PSI

EHP009-32-100 Oilfield Vacuum Hose

2

2.41

150

5.71

28

100

Oilfield Vacuum Hose, 3.58 Inch OD, 3.00 Inch ID, Up To 150.00 PSI

EHP009-48-100 Oilfield Vacuum Hose

3

3.58

150

9.4499

28

100

Oilfield Vacuum Hose, 4.58 Inch OD, 4.00 Inch ID, Up To 150.00 PSI

EHP009-64-100 Oilfield Vacuum Hose

4

4.58

150

13.39

28

100

Product Questions & Answers (1)

Question by: Hugh B on Jan 3, 2026, 6:09 AM
got a pump that pulls vacuum on drilling mud, will this hose handle that without suckin flat on me
Answer by: Customer Support on Jan 5, 2026, 6:56 AM
For vacuum service, it is rated up to 28 and it is built with dual steel helical wires plus high tensile synthetic textile reinforcement to help keep the hose from collapsing under suction.
