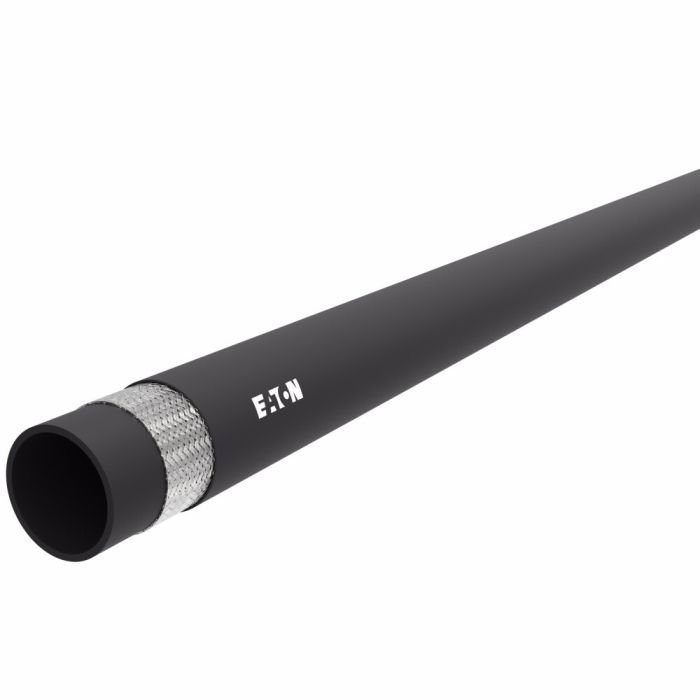

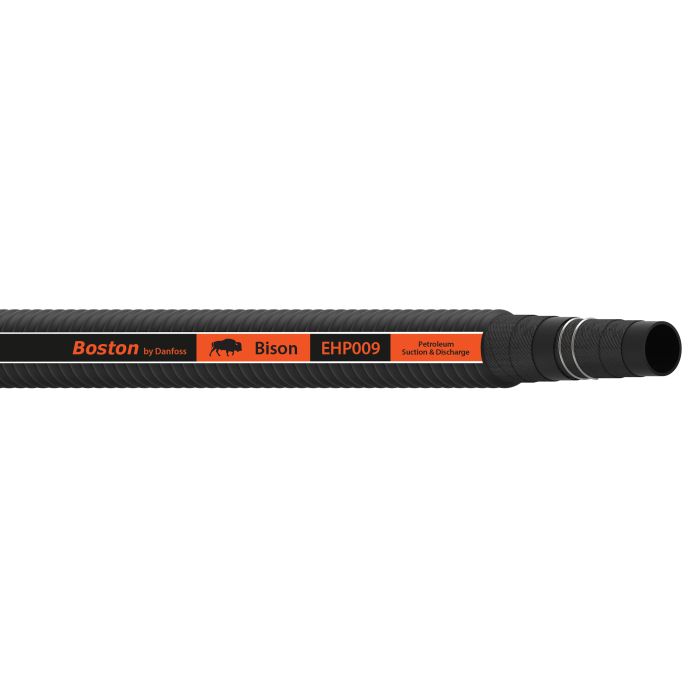

Oilfield Vacuum Hose, 4.58 Inch OD, 4.00 Inch ID, Up To 150.00 PSI

Ask A Question

Description & Features

This Eaton Industrial Hose is a 4-inch ID oilfield vacuum hose designed for oil and petroleum applications.

The black hose has a 4.58-inch OD and is capable of handling pressures up to 150 PSI. Refer to the Eaton fluid compatibility document for approved fluids.

SKU: EHP009-64-100

Supplier Part Number (MPN): EHP009-64-100

Alternate Part Numbers: C1NB20, EHP009-64BK-100, EHP00964-100

Specifications

Brand
Aeroquip® by Danfoss
Color
Black
Conductivity
Conductive
Cover Material
SBR
Dash Size
64
For Use With
Cam and Groove Hose Fittings
grp Construction
Tube: Nitrile Blend; Reinforcement: High-Tensile Synthetic Textile with Dual Steel Helical Wires; Cover: Corrugated SBR Blend
grp Fitting Attachment
Crimp, Swage, Band and Buckle, Band-It Jr Preformed Clamps
grp Fittings
Cam and Groove, Combination Nipple
grp Fittings Fitting Attachment Suggestions
Cam and Groove, Male NPT, Unions
Hose Type
Oilfield Vacuum
Lay Line Style
Ink Transfer
Nominal Size
#04
Qualified Hose Fittings
Cam and Groove
Resistance Properties
Abrasion
Series
EHP009 Series
Tube Material
NBR
Vacuum Service
28

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Oilfield Vacuum Hose, 3.17 Inch OD, 2.50 Inch ID, Up To 150.00 PSI

EHP009-40-100 Oilfield Vacuum Hose

2.5

3.17

150

7.68

28

100

Oilfield Vacuum Hose, 1.78 Inch OD, 1.50 Inch ID, Up To 150.00 PSI

EHP009-24-100 Oilfield Vacuum Hose

1.5

1.78

150

4.53

28

100

Oilfield Vacuum Hose, 2.41 Inch OD, 2.00 Inch ID, Up To 150.00 PSI

EHP009-32-100 Oilfield Vacuum Hose

2

2.41

150

5.71

28

100

Oilfield Vacuum Hose, 3.58 Inch OD, 3.00 Inch ID, Up To 150.00 PSI

EHP009-48-100 Oilfield Vacuum Hose

3

3.58

150

9.4499

28

100

Product Questions & Answers (1)

Question by: Frank T on Aug 9, 2025, 7:21 PM
What size is the inside of this hose?
Answer by: Customer Support on Aug 11, 2025, 6:17 AM
The inside diameter (ID) of this Eaton oilfield vacuum hose is 4 inches. The outside diameter (OD) is 4.58 inches.
