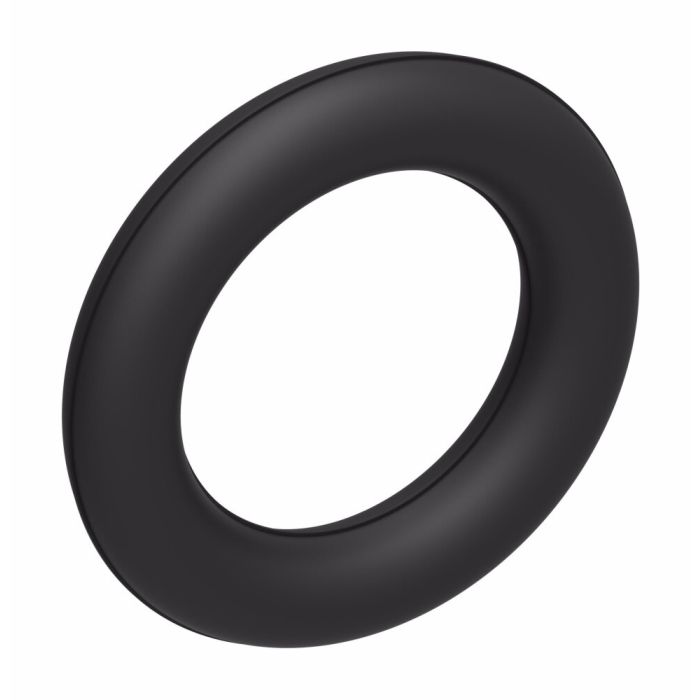

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 0.63 Inch

Description & Features

This high-performance Danfoss / Eaton spare part is manufactured to meet stringent conditions. Reliable and durable, it is ideal for Split Flange Kits & O-Rings applications.

With an inner diameter (I.D.) of 0.755 inches and an outer diameter (O.D.) of 0.949 inches, this product is precisely engineered for optimal performance. The material, Buna-N (90 durometer), ensures resilience within a temperature range of -30 to +250 degrees Fahrenheit.

Suitable for SAE O-Ring Boss fittings and adapters, this product has a width (E) of 0.097 inches and a tube size of 0.625 inches, providing an accurate seal for industrial applications. It is essential for maintaining the integrity of various mechanical connections.

The advanced specifications of this o-ring make it an indispensable component in mission-critical settings. The absence of thread sealant guarantees a clean fit without additional compounds.

MPN: EAR99

Supplier Part Number: 22617-10

Specifications

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	I.D. 0.755 in	Materials Buna-N (90 durometer)	O.D. 0.949 in	Supplier Part Number 22617-10	Temperature Range -30 to +250	Thread Sealant No	Tube Size 0.63	Product Weight 0.01 lbs	Alternate Part Numbers Alternate Part Number C1BD73, Alternate Part Number MI-00328742, Alternate Part Number MINO-00015F69445, Alternate Part Number ORB-10

Similar Products

Model Number	Tube Size	Materials	Temperature Range	I.D.	Width (E)	O.D.
22617-10 ORB Fitting/Adapter O-Ring	0.625	Buna-N (90 durometer)	-30 to +250	0.755 in	0.097	0.949 in
22617-12 ORB Fitting/Adapter O-Ring	0.75	Buna-N (90 durometer)	-30 to +250	0.924 in	0.116	1.156 in
22617-16 ORB Fitting/Adapter O-Ring	1	Buna-N (90 durometer)	-30 to +250	1.171 in	0.116	1.403 in
22617-4 ORB Fitting/Adapter O-Ring	0.25	Buna-N (90 durometer)	-30 to +250	0.351 in	0.072	0.495 in
22617-6 ORB Fitting/Adapter O-Ring	0.375	Buna-N (90 durometer)	-30 to +250	0.468 in	0.078	0.624 in
22617-8 ORB Fitting/Adapter O-Ring	0.5	Buna-N (90 durometer)	-30 to +250	0.644 in	0.087	0.818 in
B-904 ORB Fitting/Adapter O-Ring	0.25	Buna-N (90 durometer)	-30 to +250	0.351 in	0.072	0.495 in
B-912 ORB Fitting/Adapter O-Ring	0.75	Buna-N (90 durometer)	-30 to +250	0.924 in	0.116	1.156 in
B-916 ORB Fitting/Adapter O-Ring	1	Buna-N (90 durometer)	-30 to +250	1.171 in	0.116	1.403 in
22617-5 ORB Fitting/Adapter O-Ring	0.3125	Buna-N (90 durometer)	-30 to +250	0.414 in	0.072	0.558 in
B-903 ORB Fitting/Adapter O-Ring	0.188	Buna-N (90 durometer)	-30 to +250	0.301 in	0.064	0.429 in
B-906 ORB Fitting/Adapter O-Ring	0.375	Buna-N (90 durometer)	-30 to +250	0.468 in	0.078	0.624 in
B-908 ORB Fitting/Adapter O-Ring	0.5	Buna-N (90 durometer)	-30 to +250	0.644 in	0.087	0.818 in
B-910 ORB Fitting/Adapter O-Ring	0.625	Buna-N (90 durometer)	-30 to +250	0.755 in	0.097	0.949 in
B-914 ORB Fitting/Adapter O-Ring	0.875	Buna-N (90 durometer)	-30 to +250	1.047 in	0.116	1.279 in
B-920 ORB Fitting/Adapter O-Ring	1.25	Buna-N (90 durometer)	-30 to +250	1.475 in	0.118	1.711 in
B-924 ORB Fitting/Adapter O-Ring	1.5	Buna-N (90 durometer)	-30 to +250	1.72 in	0.118	1.956 in

Product Questions & Answers (3)

Question by: Wade W on Jan 2, 2026, 3:24 PM

trying to replace an o-ring on an SAE o-ring boss straight thread fitting, is this the right size for a 5/8 tube?

Answer by: Customer Support on Jan 4, 2026, 6:38 AM

For a 0.625 inch tube size, this O-ring matches that tube callout and it’s listed for SAE O-ring boss (straight thread) fittings and adapters. The actual ring dimensions are 0.755 inch ID, 0.949 inch OD, with a 0.097 inch width.

Question by: Larry H on Jun 17, 2025, 8:03 PM

what's the temp range on this o-ring? got a application that sees some heat and want to make sure it'll hold up

Answer by: Customer Support on Jun 19, 2025, 7:49 AM

Buna-N at 90 durometer handles anywhere from -30 up to 250 degrees Fahrenheit, so it's got a solid working range for most hydraulic setups running elevated temps. As long as your system stays within that window, the material holds its shape and sealing properties without breaking down.

Question by: Sherry A on Sep 5, 2025, 8:26 PM

Will this o-ring work with a standard SAE fitting?

Answer by: Customer Support on Sep 7, 2025, 6:05 AM

This O-ring is specifically made for SAE O-ring boss fittings and adapters, so it should be a good fit.
