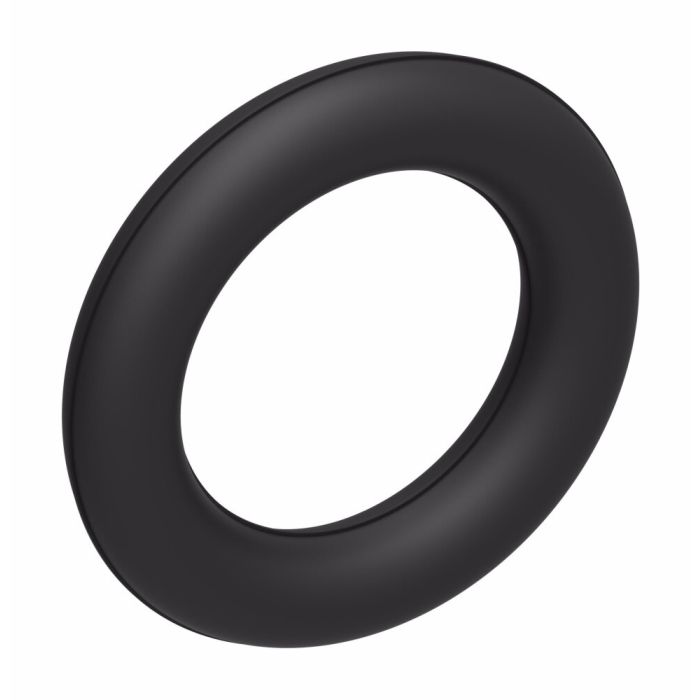

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 0.75 Inch

Description & Features

Engineered to meet demanding industrial standards, this Danfoss / Eaton Spare Part O-Ring is tailored for SAE O-Ring Boss (Straight Thread O-Ring) fittings and adapters. Designed with precision, the O-Ring measures 0.75 inches in tube size, ensuring a secure and reliable seal.

With an inside diameter of 0.924 inches and an outside diameter of 1.156 inches, the O-Ring provides optimal fit and performance. Constructed from high-quality Buna-N material with a 90 durometer rating, it offers durability and resistance to various chemicals, making it ideal for diverse applications.

This O-Ring operates efficiently within a temperature range of -30 to +250 degrees Fahrenheit, ensuring reliable performance in extreme conditions. Identified by the catalog number C1BD74 and UNSPSC 40183100, it is a critical component for maintaining system integrity.

MPN: EAR99

Supplier Part Number: 22617-12

Specifications

Brand Aeroquip® by Danfoss	Color Black	Dash Size 12	Durometer 90	Material Buna-N	Segment Code A	Series 22617 Series	Suitable For Use With 3/4 in Straight Thread O-ring Fitting and Adapter	Width e Dimensions 0.116 in

Similar Products

Model Number	Dash Size	Inside Diameter	Outside Diameter
22617-8 ORB Fitting/Adapter O-Ring	08	0.64 in	0.82 in
22617-16 ORB Fitting/Adapter O-Ring	16	1.171 in
22617-5 ORB Fitting/Adapter O-Ring	05	0.31 in
22617-4 ORB Fitting/Adapter O-Ring	04	0.35 in
22617-10 ORB Fitting/Adapter O-Ring	10	0.76 in
22617-6 ORB Fitting/Adapter O-Ring	06	0.475 in

Product Questions & Answers (2)

Question by: Lynn M on May 17, 2025, 7:27 AM

got a 3/4 tube size SAE o-ring boss fitting. is this the right o-ring or am i fixin to order the wrong thing

Answer by: Customer Support on May 19, 2025, 8:29 AM

For a 0.75 inch tube size SAE O-Ring Boss (straight thread) connection, this matches that size callout and is a Buna-N o-ring with a 0.924 inch ID and 1.156 inch OD.

Question by: Brent O on Sep 3, 2025, 9:41 AM

got a 3/4 inch SAE O-ring boss fitting that keeps weepin' at the connection, this the right size ring to fix that?

Answer by: Customer Support on Sep 4, 2025, 8:38 PM

For a 3/4 inch tube size SAE O-Ring Boss straight thread fitting, yes, this is the correct replacement. The inside diameter is 0.924 inches and the outside diameter is 1.156 inches, which is what that port size calls for. The Buna-N material at 90 durometer gives you a firm, reliable seal that holds up well under the compression a straight thread boss fitting applies to the ring.
