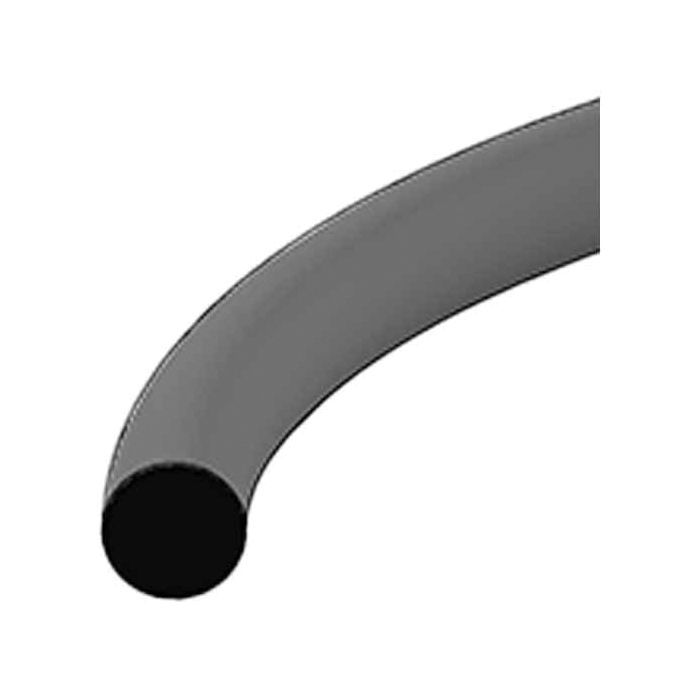

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 1.00 Inch

Description & Features

This O-Ring is designed for use with SAE O-Ring Boss (Straight Thread O-Ring) fittings and adapters, specifically sized for a 1.00 inch tube.

Constructed from Buna-N (90 durometer), this O-Ring offers reliable sealing performance in a temperature range of -30 to +250°F. Its dimensions include an ID of 1.171 inches, an OD of 1.403 inches, and a width of 0.116 inches.

SKU: B-916

Supplier Part Number (MPN): 568-916

Alternate Part Numbers: 568-916-B, C1CL35, H90916, MI-08748176, MINO-00407X88006

Specifications

Brand HERCULES® SEALING PRODUCTS	Color Black	Cross Section Shape Round	Dash Size 916	Durometer 90	Inside Diameter 1.171 in	Material Buna-N	Outside Diameter 1 in	Series 568 Series	Suitable For Use With High-Pressure Straight Thread Fittings, Hydraulic Cylinders	System of Measurement Imperial

Similar Products

Model Number	Tube Size	Materials	Temperature Range	I.D.	Width (E)	O.D.
22617-10 ORB Fitting/Adapter O-Ring	0.625	Buna-N (90 durometer)	-30 to +250	0.755 in	0.097	0.949 in
22617-12 ORB Fitting/Adapter O-Ring	0.75	Buna-N (90 durometer)	-30 to +250	0.924 in	0.116	1.156 in
22617-16 ORB Fitting/Adapter O-Ring	1	Buna-N (90 durometer)	-30 to +250	1.171 in	0.116	1.403 in
22617-4 ORB Fitting/Adapter O-Ring	0.25	Buna-N (90 durometer)	-30 to +250	0.351 in	0.072	0.495 in
22617-6 ORB Fitting/Adapter O-Ring	0.375	Buna-N (90 durometer)	-30 to +250	0.468 in	0.078	0.624 in
22617-8 ORB Fitting/Adapter O-Ring	0.5	Buna-N (90 durometer)	-30 to +250	0.644 in	0.087	0.818 in
568-904 ORB Fitting/Adapter O-Ring	0.25	Buna-N (90 durometer)	-30 to +250	0.351 in	0.072	0.495 in
568-912 ORB Fitting/Adapter O-Ring	0.75	Buna-N (90 durometer)	-30 to +250	0.924 in	0.116	1.156 in
22617-5 ORB Fitting/Adapter O-Ring	0.3125	Buna-N (90 durometer)	-30 to +250	0.414 in	0.072	0.558 in
B-903 ORB Fitting/Adapter O-Ring	0.188	Buna-N (90 durometer)	-30 to +250	0.301 in	0.064	0.429 in
568-906 ORB Fitting/Adapter O-Ring	0.375	Buna-N (90 durometer)	-30 to +250	0.468 in	0.078	0.624 in
568-908 ORB Fitting/Adapter O-Ring	0.5	Buna-N (90 durometer)	-30 to +250	0.644 in	0.087	0.818 in
568-910 ORB Fitting/Adapter O-Ring	0.625	Buna-N (90 durometer)	-30 to +250	0.755 in	0.097	0.949 in
B-914 ORB Fitting/Adapter O-Ring	0.875	Buna-N (90 durometer)	-30 to +250	1.047 in	0.116	1.279 in
B-920 ORB Fitting/Adapter O-Ring	1.25	Buna-N (90 durometer)	-30 to +250	1.475 in	0.118	1.711 in
B-924 ORB Fitting/Adapter O-Ring	1.5	Buna-N (90 durometer)	-30 to +250	1.72 in	0.118	1.956 in

Product Questions & Answers (3)

Question by: Howard R on Jan 24, 2026, 7:56 PM

got a straight thread SAE ORB fitting for 1 inch tube. is this the right o-ring size to swap in?

Answer by: Customer Support on Jan 26, 2026, 11:43 AM

For a 1 inch tube size SAE O-Ring Boss straight thread setup, this is the matching O-ring style. It is Buna-N at 90 durometer with a 1.171 inch ID, 1.403 inch OD, and 0.116 inch width.

Question by: Johnny H on May 6, 2025, 8:42 PM

Just want to make sure this'll fit my fitting... It's a 1 inch.

Answer by: Customer Support on May 8, 2025, 8:01 AM

This O-ring is specifically sized for SAE O-Ring Boss (Straight Thread O-Ring) fittings and adapters that are 1.00 inch.

Question by: Gene J on Feb 23, 2026, 5:36 PM

what temp range is this o-ring good for? got some fittings running pretty warm and wanna make sure it'll hold up

Answer by: Customer Support on Feb 25, 2026, 6:54 AM

Buna-N at 90 durometer handles a range of -30 to +250 degrees Fahrenheit, so moderate heat from standard hydraulic system operation falls well within that window. As long as your fittings aren't pushing past that upper limit, you're in good shape.
