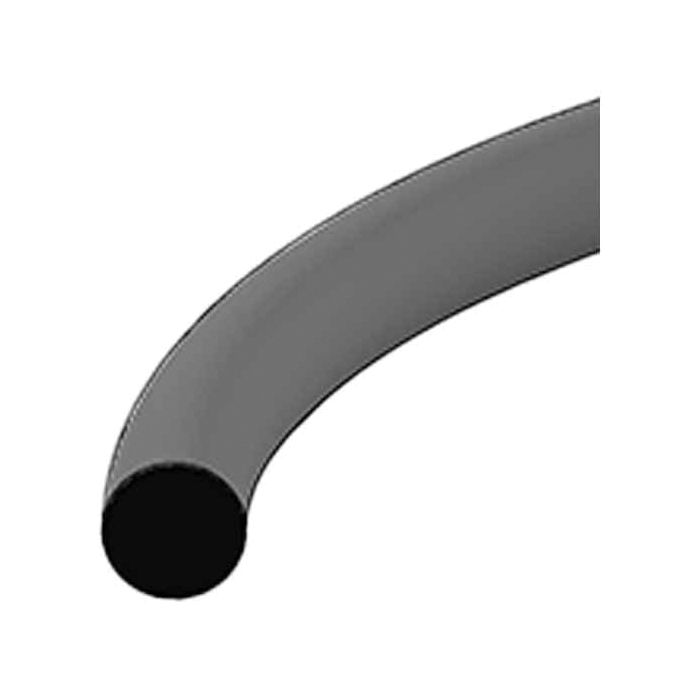

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 1.25 Inch

Description & Features

Manufactured by Hercules Sealing Products, this Buna-N o-ring is rated at 90 durometer for firm compression resistance in high-pressure hydraulic connections. The material performs across a temperature range of -30°F to +250°F, making it suitable for a broad range of hydraulic and fluid power applications. With an inner diameter of 1.475 inches, an outer diameter of 1.711 inches, and a cross-section width of 0.118 inches, this seal is sized for the O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 1.25 Inch configuration. It is designed to provide a reliable static or dynamic seal at straight-thread boss ports and adapter connections commonly found in hydraulic circuits and industrial fluid systems.

SKU: B-920

Supplier Part Number (MPN): 568-920

Alternate Part Numbers: A-920, C1CL36

Specifications

Brand HERCULES® SEALING PRODUCTS	Color Black	Cross Section Shape Round	Dash Size 920	Durometer 90	Inside Diameter 1.476 in	Material Buna-N	Series 568 Series	Suitable For Use With High-Pressure Straight Thread Fittings, Hydraulic Cylinders	System of Measurement Imperial

Similar Products

Model Number	Tube Size	Materials	Temperature Range	I.D.	Width (E)	O.D.
22617-10 ORB Fitting/Adapter O-Ring	0.625	Buna-N (90 durometer)	-30 to +250	0.755 in	0.097	0.949 in
22617-12 ORB Fitting/Adapter O-Ring	0.75	Buna-N (90 durometer)	-30 to +250	0.924 in	0.116	1.156 in
22617-16 ORB Fitting/Adapter O-Ring	1	Buna-N (90 durometer)	-30 to +250	1.171 in	0.116	1.403 in
22617-4 ORB Fitting/Adapter O-Ring	0.25	Buna-N (90 durometer)	-30 to +250	0.351 in	0.072	0.495 in
22617-6 ORB Fitting/Adapter O-Ring	0.375	Buna-N (90 durometer)	-30 to +250	0.468 in	0.078	0.624 in
22617-8 ORB Fitting/Adapter O-Ring	0.5	Buna-N (90 durometer)	-30 to +250	0.644 in	0.087	0.818 in
568-904 ORB Fitting/Adapter O-Ring	0.25	Buna-N (90 durometer)	-30 to +250	0.351 in	0.072	0.495 in
568-912 ORB Fitting/Adapter O-Ring	0.75	Buna-N (90 durometer)	-30 to +250	0.924 in	0.116	1.156 in
B-916 ORB Fitting/Adapter O-Ring	1	Buna-N (90 durometer)	-30 to +250	1.171 in	0.116	1.403 in
22617-5 ORB Fitting/Adapter O-Ring	0.3125	Buna-N (90 durometer)	-30 to +250	0.414 in	0.072	0.558 in
B-903 ORB Fitting/Adapter O-Ring	0.188	Buna-N (90 durometer)	-30 to +250	0.301 in	0.064	0.429 in
568-906 ORB Fitting/Adapter O-Ring	0.375	Buna-N (90 durometer)	-30 to +250	0.468 in	0.078	0.624 in
568-908 ORB Fitting/Adapter O-Ring	0.5	Buna-N (90 durometer)	-30 to +250	0.644 in	0.087	0.818 in
568-910 ORB Fitting/Adapter O-Ring	0.625	Buna-N (90 durometer)	-30 to +250	0.755 in	0.097	0.949 in
B-914 ORB Fitting/Adapter O-Ring	0.875	Buna-N (90 durometer)	-30 to +250	1.047 in	0.116	1.279 in
B-924 ORB Fitting/Adapter O-Ring	1.5	Buna-N (90 durometer)	-30 to +250	1.72 in	0.118	1.956 in
