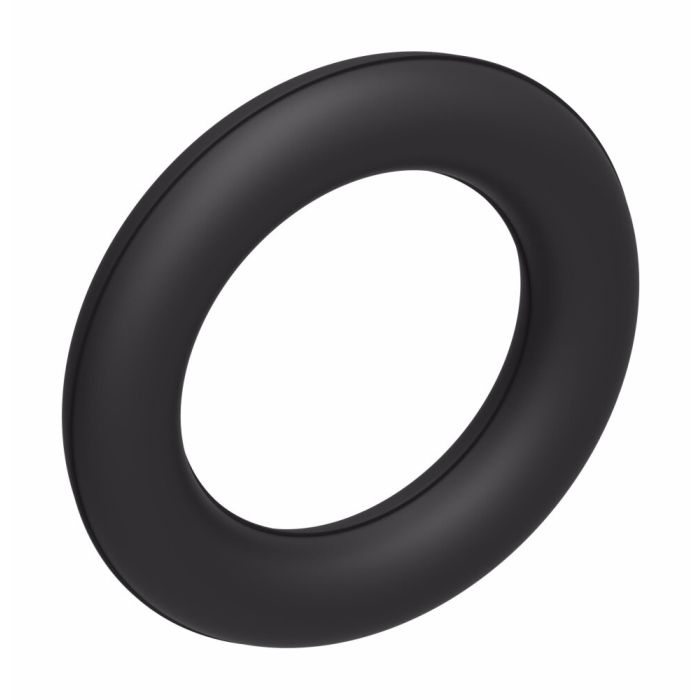

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.50 Inch

Ask A Question

Description & Features

Ideal for ensuring robust sealing in industrial applications, this O-Ring is designed for O-Ring face seal fittings and adapters with a tube size of 0.5 inches. Manufactured by Danfoss Power Solutions (II LLC Aeroquip), this component boasts high-quality construction from Buna-N material with a 90 durometer hardness, offering reliable performance in demanding environments.

Engineered to operate efficiently within temperature ranges from -40 to +250 degrees Fahrenheit, it provides a dependable sealing solution under varying conditions. The internal diameter measures 0.489 inches, while the outer diameter is 0.629 inches, ensuring a precise fit in your equipment. It is classified under ECCN: EAR99.

Particularly suited for applications requiring high resistance to oil, fuel, and other industrial fluids, this O-Ring is a vital component for maintaining system integrity. Its width is specified at 0.07 inches, with no need for additional thread sealant.

**MPN:** C1CV52

**Supplier Part Number:** FF9446-14

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
I.D.
0.489 in
Materials
Buna-N (90 durometer)
O.D.
0.629 in
Supplier Part Number
FF9446-14
Temperature Range
-40 to +250
Thread Sealant
No
Tube Size
0.50
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1CV52, Alternate Part Number MI-00443998, Alternate Part Number MINO-00015I00548, Alternate Part Number ORS-8

Related Documents

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Action
O-Ring for O-Ring Face Seal Fittings & Adapters, 0.25 Inch

FF9446-11 ORS Fitting/Adapter O-Ring

0.25

Buna-N (90 durometer)

-40 to +250

0.301 in

0.07

0.441 in

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.38 Inch

FF9446-12 ORS Fitting/Adapter O-Ring

0.375

Buna-N (90 durometer)

-40 to +250

0.364 in

0.07

0.504 in

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.50 Inch

FF9446-14 ORS Fitting/Adapter O-Ring

0.5

Buna-N (90 durometer)

-40 to +250

0.489 in

0.07

0.629 in

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.63 Inch

FF9446-16 ORS Fitting/Adapter O-Ring

0.63

Buna-N (90 durometer)

-40 to +250

0.614 in

0.07

0.754 in

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.75 Inch

FF9446-18 ORS Fitting/Adapter O-Ring

0.75

Buna-N (90 durometer)

-40 to +250

0.739 in

0.07

0.879 in

O-Ring for O-Ring Face Seal Fittings & Adapters, 1.00 Inch

FF9446-21 ORS Fitting/Adapter O-Ring

1

Buna-N (90 durometer)

-40 to +250

0.926 in

0.07

1.066 in

O-Ring for O-Ring Face Seal Fittings & Adapters, 1.25 Inch

FF9446-25 ORS Fitting/Adapter O-Ring

1.25

Buna-N (90 durometer)

-40 to +250

1.176 in

0.07

1.316 in

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.25 Inch

22546-11 ORS Fitting/Adapter O-Ring

0.25

Neoprene (72 durometer)

-65 to +300

0.301 in

0.07

0.441 in

Product Questions & Answers (2)

Question by: Johnny C on Feb 6, 2026, 8:58 PM
got a 1/2 inch tube size ORFS fitting, is this the right o-ring for it?
Answer by: Customer Support on Feb 8, 2026, 8:08 PM
For a 0.5 inch tube size O-Ring Face Seal setup, this matches that size callout and it is a Buna-N o-ring at 90 durometer. The dimensions on it are 0.489 inch ID, 0.629 inch OD, and 0.07 inch width.
Question by: Dale F on Jan 12, 2026, 8:37 AM
what material is this o-ring made from and can it handle hydraulic oil without breaking down
Answer by: Customer Support on Jan 14, 2026, 8:56 AM
Buna-N rubber at 90 durometer hardness is what you're working with here. That compound holds up well against oil, fuel, and the kind of industrial fluids you'd run through a hydraulic system. The 90 durometer rating means it's on the firmer side, which helps it maintain its shape under pressure rather than deforming over time in a face seal application.
