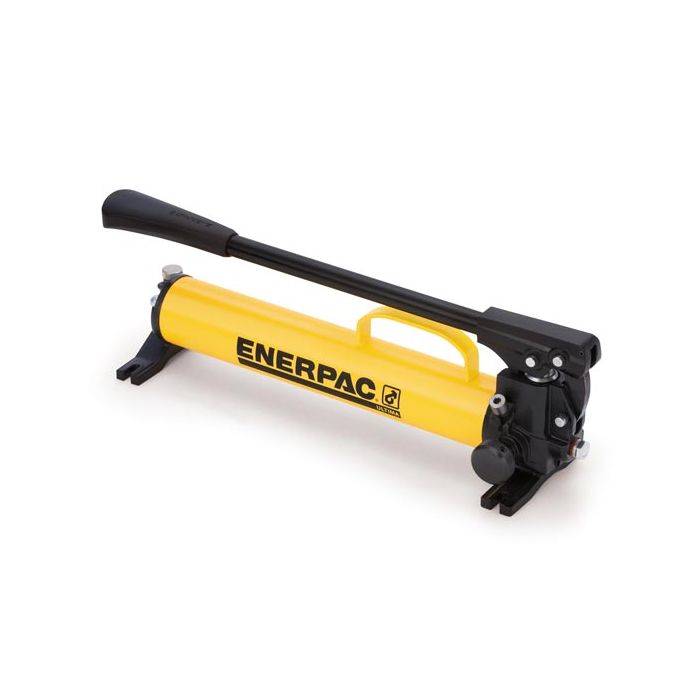

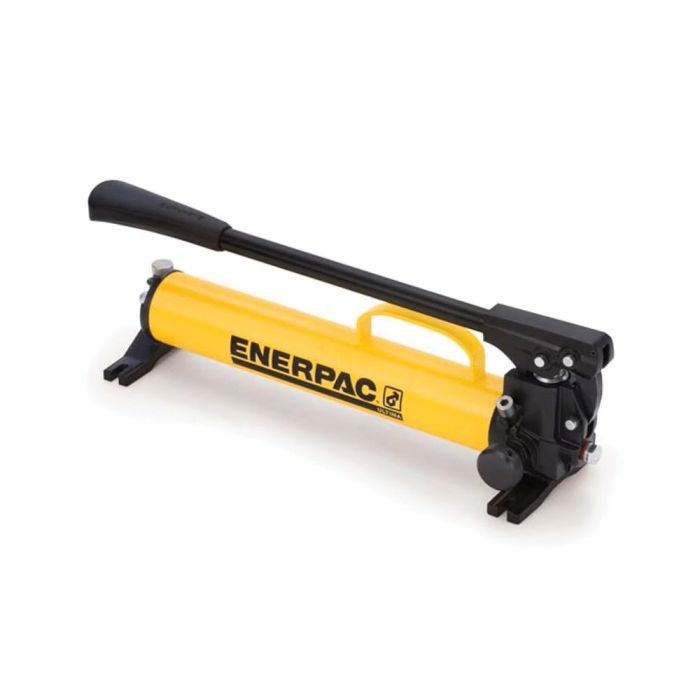

Two Speed, ULTIMA Steel Hydraulic Hand Pump, 41 in3 Usable Oil

Description & Features

Enerpac's Two Speed, ULTIMA Steel Hydraulic Hand Pump offers a 41 in3 usable oil capacity. This hydraulic hand pump is designed for durability and efficient two-speed functionality in demanding industrial environments.

The Enerpac P77 hand pump offers reliable performance for a range of hydraulic applications.

SKU: P-77

Supplier Part Number (MPN): P77

Alternate Part Numbers: MI-03689633, MINO-00284X33655

Specifications

Brand
ENERPAC®
Cylinder Type
Single-Acting
Dimensions
21.63 in L x 5.51 in W x 6.39 in H
Displacement
1 cu-in, 0.15 cu-in
Housing Material
Steel
Inlet Type
NPTF
Maximum Operating Pressure
10000 psi
Outlet Type
NPTF
Pump Type
Two-Speed
Series
ULTIMA Series

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Dwayne T on Jul 14, 2025, 5:00 PM
trying to cut down on handle strokes. is this P77 one of them two speed pumps that shifts on its own?
Answer by: Customer Support on Jul 15, 2025, 6:52 PM
On the P77 you get a 2 stage hand pump that automatically switches from the high flow first stage to the low flow, high pressure second stage. That setup is meant to move a cylinder up to load contact quicker, then build pressure, and it can reduce handle strokes by as much as 78 percent versus a single speed pump.
Question by: Hubert R on Mar 20, 2026, 10:49 AM
how much oil does this pump hold, and is 41 cubic inches gonna be enough to run more than one cylinder at a time?
Answer by: Customer Support on Mar 21, 2026, 5:03 PM
At 41 in3 of usable oil, it sits on the smaller end of the P-Series range. Running multiple cylinders is possible, but the total oil demand of your cylinders combined needs to stay within that capacity. If you're moving larger bores or need extended stroke travel across several cylinders, you'd likely want to step up to a higher-capacity model in the same series. For single-cylinder work or lighter multi-cylinder setups with modest oil demand, 41 in3 gets the job done fine.
