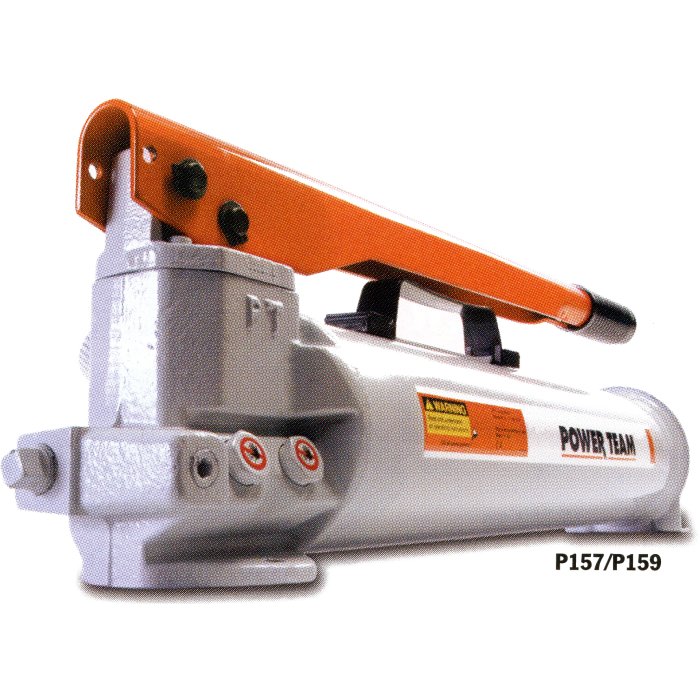

P Series Two-Speed Single/Double Acting Hand Pump, Outlet Port, ci/stroke (LP/HP), Up To 325 / 10,000 PSI (LP/HP)

Designed for applications where there is little or no free travel, this two-speed pump delivers low-pressure output up to 325 PSI for rapid cylinder advance and automatically shifts to high-pressure output up to 10,000 PSI for full load force. The P Series Two-Speed Single/Double Acting Hand Pump is compatible with single acting cylinders and operates with a handle effort of 140 lb.

All-metal construction provides strength and durability suited to demanding environments, including those involving welding activity. The heavy-duty formed metal handle reduces flex and operator fatigue during extended use. A large valve knob allows precise metering of loads, while a relief valve positioned inboard of the check valve prevents load drift. The fill cap seal doubles as a safety valve to guard against reservoir over-pressurization.

Overall dimensions are 7.75 x 20.50 x 22.75 inches, with a 3.75-inch measurement at dimension L. Standard hydraulic fluid is included.

SKU: P159

Supplier Part Number (MPN): P159

Alternate Part Numbers: C1JP93, MI-03760996, MINO-00630X15079
