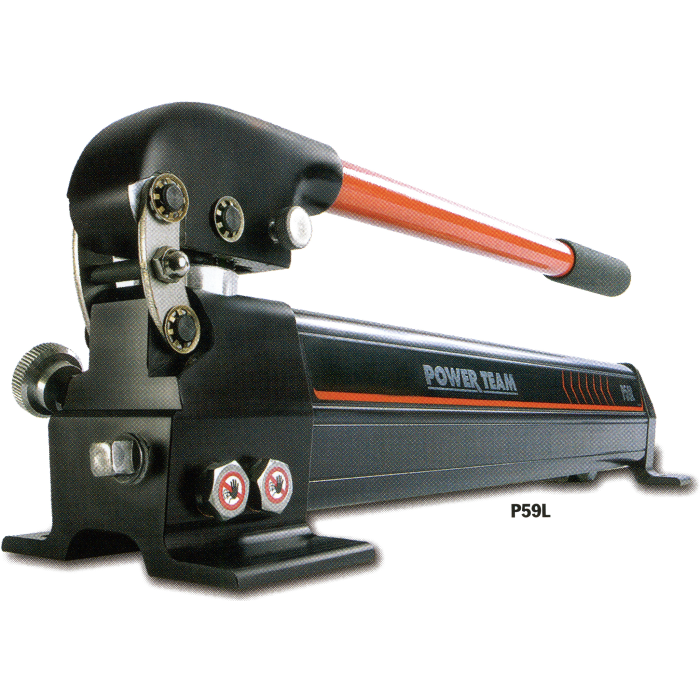

P Series Two-Speed Single Acting Hand Pump, Outlet Port, ci/stroke (LP/HP), Up To 325 / 10,000 PSI (LP/HP)

Description & Features

This SPX High Force Hydraulics product, the P Series Two-Speed Single Acting Hand Pump, provides up to 325 PSI in low pressure mode and 10,000 PSI in high pressure mode. Its two-speed design reduces handle strokes for faster and easier operation.

Features include all-metal construction, a formed metal handle, and a convenient fill port. The large valve knob offers added control for metering loads down, while the true unloading valve is set for 850 PSI. This model features more usable oil volume for use with larger cylinders, and a link design that reduces handle effort by 40%. Dimensions: A=5.50, B=14.63, E=13.69, L=4.00.

SKU: P19

Supplier Part Number (MPN): P19

Alternate Part Numbers: C1JP95

Specifications

Dimensions A=5.50 B=14.63 E=13.69 L=4.00	Brand HYDRAULIC TECH USA LLC(SPX)	Brand Hydraulic Tech USA	Pack Size 1.00	UOM EA	For Use With Single Acting Cylinders	Handle Effort 99	Maximum Pressure (psi) LP/HP 325 / 10,000	Alternate Part Numbers Alternate Part Number C1JP95	Supplier Part Number P19	Product Weight 6.60 lbs

Similar Products

Model Number	For Use With	Maximum Pressure (psi) LP/HP	Handle Effort	Dimensions
P19 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	99	A=5.50 B=14.63 E=13.69 L=4.00
P19L P Series Two-Speed Hand Pump	Single Acting Cylinders	850 / 10,000	78	A=5.50 E=13.69
P59 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	145	A=7.00 B=21.00 E=23.00 L=4.75
P59L P Series Two-Speed Hand Pump	Single Acting Cylinders	850 / 10,000	104	A=7.00 E=21.00

Product Questions & Answers (2)

Question by: Roger H on Oct 26, 2025, 8:38 PM

got a single-acting cylinder on a little press. will this hand pump run it, or is it for something else

Answer by: Customer Support on Oct 27, 2025, 8:54 PM

For single acting cylinders, this pump is a match. It is a two speed, single acting hand pump that automatically shifts into the high pressure stage when it hits the load, with up to 325 PSI in low pressure mode and up to 10,000 PSI in high pressure mode.

Question by: Tammy C on Mar 27, 2026, 8:53 PM

pump shifts into high pressure on its own, or do you gotta manually switch it over?

Answer by: Customer Support on Mar 29, 2026, 3:19 PM

Automatic on this one. Once the pump makes contact with the load, it shifts itself into the high pressure stage without you doing anything. Low pressure gets you there fast, and then it transitions up to handle the actual lifting. No levers to flip or knobs to turn for that part of the operation.
