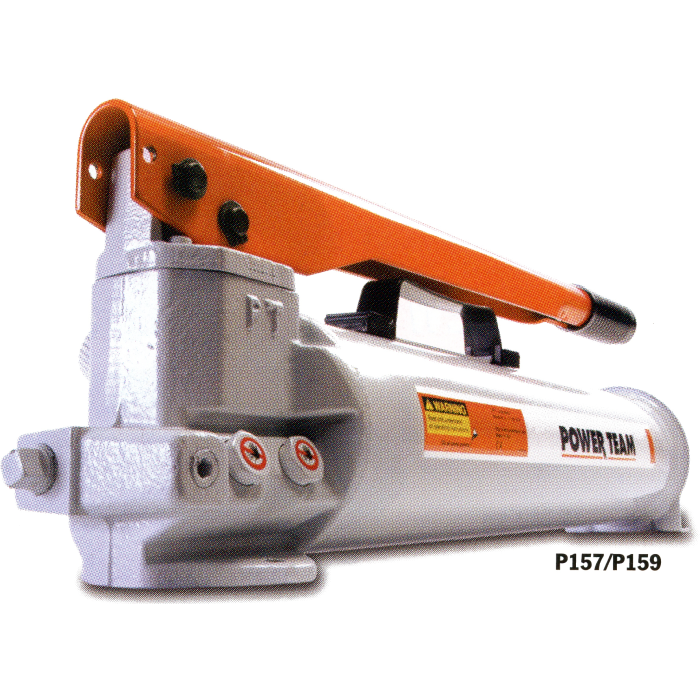

P Series Two-Speed Single/Double Acting Hand Pump, Outlet Port, ci/stroke (LP/HP), Up To 325 / 10,000 PSI (LP/HP)

Description & Features

This SPX Hydraulic Technologies hand pump is a two-speed, single- or double-acting hydraulic pump designed for applications with limited free travel.

The P Series Two-Speed Single/Double Acting Hand Pump features rugged, all-metal construction for strength and durability, even in welding environments. Its heavy-duty, formed metal handle reduces flex and operator fatigue, while the fill cap seal acts as a safety valve to prevent reservoir over-pressurization. The large valve knob provides added control for metering loads down.

This hand pump offers a maximum pressure of 325 PSI in low pressure mode and 10,000 PSI in high pressure mode. It requires a handle effort of 140. Dimensions: A=8.25, B=21.00, E=22.63, F=8.50.

SKU: P300

Supplier Part Number (MPN): P300

Alternate Part Numbers: C1JP98

Specifications

Dimensions A=8.25 B=21.00 E=22.63 F=8.50	Brand HYDRAULIC TECH USA LLC(SPX)	Brand Hydraulic Tech USA	Pack Size 1.00	UOM EA	For Use With Single Acting Cylinders	Handle Effort 140	Maximum Pressure (psi) LP/HP 325 / 10,000	Alternate Part Numbers Alternate Part Number C1JP98	Supplier Part Number P300	Product Weight 60.00 lbs

Similar Products

Model Number	For Use With	Maximum Pressure (psi) LP/HP	Handle Effort	Dimensions
P159D P Series Two-Speed Hand Pump	Double Acting Cylinders	325 / 10,000	140	A=7.75 B=20.50 E=22.75 L=3.75
P300 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	140	A=8.25 B=21.00 E=22.63 F=8.50
P460 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	90	A=11.13 B=31.00 E=24.00 F=29.25
P460D P Series Two-Speed Hand Pump	Double Acting Cylinders	325 / 10,000	90	A=11.13 B=31.00 E=24.00 F=29.25
P159 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	140	A=7.75 B=20.50 E=22.75 L=3.75

Product Questions & Answers (2)

Question by: Ricky W on Jul 16, 2025, 2:06 PM

What's the deal with that fill cap seal? Is it just to keep crud out of the oil, or does it do more than that?

Answer by: Customer Support on Jul 17, 2025, 5:13 PM

That fill cap seal actually doubles as a safety valve. It's there to keep the reservoir from getting over-pressurized.

Question by: Scott R on Dec 22, 2025, 8:37 AM

got a job where there ain’t much free travel before it starts working. is this P300 the kind of hand pump meant for that?

Answer by: Customer Support on Dec 23, 2025, 8:58 PM

For setups with little or no free travel, the P Series two speed hand pump is called out as a good fit. It also has an all metal build and a formed metal handle to cut down on flex and operator fatigue.
