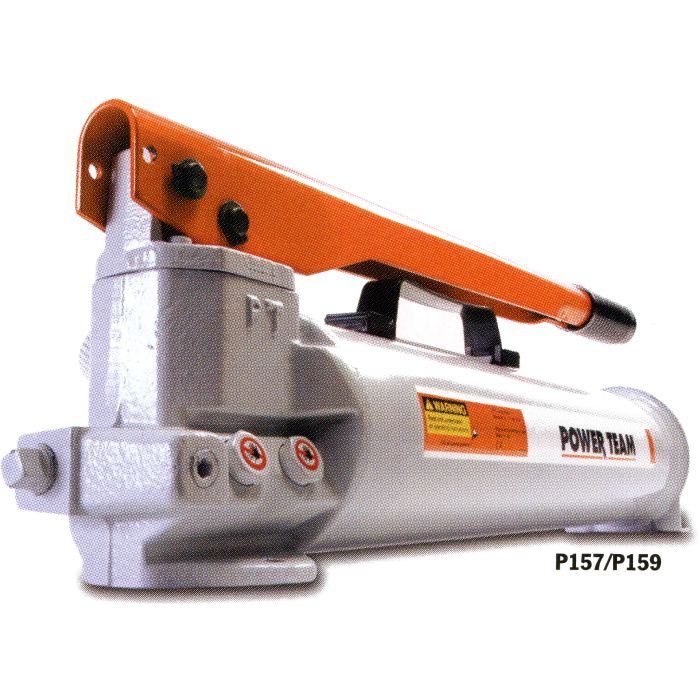

P Series Two-Speed Single/Double Acting Hand Pumps, Up To 577 cu in Reservoir

Description & Features

Group Description

Best suited for applications where there is little or no free travel.

Features

Rugged all metal construction for strength and durability that won’t burn through in welding environments • Heavy-duty, formed metal handle provides less flex, and less operator fatigue than round or composite handles • Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position • Fill cap seal acts as safety valve to prevent over-pressurizing of reservoir • Relief valve inboard of check valve prevents loads from drifting down • Large valve knob gives added control for slowly metering loads down • Standard type hydraulic fluid is included.

Products

Model Number	For Use With	Maximum Pressure (psi) LP/HP	Handle Effort	Dimensions
P159D P Series Two-Speed Hand Pump	Double Acting Cylinders	325 / 10,000	140	A=7.75 B=20.50 E=22.75 L=3.75
P300 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	140	A=8.25 B=21.00 E=22.63 F=8.50
P460 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	90	A=11.13 B=31.00 E=24.00 F=29.25
P460D P Series Two-Speed Hand Pump	Double Acting Cylinders	325 / 10,000	90	A=11.13 B=31.00 E=24.00 F=29.25
P159 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	140	A=7.75 B=20.50 E=22.75 L=3.75
