P Series Two-Speed Single Acting Hand Pumps, Up To 69 cu in Reservoir

Description & Features

Group Description	Pump automatically shifts into the high pressure lift stage upon contact with the load.
Features	All metal construction won't burn through in welding environments • Two-speed reduces handle strokes so you work faster and easier • Formed metal handle provides less flex, and reduces operator fatigue • Convenient fill port allow pumps to be filled in a horizontal or vertical position • Relief valve inboard of check valve prevents loads from drifting down • Large valve knob gives added control for slowly metering loads down • Standard type hydraulic fluid is included.
P19L & P59L Models	More usable oil volume — use with larger or longer stroke cylinders • True unloading valve set for 850 PSI provides more efficiency and lower handle force • Link design reduces handle effort by 40% • Durable aluminum reservoir, manifold, and end cap • Ergonomic non-slip handle grip provides more comfort • Spring loaded handle lock incorporated into handle.

Model Number	For Use With	Maximum Pressure (psi) LP/HP	Handle Effort	Dimensions
P19 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	99	A=5.50 B=14.63 E=13.69 L=4.00
P19L P Series Two-Speed Hand Pump	Single Acting Cylinders	850 / 10,000	78	A=5.50 E=13.69
P59 P Series Two-Speed Hand Pump	Single Acting Cylinders	325 / 10,000	145	A=7.00 B=21.00 E=23.00 L=4.75

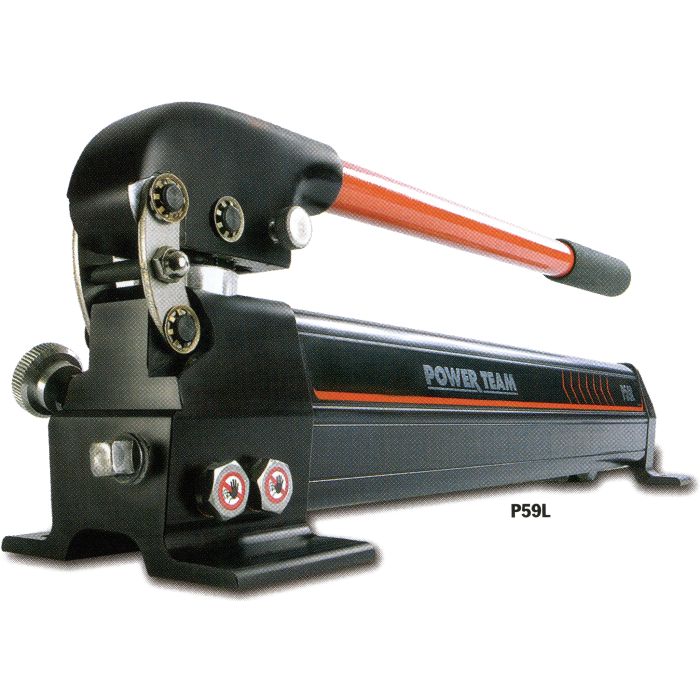

P59L P Series Two-Speed Hand Pump	Single Acting Cylinders	850 / 10,000	104	A=7.00 E=21.00
