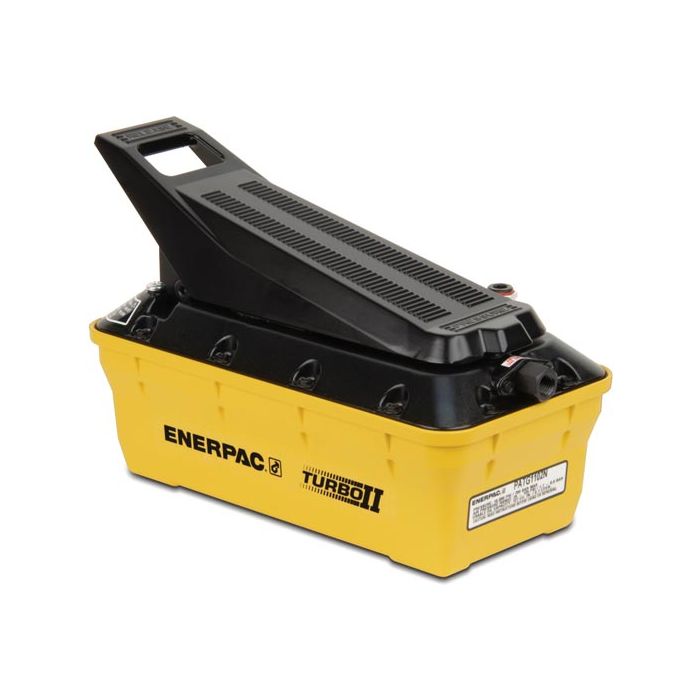

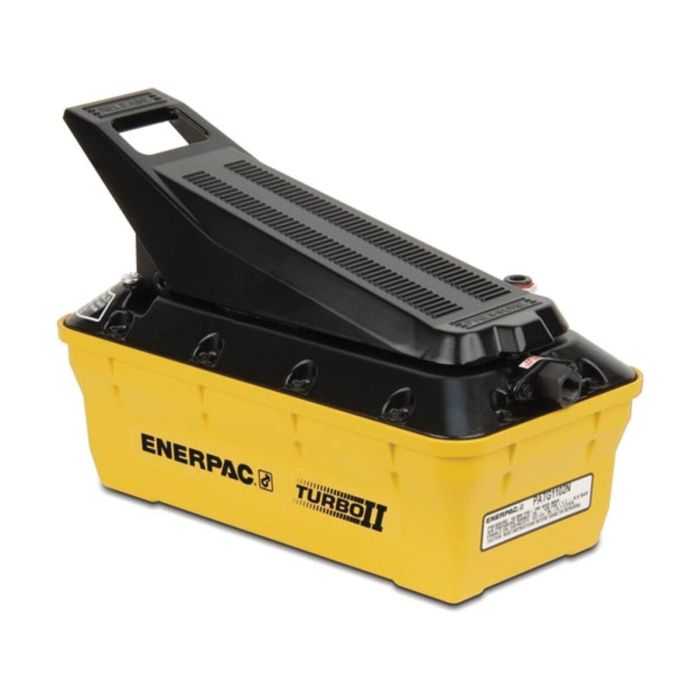

main product photo

Enerpac | Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders | PATG1102N

Ask A Question

Description & Features

Designed for reliability and efficiency, the Enerpac Turbo II Air Hydraulic Pump is ideal for medium and lower cycle applications. This pump features a 3/3 treadle valve, enabling convenient hand or foot operation. With a reservoir capacity of 127 in³ (2,081 cm³) and a maximum operating pressure of 10,000 psi (700 bar), it delivers the power needed for single-acting cylinders and simple clamping circuits.

The Turbo II series is engineered with a high-efficiency cast aluminum air motor, offering increased durability and reduced air consumption. The innovative Air Saver Piston further enhances efficiency by minimizing air usage and operational costs. Operating at a quiet 75 dBA, these pumps are suitable for environments where noise reduction is essential. Additionally, the internal pressure relief valve provides essential overload protection, ensuring safe and consistent performance.

SKU: PATG-1102N

Supplier Part Number (MPN): PATG1102N

Alternate Part Numbers: 91212553, C1DG66, C1JG35, PAT-1102N, PAT1102N

Specifications

Brand
Enerpac
Brand
Enerpac
Pack Size
1.00
UOM
EA
Max Operating Pressure
10,000 psi (700 bar)
Product Type
HydraulicPump
Reservoir Capacity
127 in³ (2,081 cm³)
Series
PATG
Subtype
Air Pump
Weight
18 lbs (8.2 kg)
Supplier Part Number
PATG1102N
Product Weight
17.00 lbs

Related Documents

Product Questions & Answers (2)

Question by: Dustin E on Oct 16, 2025, 7:29 PM
pump says it works off shop air, what's the pressure range it'll actually run on? got an older compressor that don't always hit 125 psi
Answer by: Customer Support on Oct 18, 2025, 7:11 AM
Anywhere from 40 to 125 psi will get this pump running, so an older compressor that runs a little lean shouldn't be a dealbreaker. It's built to start at low inlet pressures, which makes it more forgiving than a lot of air-over-hydraulic setups. Even at the low end of that range you'll get usable hydraulic output, though cycle speed will naturally be quicker once your air supply climbs higher.
Question by: Harvey P on Mar 29, 2026, 9:11 PM
need a pump for a single-acting cylinder. is this PATG-1102N the right style or is it more for double acting stuff?
Answer by: Customer Support on Mar 31, 2026, 1:12 PM
For single acting work, the PATG-1102N is a fit. It is a Turbo II air over hydraulic pump set up for single-acting cylinders and it includes a 3-way, 3-position valve that gives you Advance, Hold, and Retract.
