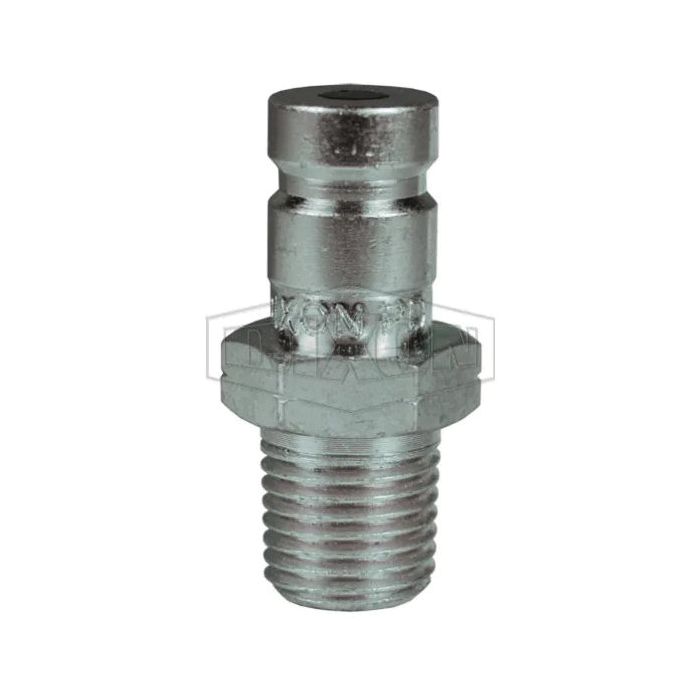

main product photo

1/8 Diagnostic Nipple, 9/16 ORB Steel (1

Ask A Question

Description & Features

Designed for precise diagnostic applications, this 1/8 Diagnostic Nipple with a 9/16 ORB connection is crafted from high-quality steel, offering durability and reliability in demanding industrial environments. Ideal for hydraulic systems, the nipple ensures secure connections, facilitating accurate pressure readings and system diagnostics.

Manufactured by Dixon Valve & Co, this component is a staple in hydraulic maintenance, providing compatibility with a range of systems. Its robust steel construction withstands rigorous conditions, making it suitable for high-pressure applications. The 9/16 ORB threading ensures a tight seal, reducing the risk of leaks and enhancing system integrity.

SKU: PD1OM3

Supplier Part Number (MPN): PD1OM3

Specifications

Brand
DIXON
Connection Size 1
1/8 in
Connection Size 2
9/16 in
Connection Type
Male ORB, Quick-Disconnect
Connection Type 1
Quick Disconnect
Connection Type 2
Male ORB
Dimensions
0.76 in OD x 1.48 in L
Finish
Trivalent Chrome-Plated
Fitting Type
Plug
Hex Size
17 mm
Material
Steel
Material Construction
Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
PD Series
Thread Size
9/16-18

Product Questions & Answers (1)

Question by: Hubert A on Dec 25, 2025, 5:34 PM
If I'm hooking this nipple up in a hydraulic system, what kind of pressure should I expect it to handle?
Answer by: Customer Support on Dec 26, 2025, 9:32 PM
This diagnostic nipple is best suited for providing secure connections and facilitating accurate pressure readings within hydraulic systems. Its robust steel construction is designed to withstand rigorous conditions often found in high-pressure applications.
