PE17 Series Single-Phase 2-Speed Pumps

Description & Features

Current Draw @ 10,000 PSI	10 amps @ 115VAC.
Group Description	For maintenance and construction applications.
Features	For use with single-acting or double-acting cylinders at operating pressures to 10,000 psi • For intermittent duty; starts under full load • Equipped with 1?2 hp, 3,450 rpm, singlephase, thermal protected induction motor; 10 ft. remote control cord (PE172S has 25 ft. cord) • Low amperage draw; small generators and low amperage circuits can be used as power source • Extremely quiet noise level (67-81 dBA) • Standard type hydraulic fluid is included.
Flow Rating	290in³/min @ 0 PSI, 190in³/min @ 100 PSI, 20in³/min @ 5,000 PSI, 16in³/min @ 10,000 PSI.
Maximum Pressure Output	10,000 PSI.

Model Number	For Use With	Product Description	Function	Control	Dimensions

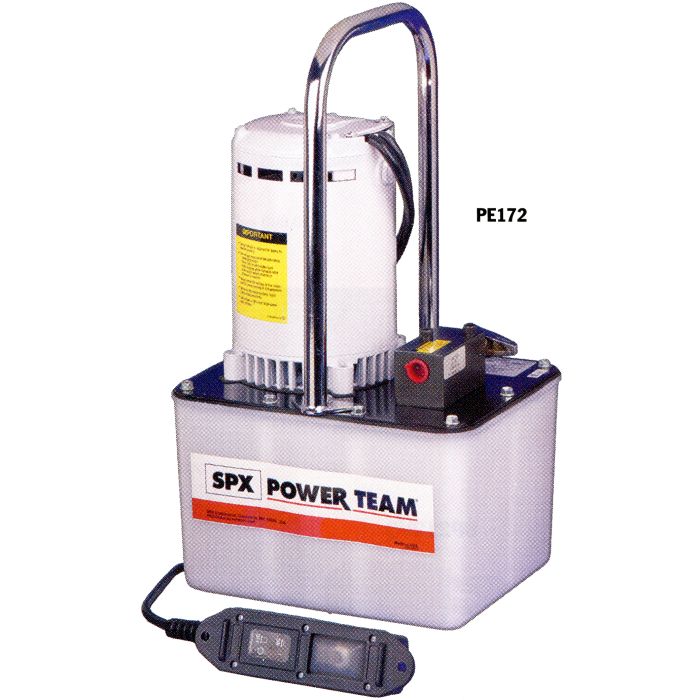

PE172 PE17 Series 2-Speed Pump	Single Acting Cylinders	SPX PWR TEAM PWR UNIT	Pump on to extend, off to hold, off & manually shift valve to return	Remote On-Off Motor Control (115VAC), 10 ft	11.38L x 9.25W x 18.50H
PE172-50-220 PE17 Series 2-Speed Pump	Single Acting Cylinders	SPX PUMP WITH 2 GALLON THERMOPLASTIC RES	Pump on to extend, off to hold, off & manually shift valve to return	Remote On-Off Motor Control (24VDC), 10 ft	11.38L x 9.25W x 18.50H
PE174-50-220 PE17 Series 2-Speed Pump	Single & Double Acting Cylinders	SPX ELECTRIC PUMP 220V	Pump on, manually shift valve to extend or retract, manually shift valve to hold	Remote On-Off Motor Control (24VDC), 10 ft	11.38L x 9.25W x 18.50H
