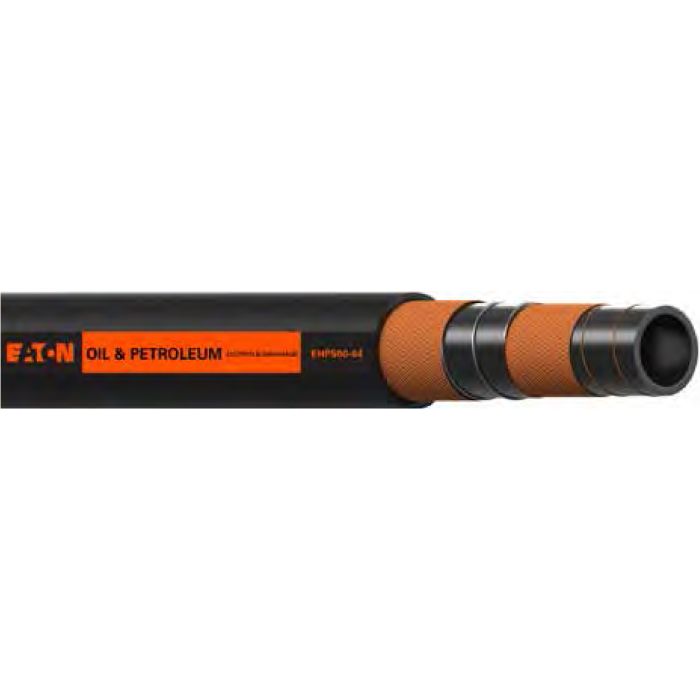

Petroleum/Oil Suction & Discharge Hose

Description & Features

Application	For suction and discharge of petroleum products. Please review application requirements and limitations found in
CAUTION	For use with petroleum products with aromatic content up to 50%
Construction	NBR blend tube; High-tensile synthetic textile with a single steel helical wire and anti-static copper wire reinforcement; NBR blend cover.
Fittings	Cam and Groove. Combination Nipples
Fittings & Fitting Attachment Suggestions	• Cam and groove • Combination nipple
Temperature Range	-13°F to +158°F

Model Number	Color	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
PETRO-S&D-32 Petroleum/Oil S & D Hose	Black	2	2.48	150		9.84	28	200
PETRO-S&D-48 Petroleum/Oil S & D Hose	Black	3	3.5	150		14.96	28	200
PETRO-S&D-64 Petroleum/Oil S & D Hose	Black	4	4.61	150	450	20.08	28	200
PETRO-S&D-16 Petroleum/Oil S & D Hose	Black	1	1.44	150		4.33	28	200
PETRO-S&D-20 Petroleum/Oil S & D Hose	Black	1.25	1.69	150		5.51	28	200
PETRO-S&D-24 Petroleum/Oil S & D Hose	Black	1.5	1.93	150		6.69	28	200
PETRO-S&D-40 Petroleum/Oil S & D Hose	Black	2.5	3.03	150		12.2	28	200
PETRO-S&D-96 Petroleum/Oil S & D Hose	Black	6	6.69	150		31.1	28	200
