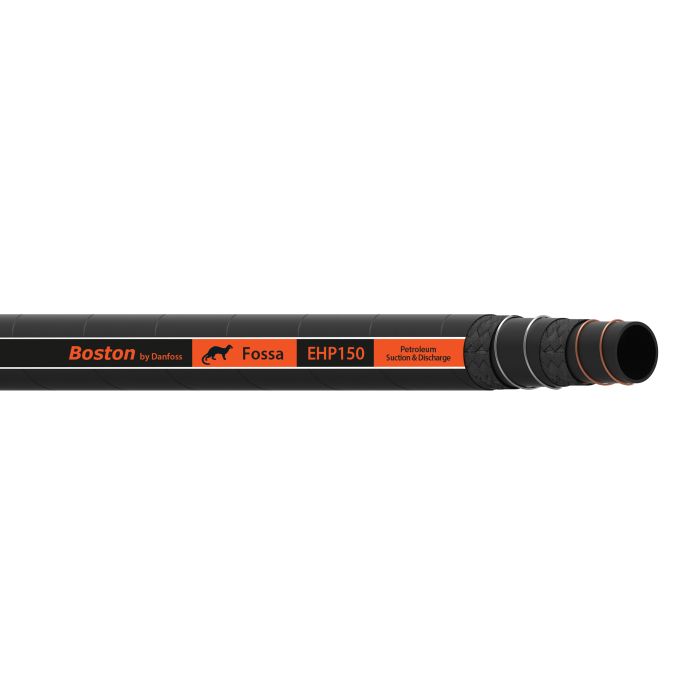

Petroleum/Oil Suction & Discharge Hose, Black, 3.03 Inch OD, 2.50 Inch ID, Up To 150.00 PSI

Description & Features

The Petroleum/Oil Suction & Discharge Hose is tailored for the suction and discharge of petroleum products. Engineered with a nitrile blend tube and cover this hose delivers consistent performance in various conditions. Its robust construction includes high-tensile synthetic textile reinforcement with a single steel helical wire and anti-static copper wire for reliability.

With a 3.03-inch OD and 2.5-inch ID it supports a maximum operating pressure of 150 PSI ensuring durability. This hose is suitable for temperatures ranging from -13F to +158F. Featuring a flexible design with a minimum bend radius of 12.2 inches it allows for efficient installation and maneuverability.

It offers robust vacuum capabilities up to 28 inches Hg. Recommended fittings include cam and groove fittings and combination nipples for secure connections. Available in black for industrial use this hose is part of the Boston by Danfoss / Eaton Fossa Industrial Hose Oil & Petroleum line.

MPN: C1MS45

Supplier Part Number: PETRO-S&D-40

Specifications

Brand Aeroquip® by Danfoss	Color Black	Conductivity Conductive	Cover Material NBR	Dash Size 40	For Use With Cam and Groove Hose Fittings	grp Caution For Use with Petroleum Products with Aromatic Content Up to 50%	grp Construction NBR Blend Tube; High-Tensile Synthetic Textile with A Single Steel Helical Wire and Anti-Static Copper Wire Reinforcement; NBR Blend Cover	grp Fittings Cam and Groove, Combination Nipple	grp Fittings Fitting Attachment Suggestions Cam and Groove, Combination Nipple	Hose Type Petroleum	Inside Diameter 2-1/2 in	Lay Line Style Ink Transfer	Qualified Hose Fittings Cam and Groove	Resistance Properties Abrasion	Series EHP150 Series	Tube Material Nitrile	Vacuum Service 28

Similar Products

Model Number	Color	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
PETRO-S&D-32 Petroleum/Oil S & D Hose	Black	2	2.48	150		9.84	28	200
PETRO-S&D-48 Petroleum/Oil S & D Hose	Black	3	3.5	150		14.96	28	200
PETRO-S&D-64 Petroleum/Oil S & D Hose	Black	4	4.61	150	450	20.08	28	200
PETRO-S&D-16 Petroleum/Oil S & D Hose	Black	1	1.44	150		4.33	28	200
PETRO-S&D-20 Petroleum/Oil S & D Hose	Black	1.25	1.69	150		5.51	28	200
PETRO-S&D-24 Petroleum/Oil S & D Hose	Black	1.5	1.93	150		6.69	28	200
PETRO-S&D-96 Petroleum/Oil S & D Hose	Black	6	6.69	150		31.1	28	200

Product Questions & Answers (3)

Question by: Floyd L on Jan 30, 2026, 5:44 PM

running this on a fuel transfer setup, pulling from a storage tank, will it hold up to the vacuum side without collapsing on me?

Answer by: Customer Support on Feb 1, 2026, 12:40 PM

Built with a single steel helical wire running through the wall, this hose is rated for vacuum service up to 28 inches Hg. That's solid pull capacity for tank suction work, and the wire reinforcement keeps the walls from collapsing under negative pressure. As long as you're moving petroleum-based product and your system stays within that range, you're in good shape on the suction side.

Question by: Randy L on Dec 29, 2025, 9:24 AM

Will this hose hold up if it's run all day long?

Answer by: Customer Support on Dec 30, 2025, 4:09 PM

This hose is built with a nitrile blend tube and cover, plus high-tensile synthetic textile reinforcement, making it durable enough for continuous suction and discharge of petroleum products within its pressure and temperature limits.

Question by: Hank C on Jan 11, 2026, 6:18 PM

got a 2.5 inch line, how tight can i bend this hose without kinking it

Answer by: Customer Support on Jan 12, 2026, 7:27 PM

For routing and install, the minimum bend radius is 12.2 inches. Staying at or above that bend radius helps it keep its shape and flow without collapsing.
