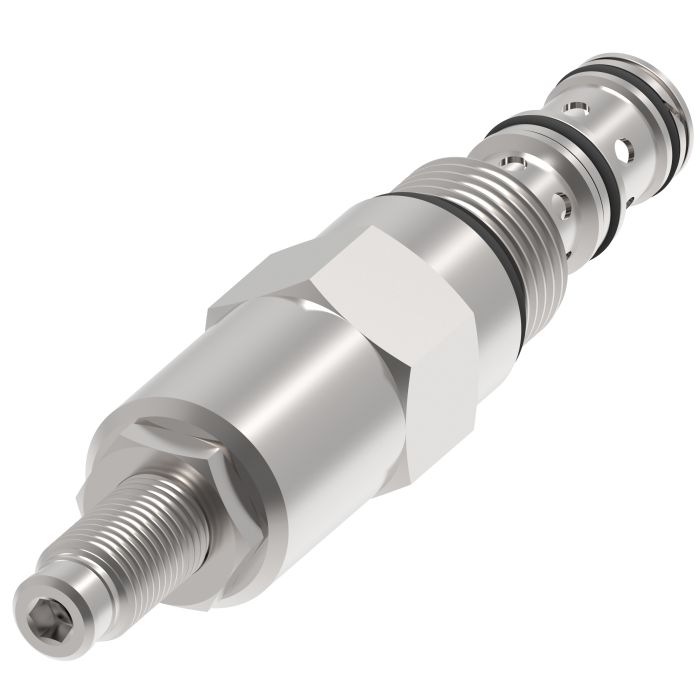

PFR2-16 Series 3-Port Pressure Compensated Priority Flow Control, 7.5 - 15.0 GPM Screw with Locknut Adjustment

Designed for mobile and industrial hydraulic circuits, the PFR2-16 Series 3-Port Pressure Compensated Priority Flow Control, 7.5 - 15.0 GPM Screw with Locknut Adjustment maintains a constant priority flow from port 1 to port 3 regardless of downstream pressure changes. Excess flow beyond the priority setting is directed to port 2, and if priority flow at port 3 is blocked, the spool shifts to close off port 2 accordingly.

This screw-in cartridge valve installs into a C-16-3 cavity (housing sold separately) and features a screw with locknut adjustment. The flow adjustment range spans from the factory-set maximum down to 50% of that rate. Pressure compensation ensures accurate flow delivery across varying input and load pressures. Seal material is Buna-N, and the recommended filtration level is ISO 4406 cleanliness class 18/16/13 or cleaner.

Rated to 3000 PSI with an inlet capacity of 40 GPM, this valve is well suited for harvesters, refuse haulers, and a range of other mobile and industrial hydraulic applications. The cartridge-only format requires a machined cavity or housing for installation.

SKU: 02-165648

Supplier Part Number (MPN): 02-165648

Alternate Part Numbers: C1MF99, PFR216S01500
