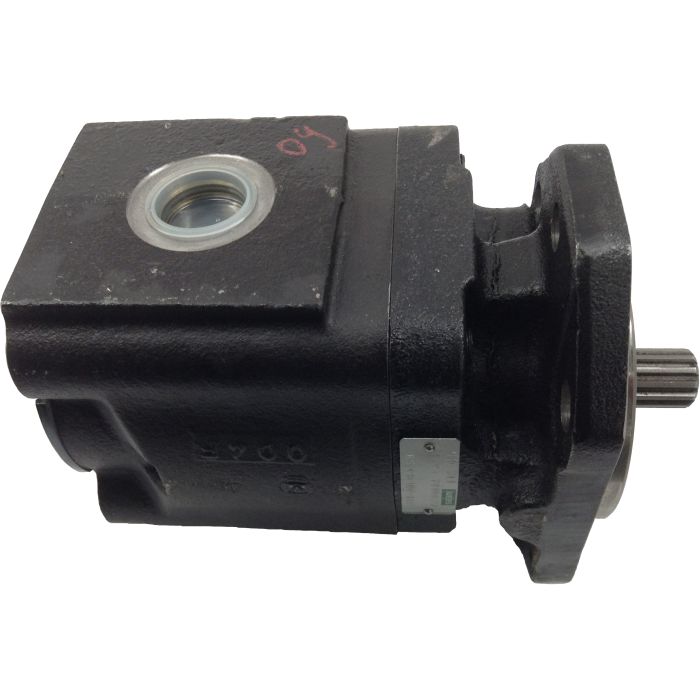

PG331 Series Cast Iron Gear Pump, 2.10 cu in/rev, 2/4-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE -16 Side Inlet SAE -12 Side Outlet, CW Rotation

Ask A Question

Description & Features

This cast iron gear pump boasts a displacement of 2.10 cubic inches per revolution. Engineered for high performance it features a 2/4-Bolt SAE B mounting flange and a 13T splined shaft measuring 1.61 inches in length. The side inlet and outlet ports are designed with SAE -16 and SAE -12 specifications respectively. Its clockwise rotation suits a variety of industrial applications.

The pump is manufactured by Salami S.p.A and is known for its high volumetric efficiency thanks to innovative design and precise machining tolerances. The use of floating bushings for axial compensation ensures consistent efficiency across the working pressure range. The unit supports a continuous pressure rating of up to 4000 PSI and peak pressures up to 4350 PSI.

Adaptable to European German and American standards the pump allows flexibility in shaft flange and port options. The recommended fluids range from 66 SUS to 3635 SUS in viscosity providing a broad operational spectrum. The temperature tolerance ranges from -4deg;F to 230deg;F depending on seal type.

MPN: 615200032

Supplier Part Number: 615200032

Specifications

Brand
Salami
Dimensions
7.33 in L x 6.85 in W x 5.94 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4350 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Iron
Inlet Type
SAE Threaded
Mount
2/4-Bolt SAE B
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
PG331 Series
Shaft
13 Tooth Splined x 1.61 in Long SAE B

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Pressure Rating Speed Rating Price Action
PG331 Series Cast Iron Gear Pump, 1.74 cu in/rev, 2/4-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE -16 Side Inlet SAE -12 Side Outlet, CW Rotation

615200022 PG331 Series Gear Pump

1.74

13.4

2/4-Bolt SAE B

13T Splined x 1.61 long SAE B

SAE -16 Side Inlet SAE -12 Side Outlet

CW

4000

2700 RPM

PG331 Series Cast Iron Gear Pump, 3.92 cu in/rev, 2/4-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE -20 Side Inlet SAE -16 Side Outlet, CW Rotation

615200072 PG331 Series Gear Pump

3.92

30.1

2/4-Bolt SAE B

13T Splined x 1.61 long SAE B

SAE -20 Side Inlet SAE -16 Side Outlet

CW

2900

2250 RPM

Product Questions & Answers (1)

Question by: Donna W on Aug 22, 2025, 7:50 PM
clockwise rotation only on this one, or can it be flipped to run CCW if needed?
Answer by: Customer Support on Aug 23, 2025, 9:09 PM
Rotation can actually be changed on these pumps by reversing the position of the drive shaft and driven shaft and rotating the front flange. It ships standard with clockwise rotation, but you're not locked into that if your setup calls for something different.
