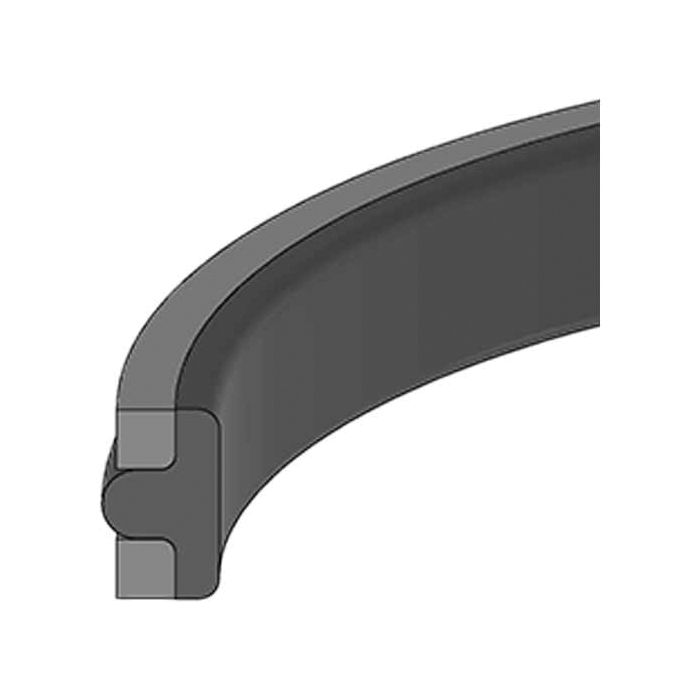

Piston T-Seal, 3.50 Inch Bore, O-Ring Groove

Description & Features

Designed for precision and durability, the Piston T-Seal is engineered for hydraulic applications with a 3.50-inch bore. This seal features a robust combination of hard plastic back-up rings and a Buna-N rubber seal, ensuring a reliable performance under demanding conditions. It operates efficiently in a wide temperature range from -65°F to 220°F and can withstand pressures up to 10,000 PSI, making it suitable for high-pressure environments.

Manufactured by Hercules Sealing Products, this high-quality seal is essential for maintaining optimal functionality in hydraulic systems, providing a reliable barrier to prevent fluid leakage. The O-ring groove design enhances the sealing capability, making it a preferred choice for various industrial applications. Identify your part with alternate numbers C1DM34, MI-01812527, or MINO-00407X90079.

SKU: TP-035

Supplier Part Number (MPN): TP-338

Alternate Part Numbers: C1DM34, MI-01812527, MINO-00407X90079

Specifications

Bore 3.50	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Supplier Part Number TP-035	Alternate Part Numbers Alternate Part Number C1DM34, Alternate Part Number MI-01812527, Alternate Part Number MINO-00407X90079	Product Weight 0.03 lbs

Similar Products

Model Number	Bore	Oring Groove Dash No.	Price	Action
TP-032 Piston T-Seal	3
TP-019 Piston T-Seal	1.5
TP-326 Piston T-Seal	2
TP-026 Piston T-Seal	2.25
TP-330 Piston T-Seal	2.5
TP-031 Piston T-Seal	2.875
TP-039 Piston T-Seal	4
TP-047 Piston T-Seal	5
TP-051 Piston T-Seal	5.5
TP-055 Piston T-Seal	6

Product Questions & Answers (2)

Question by: Shawn W on Jul 26, 2025, 10:24 AM

got a cylinder with a 3.50 bore, is this t-seal the right style for a piston with an o-ring groove?

Answer by: Customer Support on Jul 28, 2025, 6:11 AM

For a 3.50 inch bore piston that uses an O-ring groove style seal, this is a piston T-seal made for that setup. It uses hard plastic back-up rings with a Buna-N rubber sealing element to help keep hydraulic fluid from leaking past the piston.

Question by: Roy M on Mar 7, 2026, 7:16 AM

Reckon this T-seal is what I need for my hydraulic cylinder with a 3.5 inch bore? Gotta make sure before I order.

Answer by: Customer Support on Mar 9, 2026, 6:16 AM

This Piston T-Seal is indeed designed for hydraulic cylinders with a 3.5-inch bore, featuring an O-ring groove for enhanced sealing. Confirm that the alternate part numbers listed – C1DM34, MI-01812527, or MINO-00407X90079 – match what you're replacing.
