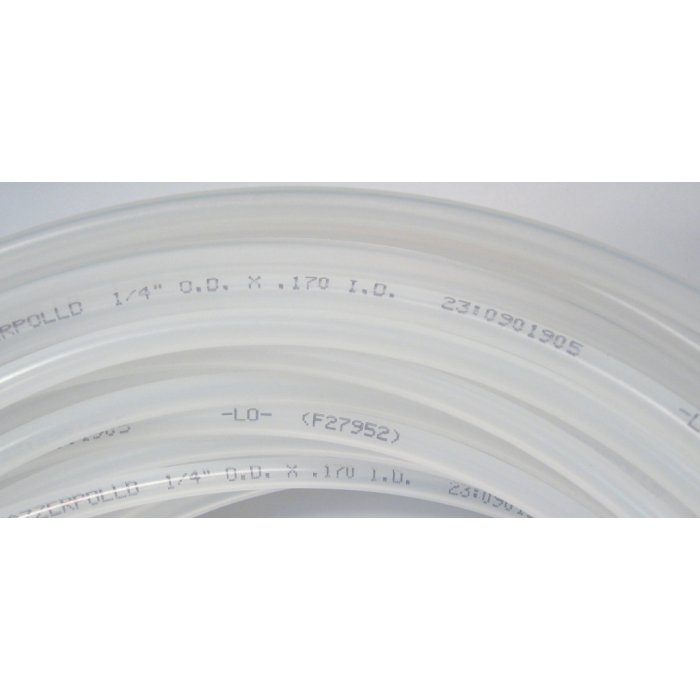

Polyethylene Tubing, 0.25 OD, 0.04 Thick, 0.17 ID, Up To 200.00 PSI

FREELINWADE 1/4 O.D. Polyethylene Tubing offers outstanding reliability for general low pressure and low temperature applications. Crafted from linear low-density polyethylene (LLDPE) this tubing grants superior environmental stress crack resistance (ESCR).

With specifications including 0.25" OD 0.04" thickness 0.17" ID and a robust burst pressure of 800 PSI the tubing excels in performance. Its maximum operating pressure reaches up to 200 PSI and the minimum bend radius is 1.25" making it versatile for various installation requirements.

This polyethylene tubing is suitable for instrumentation and food processing use meeting FDA regulation 21 CFR 177.1520(c) for food contact applications. Operating in a temperature range from -40deg;F to 150deg;F it ensures consistent performance in diverse conditions. The vacuum rating is up to 28" Hg and the product exhibits hardness at 50 Shore D.

For additional safety the tubing features a pressure rating with a 3:1 safety factor. The natural color tubing is compliant with both FDA and NSF51 standards bolstering its suitability for specialized industrial needs.

MPN: C1MM34

Supplier Part Number: 1J-048-10
