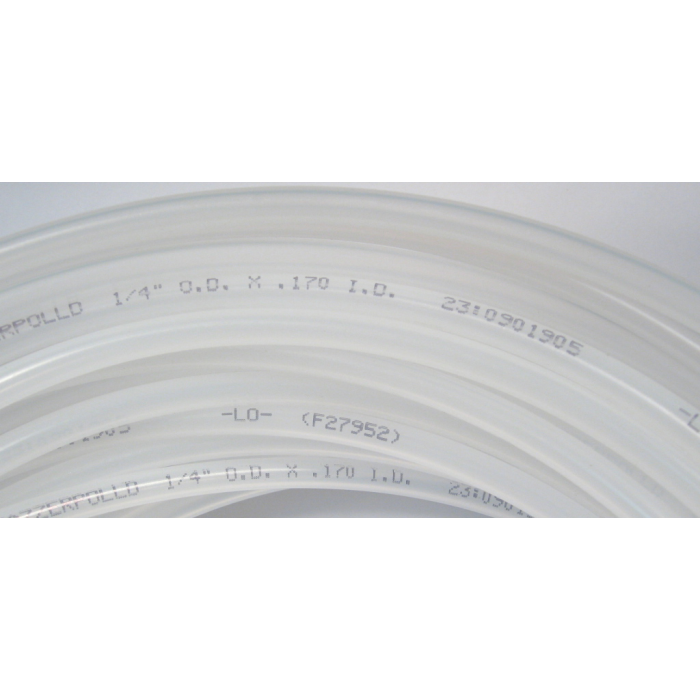

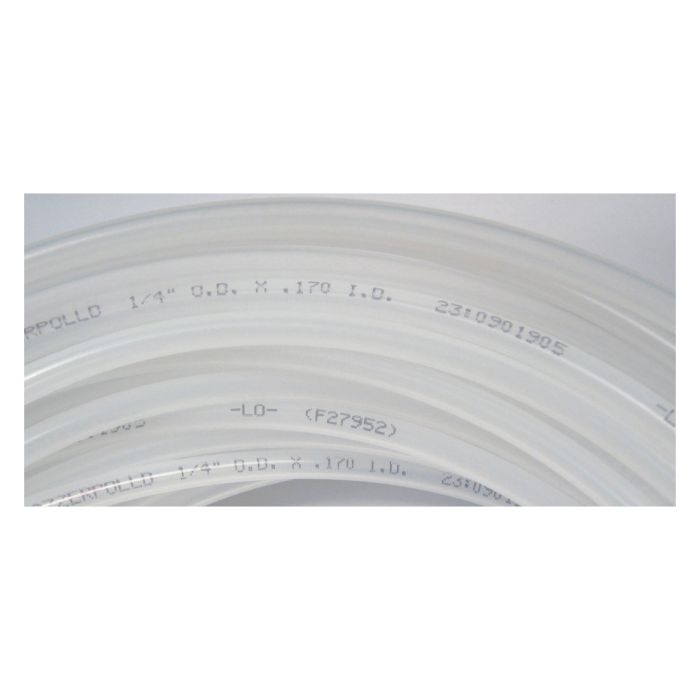

Polyethylene Tubing, 0.19 OD, 0.03 Thick, 0.13 ID, Up To 200.00 PSI

Description & Features

Polyethylene Tubing 0.19 OD 0.03 Thick 0.13 ID Up To 200.00 PSI is designed for a range of general low pressure and low temperature applications. This tubing with its natural color is made from linear low-density polyethylene (LLDPE) ensuring superior environmental stress crack resistance.

Featuring a minimum bend radius of 1 inch and a wall thickness of 0.031 inches this tubing is highly versatile. It has an operating temperature range of -40deg;F to 150deg;F and a maximum operating pressure of 200 PSI.

LLDPE's advantage over other materials lies in its ability to withstand environmental stresses such as chemical exposure aging and high vibration connections with compression fittings. All colors comply with FDA regulation 21 CFR 177.1520copy; making it suitable for food contact applications.

With a hardness rating of 50 Shore D and a safety factor pressure rating of 3:1 this product is reliable and durable. It also offers a vacuum rating to 28"Hg and a tolerance of +/- 0.004".

MPN: A43184

Supplier Part Number: A43184

Specifications

Brand
Freelin-Wade®
Color
Natural
For Use With
Barb-Type Fittings and Compression Fittings
grp Tolerance
+/- 0.004 in
Hardness
50 Shore D
Inside Diameter
0.12 in
Material
Polyethylene
Material Construction
LLDPE
Resistance Properties
Stress Crack
Safety Factor
3:1

Similar Products

Model Number Nominal Size Inside Diameter Outside Diameter Length Color Wall Thickness Price Action
Polyethylene Tubing, 0.25 OD, 0.04 Thick, 0.17 ID, Up To 200.00 PSI

1J-048-10 Polyethylene Tubing

1/4 in

0.17 in

Natural

Polyethylene Tubing, 0.13 OD, 0.03 Thick, 0.06 ID, Up To 305.00 PSI

1J-109-10 Polyethylene Tubing

Natural

Polyethylene Tubing, 0.25 OD, 0.04 Thick, 0.17 ID, Up To 200.00 PSI

1J-048-01 Polyethylene Tubing

1/4 in

0.17 in

Black

Polyethylene Tubing, 0.38 OD, 0.06 Thick, 0.25 ID, Up To 190.00 PSI

1J-074-10 Polyethylene Tubing

3/8 in

1/4 in

Natural

Polyethylene Tubing, 0.31 OD, 0.06 Thick, 0.19 ID, Up To 230.00 PSI

1J-077-10 Polyethylene Tubing

5/16 in

3/16 in

Natural

FW BLK PE 3/8 X 1/4 X 100 FT BAG

1J-074-01

3/8 in

1/4 in

Black

FW NAT PE 1/2 X 3/8 100 FT BAG

1J-076-10

1/2 in

0.38 in

Natural

FW NAT PE 5/32(4MM) X .106(2.7MM) X 100 FT BAG

1J-189-10

0.11 in

Natural

Product Questions & Answers (2)

Question by: Kirk A on Jun 1, 2025, 8:51 AM
Reckon this tubing'd be alright for running some air lines in my garage?
Answer by: Customer Support on Jun 2, 2025, 3:50 PM
For general low-pressure and low-temperature applications, it should do the trick. It's rated up to 200 PSI and handles temperatures from -40°F to 150°F. Just make sure your setup stays within those limits.
Question by: Wayne G on May 25, 2025, 3:34 PM
got a tight run behind a panel, how sharp can i bend this 3/16 tubing without kinking it up?
Answer by: Customer Support on May 27, 2025, 12:58 PM
For routing in tight spots, the minimum bend radius is 1 inch. Keeping your bends at 1 inch radius or larger helps the tubing hold its shape and flow without pinching down.
