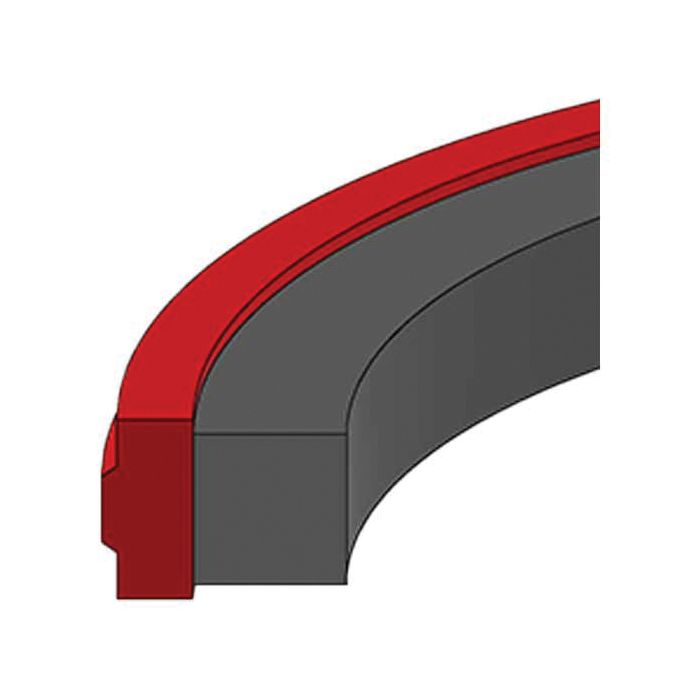

Style 2700 Polyurethane Piston Seal, 7.00 Inch Bore Diameter, 6.24 Inch Groove Diameter, Inch Groove Width

Description & Features

This Style 2700 Polyurethane Piston Seal is manufactured by Hercules Sealing Products. It fits a 7.00 inch bore with a bore tolerance of ±0.002 inches. The groove diameter is 6.24 inches and the groove width is inches.

The seal features a glass/PTFE filled polyurethane construction with a rubber energizer. It can withstand pressures from 0 to 5,000 PSI and temperatures from -40°F to 220°F. The piston diameter measures 6.999 inches with a tolerance of +0/-0.014 inches. The seal cross section is 0.142 inches, and the seal height is 0.362 inches with a height tolerance of +0.005 / -0 inches.

SKU: PS2700-112

Supplier Part Number (MPN): PS2700-112

Alternate Part Numbers: C1DH89, MI-08751798, MINO-00407X96666

Specifications

Bore 7	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.005	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 6.24	Groove Width Tolerance (in) ±0.002	Piston Dia. F 7.00	Piston Dia. Tolerance (in) +0/-0.014	Seal Cross Section C 0.14	Seal Height B 0.36	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS2700-112	Alternate Part Numbers Alternate Part Number C1DH89, Alternate Part Number MI-08751798, Alternate Part Number MINO-00407X96666	Product Weight 0.14 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)	Bore Tolerance (in)
PS2700-112 Polyurethane Piston Seal	7	0.362	0.142	6.238	6.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
PS2700-32 Polyurethane Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.009	±0.002
PS2700-56 Polyurethane Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-64 Polyurethane Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-72 Polyurethane Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-80 Polyurethane Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-96 Polyurethane Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002

Product Questions & Answers (1)

Question by: Warren K on Mar 25, 2026, 12:29 PM

I’ve got a cylinder with a 7.00 bore, is this PS2700-112 piston seal the right fit or am I gonna be fighting it?

Answer by: Customer Support on Mar 26, 2026, 9:54 PM

It matches a 7.00 inch bore with a bore tolerance of ±0.002 inches, and it’s sized around a 6.999 inch piston diameter with a +0/-0.014 inch tolerance. The seal cross section is 0.142 inches and seal height is 0.362 inches, so it’s meant to sit in that geometry rather than be forced into an out-of-spec bore or piston.
