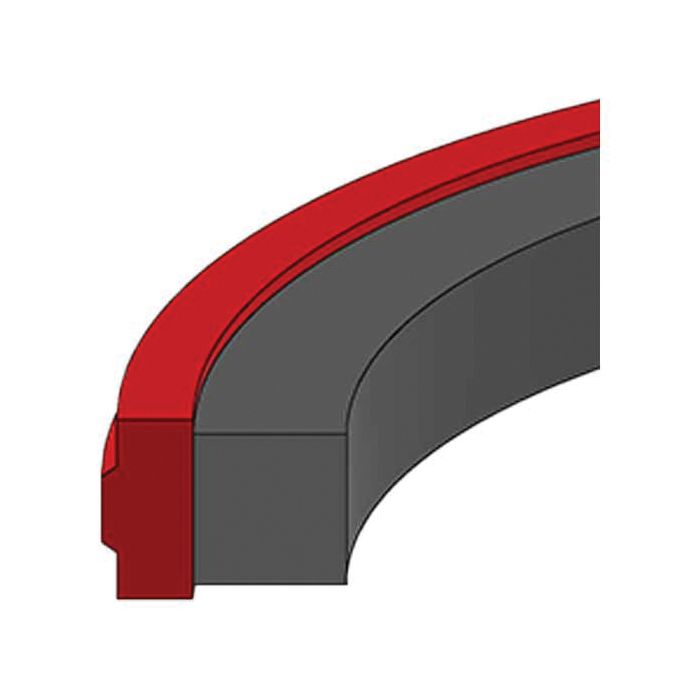

Style 2700 Polyurethane Piston Seal, 2.00 Inch Bore Diameter, 1.69 Inch Groove Diameter, Inch Groove Width

Description & Features

Designed for hydraulic cylinders operating under demanding conditions, the Style 2700 Polyurethane Piston Seal delivers reliable sealing performance across a 2.00 inch bore diameter with a 1.69 inch groove diameter. The seal is constructed from glass/PTFE filled polyurethane with a rubber energizer, offering a balanced combination of wear resistance and sealing efficiency.

Rated for pressures from 0 to 5,000 PSI and a temperature range of -40°F to 220°F, this seal is well-suited for mobile hydraulic and industrial cylinder applications where consistent performance across variable conditions is required. Hercules Sealing Products manufactures this seal to precise dimensional tolerances, supporting accurate fitment in standard cylinder assemblies.

SKU: PS2700-32

Supplier Part Number (MPN): PS2700-32

Alternate Part Numbers: C1DH92

Specifications

Bore 2	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) +0.006 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 1.69	Groove Width Tolerance (in) ±0.002	Piston Dia. F 2.00	Piston Dia. Tolerance (in) +0/-0.009	Seal Cross Section C 0.07	Seal Height B 0.12	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS2700-32	Alternate Part Numbers Alternate Part Number C1DH92	Product Weight 0.01 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)	Bore Tolerance (in)
PS2700-112 Polyurethane Piston Seal	7	0.362	0.142	6.238	6.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
PS2700-32 Polyurethane Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.009	±0.002
PS2700-56 Polyurethane Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-64 Polyurethane Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-72 Polyurethane Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-80 Polyurethane Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-96 Polyurethane Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
