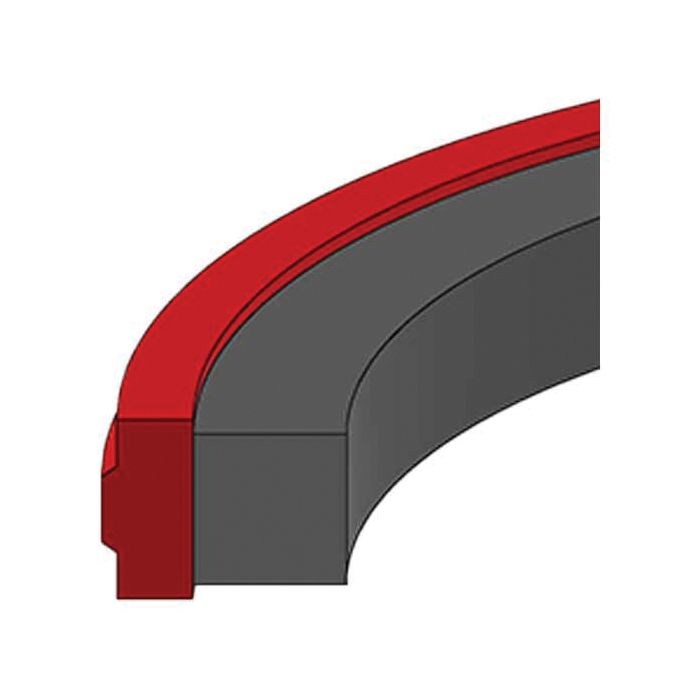

Style 2700 Polyurethane Piston Seal, 3.50 Inch Bore Diameter, 2.94 Inch Groove Diameter, Inch Groove Width

Description & Features

The Style 2700 Polyurethane Piston Seal is engineered for high-performance hydraulic applications, providing reliable sealing in systems with a bore diameter of 3.50 inches and a groove diameter of 2.94 inches. Constructed from a durable glass/PTFE filled polyurethane with a rubber energizer, this seal offers excellent resistance to wear and extrusion under extreme conditions.

Designed to withstand pressures up to 5,000 PSI, this piston seal operates effectively across a temperature range of -40°F to 220°F, making it suitable for demanding industrial environments. Its precise dimensions, including a seal cross-section of 0.087 inches and a seal height of 0.269 inches, ensure a secure fit and optimal performance. The seal's tolerances and material composition contribute to its robustness and longevity in high-pressure applications.

SKU: PS2700-56

Supplier Part Number (MPN): PS2700-56

Alternate Part Numbers: C1DH96, MI-01039083, MINO-00407X30302

Specifications

Bore 3.50	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) +0.006 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 2.94	Groove Width Tolerance (in) ±0.002	Piston Dia. F 3.50	Piston Dia. Tolerance (in) +0/-0.014	Seal Cross Section C 0.09	Seal Height B 0.27	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS2700-56	Alternate Part Numbers Alternate Part Number C1DH96, Alternate Part Number MI-01039083, Alternate Part Number MINO-00407X30302	Product Weight 0.04 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)	Bore Tolerance (in)
PS2700-112 Polyurethane Piston Seal	7	0.362	0.142	6.238	6.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
PS2700-32 Polyurethane Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.009	±0.002
PS2700-56 Polyurethane Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-64 Polyurethane Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-72 Polyurethane Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-80 Polyurethane Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-96 Polyurethane Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
