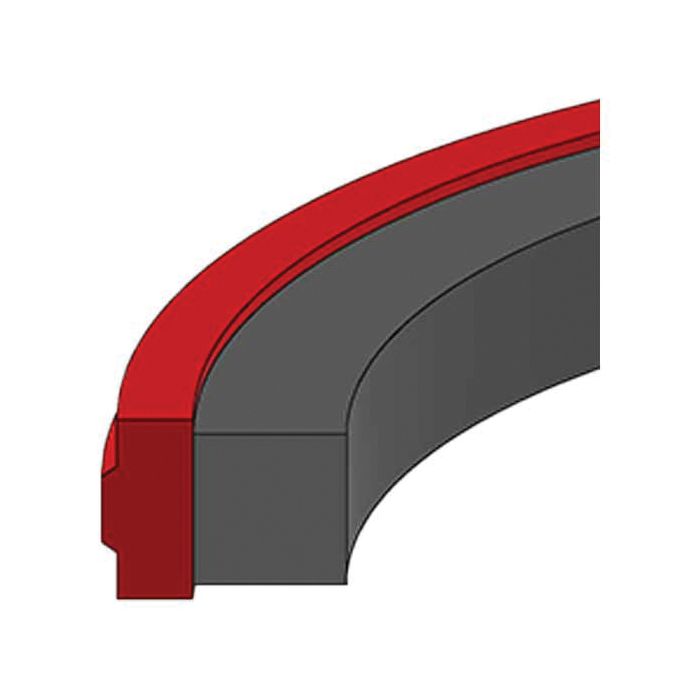

Style 2700 Polyurethane Piston Seal, 4.50 Inch Bore Diameter, 3.94 Inch Groove Diameter, Inch Groove Width

Description & Features

Ideal for high-performance hydraulic applications, the Style 2700 Polyurethane Piston Seal is engineered to ensure optimal sealing in systems with bore diameters of 4.50 inches. This advanced seal features a glass/PTFE-filled polyurethane construction, augmented by a rubber energizer, to deliver exceptional durability and reliability. It operates efficiently within a pressure range of 0 to 5,000 PSI and withstands temperatures from -40°F to 220°F, making it suitable for demanding environments.

The seal is designed with a groove diameter of 3.94 inches and a seal height of 0.269 inches, providing a precise fit and excellent sealing performance. Manufactured by Hercules Sealing Products, this piston seal is crafted to meet rigorous standards, ensuring long-lasting service and minimal maintenance.

SKU: PS2700-72

Supplier Part Number (MPN): PS2700-72

Alternate Part Numbers: C1DJ11

Specifications

Bore 4.50	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) +0.006 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 3.94	Groove Width Tolerance (in) ±0.002	Piston Dia. F 4.50	Piston Dia. Tolerance (in) +0/-0.014	Seal Cross Section C 0.09	Seal Height B 0.27	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS2700-72	Alternate Part Numbers Alternate Part Number C1DJ11	Product Weight 0.05 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)	Bore Tolerance (in)
PS2700-112 Polyurethane Piston Seal	7	0.362	0.142	6.238	6.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
PS2700-32 Polyurethane Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.009	±0.002
PS2700-56 Polyurethane Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-64 Polyurethane Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-72 Polyurethane Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-80 Polyurethane Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-96 Polyurethane Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
