Style 2700 Polyurethane Piston Seal, 5.00 Inch Bore Diameter, 4.44 Inch Groove Diameter, Inch Groove Width

Description & Features

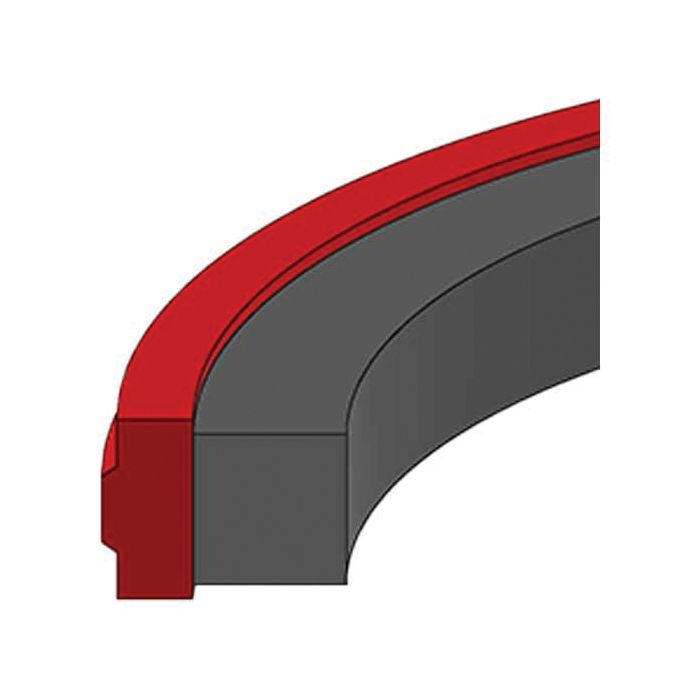

This Style 2700 Polyurethane Piston Seal from Hercules Sealing Products is designed for a 5.00 inch bore. This piston seal has a groove diameter of 4.44 inches and a groove width tolerance of ±0.002 inches.

Manufactured with a glass/PTFE filled polyurethane seal and a rubber energizer, this seal is suitable for pressures ranging from 0 to 5,000 PSI and temperatures from -40°F to 220°F. The piston diameter is 4.999 inches, with a tolerance of +0/-0.014 inches. Seal cross section measures 0.087 inches, with a height of 0.269 inches and a height tolerance of +0.005 / -0 inches.

SKU: PS2700-80

Supplier Part Number (MPN): PS2700-80

Alternate Part Numbers: C1DJ12, MI-01036700, MINO-00407X30102

Specifications

Bore 5	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) +0.006 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 4.44	Groove Width Tolerance (in) ±0.002	Piston Dia. F 5.00	Piston Dia. Tolerance (in) +0/-0.014	Seal Cross Section C 0.09	Seal Height B 0.27	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS2700-80	Alternate Part Numbers Alternate Part Number C1DJ12, Alternate Part Number MI-01036700, Alternate Part Number MINO-00407X30102	Product Weight 0.05 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)	Bore Tolerance (in)
PS2700-112 Polyurethane Piston Seal	7	0.362	0.142	6.238	6.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
PS2700-32 Polyurethane Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.009	±0.002
PS2700-56 Polyurethane Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-64 Polyurethane Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-72 Polyurethane Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-80 Polyurethane Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-96 Polyurethane Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002

Product Questions & Answers (2)

Question by: Joyce P on Dec 23, 2025, 5:05 PM

got a cylinder with a 5 inch bore. is this the right Style 2700 piston seal for it, or am I gonna be fighting the fit

Answer by: Customer Support on Dec 25, 2025, 12:52 PM

It matches a 5.00 inch bore and is sized around a 4.999 inch piston diameter with a +0/-0.014 inch tolerance. The groove diameter called out for this seal is 4.44 inches, and the groove width tolerance is ±0.002 inches, so those are the key numbers to line up with your piston and groove.

Question by: Floyd W on Aug 19, 2025, 9:07 AM

What bore size is this seal good for? Just want to make sure it's the right one for my cylinder.

Answer by: Customer Support on Aug 20, 2025, 6:02 PM

It's designed for a 5-inch bore. The piston diameter itself is just a hair under that, at 4.999 inches, with a tolerance of +0/-0.014 inches.
