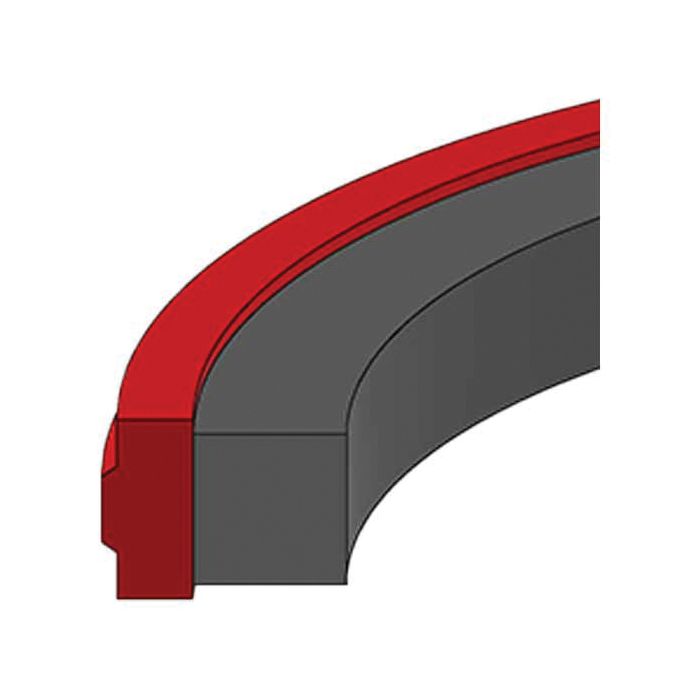

Style 2700 Polyurethane Piston Seal, 6.00 Inch Bore Diameter, 5.24 Inch Groove Diameter, Inch Groove Width

Description & Features

The Style 2700 Polyurethane Piston Seal is designed for a 6.00-inch bore diameter and a 5.24-inch groove diameter, with a groove width of 0.142 inches.

This Hercules Sealing Products piston seal is manufactured with glass/PTFE filled polyurethane seal and a rubber energizer, and is suitable for pressures ranging from 0 to 5,000 PSI and temperatures from -40°F to 220°F.

The bore tolerance is ±0.002 inches, and the cross-section tolerance is ±0.005 inches. The piston diameter is 5.999 inches with a tolerance of +0/-0.014 inches. The seal height measures 0.362 inches with a tolerance of +0.005 / -0 inches. The groove diameter (E) measures 5.238 inches, and the groove width tolerance is ±0.002 inches.

SKU: PS2700-96

Supplier Part Number (MPN): PS2700-96

Alternate Part Numbers: C1DJ15

Specifications

Bore 6	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.005	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 5.24	Groove Width Tolerance (in) ±0.002	Piston Dia. F 6.00	Piston Dia. Tolerance (in) +0/-0.014	Seal Cross Section C 0.14	Seal Height B 0.36	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS2700-96	Alternate Part Numbers Alternate Part Number C1DJ15	Product Weight 0.10 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)	Bore Tolerance (in)
PS2700-112 Polyurethane Piston Seal	7	0.362	0.142	6.238	6.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
PS2700-32 Polyurethane Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.009	±0.002
PS2700-56 Polyurethane Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-64 Polyurethane Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-72 Polyurethane Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-80 Polyurethane Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-96 Polyurethane Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
