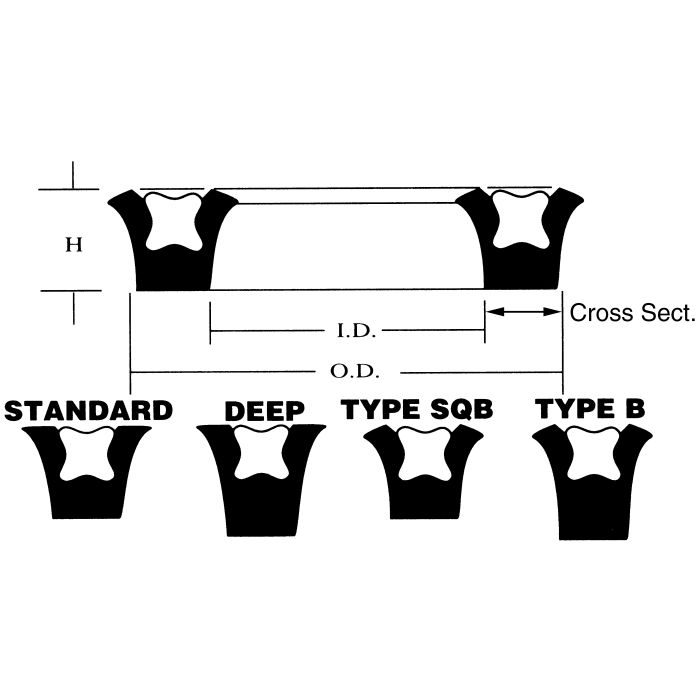

Polyurethane U-Seal, 0.56 Inch OD, 0.31 Inch ID, 0.25 Inch Height

Description & Features

Rated for pressures up to 6,000 PSI and a temperature range of -65°F to 220°F, this urethane seal is built for demanding hydraulic and industrial sealing applications. The Polyurethane U-Seal, 0.56 Inch OD, 0.31 Inch ID, 0.25 Inch Height is manufactured by Hercules Sealing Products and features a beveled lip design that promotes effective film breaking across the sealing surface.

With an outside diameter of 0.563 in, an inside diameter of 0.3125 in, and a height of 0.25 in, this U-seal suits compact cylinder and rod sealing configurations. The polyurethane construction offers durability and resilience across a wide service temperature range, making it a practical choice for hydraulic cylinders and actuators operating under varying conditions.

SKU: U12-0.31-25B

Supplier Part Number (MPN): U12-0.31-25B

Alternate Part Numbers: C1DM73, MI-02250021, MINO-00407X31585

Specifications

Cross Section 0.125 in	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	H 0.25 in	I.D. 0.3125 in	O.D. 0.563 in	Supplier Part Number U12-0.31-25B	Alternate Part Numbers Alternate Part Number C1DM73, Alternate Part Number MI-02250021, Alternate Part Number MINO-00407X31585	Product Weight 0.01 lbs

Similar Products

Model Number	Cross Section	I.D.	O.D.	H
U12-0.62-25B Polyurethane U-Seal	0.125 in	0.625 in	0.875 in	0.25 in
U12-1.00-25B Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.25 in
U12-1.25-SQB Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.125 in
U18-1.25-SQB Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.1875 in
U18-1.75-37B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.375 in
U18-2.12-SQB Polyurethane U-Seal	0.1875 in	2.125 in	2.5 in	0.1875 in
U18-2.50-31B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.3125 in
U25-1.25-37B Polyurethane U-Seal	0.25 in	1.25 in	1.75 in	0.375 in
U25-1.50-37B Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.375 in
U25-2.00-37B Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.375 in
U25-2.50-37B Polyurethane U-Seal	0.25 in	2.5 in	3 in	0.375 in
U25-3.00 Polyurethane U-Seal	0.25 in	3 in	3.5 in	0.25 in
U25-3.00-37B Polyurethane U-Seal	0.25 in	3 in	3.5 in	0.375 in
U25-3.50-37B Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.375 in
U25-4.00-SQB Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.25 in
U25-4.50 Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.25 in
U25-5.00 Polyurethane U-Seal	0.25 in	5 in	5.5 in	0.25 in
U12-0.18-25B Polyurethane U-Seal	0.125 in	0.1875 in	0.438 in	0.25 in
U12-0.25-25B Polyurethane U-Seal	0.125 in	0.25 in	0.5 in	0.25 in
U12-0.25-SQB Polyurethane U-Seal	0.125 in	0.25 in	0.5 in	0.125 in
U12-0.31-25B Polyurethane U-Seal	0.125 in	0.3125 in	0.563 in	0.25 in
U12-0.31-SQB Polyurethane U-Seal	0.125 in	0.3125 in	0.563 in	0.125 in
U12-0.37 Polyurethane U-Seal	0.125 in	0.375 in	0.625 in	0.125 in
U12-0.50-25B Polyurethane U-Seal	0.125 in	0.5 in	0.75 in	0.25 in
U12-0.50-SQB Polyurethane U-Seal	0.125 in	0.5 in	0.75 in	0.125 in
U12-0.56 Polyurethane U-Seal	0.125 in	0.625 in	0.938 in	0.125 in
U12-0.62-SQB Polyurethane U-Seal	0.125 in	0.625 in	0.875 in	0.125 in
U12-0.68 Polyurethane U-Seal	0.125 in	0.6875 in	0.938 in	0.125 in
U12-0.75-18B Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.1875 in
U12-0.75-25B Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.25 in
U12-0.75-SQB Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.125 in
U12-0.81 Polyurethane U-Seal	0.125 in	0.8125 in	1.063 in	0.125 in
U12-0.87-25B Polyurethane U-Seal	0.125 in	0.875 in	1.125 in	0.25 in
U12-0.87-SQB Polyurethane U-Seal	0.125 in	0.875 in	1.125 in	0.125 in
U12-1.00-18B Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.1875 in
U12-1.00-SQB Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.125 in
U12-1.06-SQB Polyurethane U-Seal	0.125 in	1.0625 in	1.313 in	0.125 in
U12-1.12-25B Polyurethane U-Seal	0.125 in	1.0625 in	1.375 in	0.25 in
U12-1.12-SQB Polyurethane U-Seal	0.125 in	1.0625 in	1.375 in	0.125 in
U12-1.18 Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.125 in
U12-1.18-18B Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.1875 in
U12-1.18-25B Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.25 in
U12-1.25-18B Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.1875 in
U12-1.25-25B Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.25 in
U12-1.37-25B Polyurethane U-Seal	0.125 in	1.375 in	1.625 in	0.25 in
U12-1.37-SQB Polyurethane U-Seal	0.125 in	1.375 in	1.625 in	0.125 in
U12-1.50-25B Polyurethane U-Seal	0.125 in	1.5 in	1.75 in	0.25 in
U12-1.50-SQB Polyurethane U-Seal	0.125 in	1.5 in	1.75 in	0.125 in
U12-1.62-SQB Polyurethane U-Seal	0.125 in	1.625 in	1.875 in	0.125 in
U12-1.75-SQB Polyurethane U-Seal	0.125 in	1.75 in	2 in	0.125 in
U12-2.00 Polyurethane U-Seal	0.125 in	2 in	2.25 in	0.125 in
U12-2.25 Polyurethane U-Seal	0.125 in	2.25 in	2.5 in	0.125 in
U12-2.75 Polyurethane U-Seal	0.125 in	2.75 in	3 in	0.125 in
U15-1.18 Polyurethane U-Seal	0.1563 in	0.188 in	1.5 in	0.1563 in
U15-1.25 Polyurethane U-Seal	0.1563 in	1.25 in	1.563 in	0.1563 in
U15-1.37 Polyurethane U-Seal	0.1563 in	1.375 in	1.688 in	0.1563 in
U18-0.50 Polyurethane U-Seal	0.1875 in	0.5 in	0.875 in	0.1875 in
U18-0.62-31B Polyurethane U-Seal	0.1875 in	0.625 in	1 in	0.3125 in
U18-0.62-SQB Polyurethane U-Seal	0.1875 in	0.625 in	1 in	0.1875 in
U18-0.75-31B Polyurethane U-Seal	0.1875 in	0.75 in	1.125 in	0.3125 in
U18-0.75-SQB Polyurethane U-Seal	0.1875 in	0.75 in	1.125 in	0.1875 in
U18-0.87-31B Polyurethane U-Seal	0.1875 in	0.875 in	1.25 in	0.3125 in
U18-0.87-SQB Polyurethane U-Seal	0.1875 in	0.875 in	1.25 in	0.1875 in
U18-1.00-25B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.25 in
U18-1.00-31B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.3125 in
U18-1.00-37B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.375 in
U18-1.00-SQB Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.1875 in
U18-1.12-25B Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.25 in
U18-1.12-31B Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.3125 in
U18-1.12-SQB Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.1875 in
U18-1.18 Polyurethane U-Seal	0.1875 in	0.188 in	1.563 in	0.1875 in
U18-1.25-25B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.25 in
U18-1.25-31B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.3125 in
U18-1.25-37B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.375 in
U18-1.37-25B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.25 in
U18-1.37-31B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.3125 in
U18-1.37-37B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.375 in
U18-1.37-SQB Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.1875 in
U18-1.50-25B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.25 in
U18-1.50-31B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.3125 in
U18-1.50-37B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.375 in
U18-1.50-SQB Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.1875 in
U18-1.62 Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.1875 in
U18-1.62-25B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.25 in
U18-1.62-31B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.3125 in
U18-1.62-37B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.375 in
U18-1.62-SQB Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.1875 in
U18-1.75-25B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.25 in
U18-1.75-31B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.3125 in
U18-1.75-SQB Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.1875 in
U18-1.87-37B Polyurethane U-Seal	0.1875 in	1.875 in	2.25 in	0.375 in
U18-1.87-SQB Polyurethane U-Seal	0.1875 in	1.875 in	2.25 in	0.1875 in
U18-2.00-31B Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.3125 in
U18-2.00-37B Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.375 in
U18-2.00-SQB Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.1875 in
U18-2.12-25B Polyurethane U-Seal	0.1875 in	2.125 in	2.5 in	0.25 in
U18-2.25-37B Polyurethane U-Seal	0.1875 in	2.25 in	2.625 in	0.375 in
U18-2.25-SQB Polyurethane U-Seal	0.1875 in	2.25 in	2.625 in	0.1875 in
U18-2.37-SQB Polyurethane U-Seal	0.1875 in	2.375 in	2.75 in	0.1875 in
U18-2.50-25B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.25 in
U18-2.50-37B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.375 in
U18-2.50-SQB Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.1875 in
U18-2.62-37B Polyurethane U-Seal	0.1875 in	2.625 in	3 in	0.375 in
U18-2.62-SQB Polyurethane U-Seal	0.1875 in	2.625 in	3 in	0.1875 in
U18-2.75-37B Polyurethane U-Seal	0.1875 in	2.75 in	3.125 in	0.375 in
U18-2.75-SQB Polyurethane U-Seal	0.1875 in	2.75 in	3.125 in	0.1875 in
U18-2.87 Polyurethane U-Seal	0.1875 in	2.875 in	3.25 in	0.1875 in
U18-3.00 Polyurethane U-Seal	0.1875 in	3 in	3.375 in	0.1875 in
U18-3.00-37B Polyurethane U-Seal	0.1875 in	3 in	3.375 in	0.375 in
U18-3.12-37B Polyurethane U-Seal	0.1875 in	3.125 in	3.5 in	0.375 in
U18-3.12-SQB Polyurethane U-Seal	0.1875 in	3.125 in	3.5 in	0.1875 in
U18-3.50-37B Polyurethane U-Seal	0.1875 in	3.5 in	3.875 in	0.375 in
U18-3.62-37B Polyurethane U-Seal	0.1875 in	3.625 in	4 in	0.375 in
U18-3.62-SQB Polyurethane U-Seal	0.1875 in	3.625 in	4 in	0.1875 in
U18-4.00-37B Polyurethane U-Seal	0.1875 in	4 in	4.375 in	0.375 in
U25-0.75 Polyurethane U-Seal	0.25 in	0.75 in	1.25 in	0.25 in
U25-0.93 Polyurethane U-Seal	0.25 in	0.8125 in	1.438 in	0.25 in
U25-1.00-37B Polyurethane U-Seal	0.25 in	1 in	1.5 in	0.375 in
U25-1.00-SQB Polyurethane U-Seal	0.25 in	1 in	1.5 in	0.25 in
U25-1.12 Polyurethane U-Seal	0.25 in	1.0625 in	1.625 in	0.25 in
U25-1.12-37B Polyurethane U-Seal	0.25 in	1.0625 in	1.625 in	0.375 in
U25-1.18 Polyurethane U-Seal	0.25 in	0.188 in	1.688 in	0.25 in
U25-1.25-SQB Polyurethane U-Seal	0.25 in	1.25 in	1.75 in	0.25 in
U25-1.37 Polyurethane U-Seal	0.25 in	1.375 in	1.875 in	0.25 in
U25-1.37-37B Polyurethane U-Seal	0.25 in	1.375 in	1.875 in	0.375 in
U25-1.50-31B Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.3125 in
U25-1.50-SQB Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.25 in
U25-1.75 Polyurethane U-Seal	0.25 in	1.75 in	2.25 in	0.25 in
U25-1.75-37B Polyurethane U-Seal	0.25 in	1.75 in	2.25 in	0.375 in
U25-1.87-37B Polyurethane U-Seal	0.25 in	1.875 in	2.375 in	0.375 in
U25-2.00-31B Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.3125 in
U25-2.00-SQB Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.25 in
U25-2.12-37B Polyurethane U-Seal	0.25 in	2.125 in	2.625 in	0.375 in
U25-2.25 Polyurethane U-Seal	0.25 in	2.25 in	2.75 in	0.25 in
U25-2.25-37B Polyurethane U-Seal	0.25 in	2.25 in	2.75 in	0.375 in
U25-2.37-37B Polyurethane U-Seal	0.25 in	2.375 in	2.875 in	0.375 in
U25-2.50-SQB Polyurethane U-Seal	0.25 in	2.5 in	3 in	0.25 in
U25-2.62-37B Polyurethane U-Seal	0.25 in	2.625 in	3.125 in	0.375 in
U25-2.75-37B Polyurethane U-Seal	0.25 in	2.75 in	3.25 in	0.375 in
U25-2.75-SQB Polyurethane U-Seal	0.25 in	2.75 in	3.25 in	0.25 in
U25-3.25-37B Polyurethane U-Seal	0.25 in	3.25 in	3.75 in	0.375 in
U25-3.50 Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.25 in
U25-3.50-SQB Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.25 in
U25-3.75-37B Polyurethane U-Seal	0.25 in	3.75 in	4.25 in	0.375 in
U25-3.75-SQB Polyurethane U-Seal	0.25 in	3.75 in	4.25 in	0.25 in
U25-4.00-37B Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.375 in
U25-4.00-50D Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.5 in
U25-4.00-56B Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.5625 in
U25-4.50-37B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.375 in
U25-4.50-56B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.5625 in
U25-4.50-62B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.625 in
U25-5.00-37B Polyurethane U-Seal	0.25 in	5 in	5.5 in	0.375 in
U25-5.50 Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.25 in
U25-5.50-37B Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.375 in
U25-5.50-56B Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.5625 in
U31-1.00-50B Polyurethane U-Seal	0.3125 in	1 in	1.625 in	0.5 in
U31-1.25 Polyurethane U-Seal	0.3125 in	1.25 in	1.875 in	0.3125 in
U31-1.25-37B Polyurethane U-Seal	0.3125 in	1.25 in	1.875 in	0.375 in
U31-1.37-37B Polyurethane U-Seal	0.3125 in	1.375 in	2 in	0.375 in
U31-1.37-SQB Polyurethane U-Seal	0.3125 in	1.375 in	2 in	0.3125 in
U31-1.50 Polyurethane U-Seal	0.3125 in	1.5 in	2.125 in	0.3125 in
U31-1.75-37B Polyurethane U-Seal	0.3125 in	1.75 in	2.375 in	0.375 in
U31-1.87 Polyurethane U-Seal	0.3125 in	1.875 in	2.5 in	0.3125 in
U31-2.00 Polyurethane U-Seal	0.3125 in	2 in	2.625 in	0.3125 in
U31-2.00-50B Polyurethane U-Seal	0.3125 in	2 in	2.625 in	0.5 in
U31-2.25-50B Polyurethane U-Seal	0.3125 in	2.25 in	2.875 in	0.5 in
U31-2.37 Polyurethane U-Seal	0.3125 in	2.375 in	3 in	0.3125 in
U31-2.50 Polyurethane U-Seal	0.3125 in	2.5 in	3.125 in	0.3125 in
U31-2.50-50B Polyurethane U-Seal	0.3125 in	2.5 in	3.125 in	0.5 in
U31-2.75 Polyurethane U-Seal	0.3125 in	2.75 in	3.375 in	0.3125 in
U31-2.75-50B Polyurethane U-Seal	0.3125 in	2.75 in	3.375 in	0.5 in
U31-2.87 Polyurethane U-Seal	0.3125 in	2.875 in	3.5 in	0.3125 in
U31-3.00-50B Polyurethane U-Seal	0.3125 in	3 in	3.625 in	0.5 in
U31-3.37-50B Polyurethane U-Seal	0.3125 in	3.375 in	4 in	0.5 in
U31-4.00 Polyurethane U-Seal	0.3125 in	4 in	4.625 in	0.3125 in
U31-4.00-56B Polyurethane U-Seal	0.3125 in	4 in	4.625 in	0.5625 in
U31-4.37 Polyurethane U-Seal	0.3125 in	4.375 in	5 in	0.3125 in
U31-4.50 Polyurethane U-Seal	0.3125 in	4.5 in	5.125 in	0.3125 in
U37-1.25 Polyurethane U-Seal	0.375 in	1.25 in	2 in	0.375 in
U37-1.75 Polyurethane U-Seal	0.375 in	1.75 in	2.5 in	0.375 in
U37-2.50-50B Polyurethane U-Seal	0.375 in	2.5 in	3.25 in	0.5 in
U37-2.75 Polyurethane U-Seal	0.375 in	2.75 in	3.5 in	0.375 in
U37-3.25-50B Polyurethane U-Seal	0.375 in	3.25 in	4 in	0.5 in
U37-3.50 Polyurethane U-Seal	0.375 in	3.5 in	4.25 in	0.375 in
U37-3.75-50D Polyurethane U-Seal	0.375 in	3.75 in	4.5 in	0.5 in
U37-4.00-62B Polyurethane U-Seal	0.375 in	4 in	4.75 in	0.625 in
U37-4.25-50D Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.5 in
U37-4.25-62B Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.625 in
U37-4.25-SQB Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.375 in
U37-4.50-62B Polyurethane U-Seal	0.375 in	4.5 in	5.25 in	0.625 in
U37-5.00-62B Polyurethane U-Seal	0.375 in	5 in	5.75 in	0.625 in
U37-5.25 Polyurethane U-Seal	0.375 in	5.25 in	6 in	0.375 in
U37-5.25-50D Polyurethane U-Seal	0.375 in	5.25 in	6 in	0.5 in
U37-6.25-50D Polyurethane U-Seal	0.375 in	6.25 in	7 in	0.5 in
U50-2.00-SQB Polyurethane U-Seal	0.5 in	2 in	3 in	0.5 in
U50-2.50 Polyurethane U-Seal	0.5 in	2.5 in	3.5 in	0.5 in

Product Questions & Answers (3)

Question by: Ray A on May 17, 2025, 8:04 PM

Got a small hydraulic cylinder that needs a rod seal, outside diameter on the rod housing is 0.563 in and the rod itself measures 0.3125 in. this seal gonna fit that setup?

Answer by: Customer Support on May 19, 2025, 11:12 AM

Those dimensions line up exactly with what this seal is built for. The 0.563 inch OD seats into the housing bore, the 0.3125 inch ID rides the rod, and the 0.25 inch height fits the groove depth for that configuration. The beveled lip design helps it break the fluid film cleanly across the rod surface, which keeps the seal working right without building up pressure behind it.

Question by: Hugh A on Mar 26, 2026, 6:43 AM

trying to match up a little u-seal, are these sizes the actual measurements or just a label?

Answer by: Customer Support on Mar 28, 2026, 6:43 AM

For this one, the dimensions are given as actual sizes: 0.563 inch outside diameter, 0.3125 inch inside diameter, and 0.25 inch height. The cross section is 0.125 inch.

Question by: Joyce S on Jun 2, 2025, 10:30 AM

reckon this'll hold up alright in my hydraulic cylinder? i'm usin it pretty hard ya know

Answer by: Customer Support on Jun 3, 2025, 12:23 PM

This U-seal is rated to handle pressures up to 6,000 PSI, so it should be suitable for demanding hydraulic applications. Its polyurethane construction also makes it durable over a temperature range of -65°F to 220°F.
