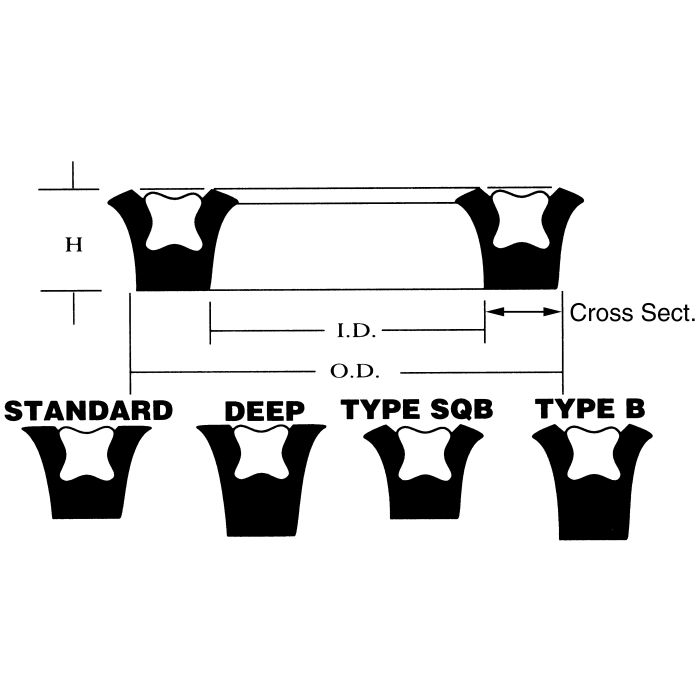

Polyurethane U-Seal, 1.06 Inch OD, 0.81 Inch ID, 0.13 Inch Height

Description & Features

Rated for pressures up to 6,000 PSI and a temperature range of -65°F to 220°F, this polyurethane U-seal is well-suited for demanding hydraulic cylinder and actuator applications. The beveled lip design provides effective film breaking, supporting reliable sealing performance across a wide range of dynamic rod and piston applications.

The Polyurethane U-Seal, 1.06 Inch OD, 0.81 Inch ID, 0.13 Inch Height is manufactured by Hercules Sealing Products in urethane construction, offering good wear resistance and compatibility with standard hydraulic fluids. With an OD of 1.063 in, an ID of 0.8125 in, and a cross section of 0.125 in, this seal fits standard groove dimensions where height and cross section are equal.

SKU: U12-0.81

Supplier Part Number (MPN): U12-0.81

Alternate Part Numbers: C1DM86, MI-01195538, MINO-00407X60084

Specifications

Cross Section 0.125 in	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	H 0.125 in	I.D. 0.8125 in	O.D. 1.063 in	Supplier Part Number U12-0.81	Alternate Part Numbers Alternate Part Number C1DM86, Alternate Part Number MI-01195538, Alternate Part Number MINO-00407X60084	Product Weight 0.01 lbs

Similar Products

Model Number	Cross Section	I.D.	O.D.	H
U12-0.62-25B Polyurethane U-Seal	0.125 in	0.625 in	0.875 in	0.25 in
U12-1.00-25B Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.25 in
U12-1.25-SQB Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.125 in
U18-1.25-SQB Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.1875 in
U18-1.75-37B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.375 in
U18-2.12-SQB Polyurethane U-Seal	0.1875 in	2.125 in	2.5 in	0.1875 in
U18-2.50-31B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.3125 in
U25-1.25-37B Polyurethane U-Seal	0.25 in	1.25 in	1.75 in	0.375 in
U25-1.50-37B Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.375 in
U25-2.00-37B Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.375 in
U25-2.50-37B Polyurethane U-Seal	0.25 in	2.5 in	3 in	0.375 in
U25-3.00 Polyurethane U-Seal	0.25 in	3 in	3.5 in	0.25 in
U25-3.00-37B Polyurethane U-Seal	0.25 in	3 in	3.5 in	0.375 in
U25-3.50-37B Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.375 in
U25-4.00-SQB Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.25 in
U25-4.50 Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.25 in
U25-5.00 Polyurethane U-Seal	0.25 in	5 in	5.5 in	0.25 in
U12-0.18-25B Polyurethane U-Seal	0.125 in	0.1875 in	0.438 in	0.25 in
U12-0.25-25B Polyurethane U-Seal	0.125 in	0.25 in	0.5 in	0.25 in
U12-0.25-SQB Polyurethane U-Seal	0.125 in	0.25 in	0.5 in	0.125 in
U12-0.31-25B Polyurethane U-Seal	0.125 in	0.3125 in	0.563 in	0.25 in
U12-0.31-SQB Polyurethane U-Seal	0.125 in	0.3125 in	0.563 in	0.125 in
U12-0.37 Polyurethane U-Seal	0.125 in	0.375 in	0.625 in	0.125 in
U12-0.50-25B Polyurethane U-Seal	0.125 in	0.5 in	0.75 in	0.25 in
U12-0.50-SQB Polyurethane U-Seal	0.125 in	0.5 in	0.75 in	0.125 in
U12-0.56 Polyurethane U-Seal	0.125 in	0.625 in	0.938 in	0.125 in
U12-0.62-SQB Polyurethane U-Seal	0.125 in	0.625 in	0.875 in	0.125 in
U12-0.68 Polyurethane U-Seal	0.125 in	0.6875 in	0.938 in	0.125 in
U12-0.75-18B Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.1875 in
U12-0.75-25B Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.25 in
U12-0.75-SQB Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.125 in
U12-0.81 Polyurethane U-Seal	0.125 in	0.8125 in	1.063 in	0.125 in
U12-0.87-25B Polyurethane U-Seal	0.125 in	0.875 in	1.125 in	0.25 in
U12-0.87-SQB Polyurethane U-Seal	0.125 in	0.875 in	1.125 in	0.125 in
U12-1.00-18B Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.1875 in
U12-1.00-SQB Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.125 in
U12-1.06-SQB Polyurethane U-Seal	0.125 in	1.0625 in	1.313 in	0.125 in
U12-1.12-25B Polyurethane U-Seal	0.125 in	1.0625 in	1.375 in	0.25 in
U12-1.12-SQB Polyurethane U-Seal	0.125 in	1.0625 in	1.375 in	0.125 in
U12-1.18 Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.125 in
U12-1.18-18B Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.1875 in
U12-1.18-25B Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.25 in
U12-1.25-18B Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.1875 in
U12-1.25-25B Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.25 in
U12-1.37-25B Polyurethane U-Seal	0.125 in	1.375 in	1.625 in	0.25 in
U12-1.37-SQB Polyurethane U-Seal	0.125 in	1.375 in	1.625 in	0.125 in
U12-1.50-25B Polyurethane U-Seal	0.125 in	1.5 in	1.75 in	0.25 in
U12-1.50-SQB Polyurethane U-Seal	0.125 in	1.5 in	1.75 in	0.125 in
U12-1.62-SQB Polyurethane U-Seal	0.125 in	1.625 in	1.875 in	0.125 in
U12-1.75-SQB Polyurethane U-Seal	0.125 in	1.75 in	2 in	0.125 in
U12-2.00 Polyurethane U-Seal	0.125 in	2 in	2.25 in	0.125 in
U12-2.25 Polyurethane U-Seal	0.125 in	2.25 in	2.5 in	0.125 in
U12-2.75 Polyurethane U-Seal	0.125 in	2.75 in	3 in	0.125 in
U15-1.18 Polyurethane U-Seal	0.1563 in	0.188 in	1.5 in	0.1563 in
U15-1.25 Polyurethane U-Seal	0.1563 in	1.25 in	1.563 in	0.1563 in
U15-1.37 Polyurethane U-Seal	0.1563 in	1.375 in	1.688 in	0.1563 in
U18-0.50 Polyurethane U-Seal	0.1875 in	0.5 in	0.875 in	0.1875 in
U18-0.62-31B Polyurethane U-Seal	0.1875 in	0.625 in	1 in	0.3125 in
U18-0.62-SQB Polyurethane U-Seal	0.1875 in	0.625 in	1 in	0.1875 in
U18-0.75-31B Polyurethane U-Seal	0.1875 in	0.75 in	1.125 in	0.3125 in
U18-0.75-SQB Polyurethane U-Seal	0.1875 in	0.75 in	1.125 in	0.1875 in
U18-0.87-31B Polyurethane U-Seal	0.1875 in	0.875 in	1.25 in	0.3125 in
U18-0.87-SQB Polyurethane U-Seal	0.1875 in	0.875 in	1.25 in	0.1875 in
U18-1.00-25B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.25 in
U18-1.00-31B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.3125 in
U18-1.00-37B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.375 in
U18-1.00-SQB Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.1875 in
U18-1.12-25B Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.25 in
U18-1.12-31B Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.3125 in
U18-1.12-SQB Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.1875 in
U18-1.18 Polyurethane U-Seal	0.1875 in	0.188 in	1.563 in	0.1875 in
U18-1.25-25B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.25 in
U18-1.25-31B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.3125 in
U18-1.25-37B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.375 in
U18-1.37-25B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.25 in
U18-1.37-31B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.3125 in
U18-1.37-37B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.375 in
U18-1.37-SQB Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.1875 in
U18-1.50-25B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.25 in
U18-1.50-31B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.3125 in
U18-1.50-37B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.375 in
U18-1.50-SQB Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.1875 in
U18-1.62 Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.1875 in
U18-1.62-25B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.25 in
U18-1.62-31B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.3125 in
U18-1.62-37B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.375 in
U18-1.62-SQB Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.1875 in
U18-1.75-25B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.25 in
U18-1.75-31B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.3125 in
U18-1.75-SQB Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.1875 in
U18-1.87-37B Polyurethane U-Seal	0.1875 in	1.875 in	2.25 in	0.375 in
U18-1.87-SQB Polyurethane U-Seal	0.1875 in	1.875 in	2.25 in	0.1875 in
U18-2.00-31B Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.3125 in
U18-2.00-37B Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.375 in
U18-2.00-SQB Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.1875 in
U18-2.12-25B Polyurethane U-Seal	0.1875 in	2.125 in	2.5 in	0.25 in
U18-2.25-37B Polyurethane U-Seal	0.1875 in	2.25 in	2.625 in	0.375 in
U18-2.25-SQB Polyurethane U-Seal	0.1875 in	2.25 in	2.625 in	0.1875 in
U18-2.37-SQB Polyurethane U-Seal	0.1875 in	2.375 in	2.75 in	0.1875 in
U18-2.50-25B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.25 in
U18-2.50-37B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.375 in
U18-2.50-SQB Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.1875 in
U18-2.62-37B Polyurethane U-Seal	0.1875 in	2.625 in	3 in	0.375 in
U18-2.62-SQB Polyurethane U-Seal	0.1875 in	2.625 in	3 in	0.1875 in
U18-2.75-37B Polyurethane U-Seal	0.1875 in	2.75 in	3.125 in	0.375 in
U18-2.75-SQB Polyurethane U-Seal	0.1875 in	2.75 in	3.125 in	0.1875 in
U18-2.87 Polyurethane U-Seal	0.1875 in	2.875 in	3.25 in	0.1875 in
U18-3.00 Polyurethane U-Seal	0.1875 in	3 in	3.375 in	0.1875 in
U18-3.00-37B Polyurethane U-Seal	0.1875 in	3 in	3.375 in	0.375 in
U18-3.12-37B Polyurethane U-Seal	0.1875 in	3.125 in	3.5 in	0.375 in
U18-3.12-SQB Polyurethane U-Seal	0.1875 in	3.125 in	3.5 in	0.1875 in
U18-3.50-37B Polyurethane U-Seal	0.1875 in	3.5 in	3.875 in	0.375 in
U18-3.62-37B Polyurethane U-Seal	0.1875 in	3.625 in	4 in	0.375 in
U18-3.62-SQB Polyurethane U-Seal	0.1875 in	3.625 in	4 in	0.1875 in
U18-4.00-37B Polyurethane U-Seal	0.1875 in	4 in	4.375 in	0.375 in
U25-0.75 Polyurethane U-Seal	0.25 in	0.75 in	1.25 in	0.25 in
U25-0.93 Polyurethane U-Seal	0.25 in	0.8125 in	1.438 in	0.25 in
U25-1.00-37B Polyurethane U-Seal	0.25 in	1 in	1.5 in	0.375 in
U25-1.00-SQB Polyurethane U-Seal	0.25 in	1 in	1.5 in	0.25 in
U25-1.12 Polyurethane U-Seal	0.25 in	1.0625 in	1.625 in	0.25 in
U25-1.12-37B Polyurethane U-Seal	0.25 in	1.0625 in	1.625 in	0.375 in
U25-1.18 Polyurethane U-Seal	0.25 in	0.188 in	1.688 in	0.25 in
U25-1.25-SQB Polyurethane U-Seal	0.25 in	1.25 in	1.75 in	0.25 in
U25-1.37 Polyurethane U-Seal	0.25 in	1.375 in	1.875 in	0.25 in
U25-1.37-37B Polyurethane U-Seal	0.25 in	1.375 in	1.875 in	0.375 in
U25-1.50-31B Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.3125 in
U25-1.50-SQB Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.25 in
U25-1.75 Polyurethane U-Seal	0.25 in	1.75 in	2.25 in	0.25 in
U25-1.75-37B Polyurethane U-Seal	0.25 in	1.75 in	2.25 in	0.375 in
U25-1.87-37B Polyurethane U-Seal	0.25 in	1.875 in	2.375 in	0.375 in
U25-2.00-31B Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.3125 in
U25-2.00-SQB Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.25 in
U25-2.12-37B Polyurethane U-Seal	0.25 in	2.125 in	2.625 in	0.375 in
U25-2.25 Polyurethane U-Seal	0.25 in	2.25 in	2.75 in	0.25 in
U25-2.25-37B Polyurethane U-Seal	0.25 in	2.25 in	2.75 in	0.375 in
U25-2.37-37B Polyurethane U-Seal	0.25 in	2.375 in	2.875 in	0.375 in
U25-2.50-SQB Polyurethane U-Seal	0.25 in	2.5 in	3 in	0.25 in
U25-2.62-37B Polyurethane U-Seal	0.25 in	2.625 in	3.125 in	0.375 in
U25-2.75-37B Polyurethane U-Seal	0.25 in	2.75 in	3.25 in	0.375 in
U25-2.75-SQB Polyurethane U-Seal	0.25 in	2.75 in	3.25 in	0.25 in
U25-3.25-37B Polyurethane U-Seal	0.25 in	3.25 in	3.75 in	0.375 in
U25-3.50 Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.25 in
U25-3.50-SQB Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.25 in
U25-3.75-37B Polyurethane U-Seal	0.25 in	3.75 in	4.25 in	0.375 in
U25-3.75-SQB Polyurethane U-Seal	0.25 in	3.75 in	4.25 in	0.25 in
U25-4.00-37B Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.375 in
U25-4.00-50D Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.5 in
U25-4.00-56B Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.5625 in
U25-4.50-37B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.375 in
U25-4.50-56B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.5625 in
U25-4.50-62B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.625 in
U25-5.00-37B Polyurethane U-Seal	0.25 in	5 in	5.5 in	0.375 in
U25-5.50 Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.25 in
U25-5.50-37B Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.375 in
U25-5.50-56B Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.5625 in
U31-1.00-50B Polyurethane U-Seal	0.3125 in	1 in	1.625 in	0.5 in
U31-1.25 Polyurethane U-Seal	0.3125 in	1.25 in	1.875 in	0.3125 in
U31-1.25-37B Polyurethane U-Seal	0.3125 in	1.25 in	1.875 in	0.375 in
U31-1.37-37B Polyurethane U-Seal	0.3125 in	1.375 in	2 in	0.375 in
U31-1.37-SQB Polyurethane U-Seal	0.3125 in	1.375 in	2 in	0.3125 in
U31-1.50 Polyurethane U-Seal	0.3125 in	1.5 in	2.125 in	0.3125 in
U31-1.75-37B Polyurethane U-Seal	0.3125 in	1.75 in	2.375 in	0.375 in
U31-1.87 Polyurethane U-Seal	0.3125 in	1.875 in	2.5 in	0.3125 in
U31-2.00 Polyurethane U-Seal	0.3125 in	2 in	2.625 in	0.3125 in
U31-2.00-50B Polyurethane U-Seal	0.3125 in	2 in	2.625 in	0.5 in
U31-2.25-50B Polyurethane U-Seal	0.3125 in	2.25 in	2.875 in	0.5 in
U31-2.37 Polyurethane U-Seal	0.3125 in	2.375 in	3 in	0.3125 in
U31-2.50 Polyurethane U-Seal	0.3125 in	2.5 in	3.125 in	0.3125 in
U31-2.50-50B Polyurethane U-Seal	0.3125 in	2.5 in	3.125 in	0.5 in
U31-2.75 Polyurethane U-Seal	0.3125 in	2.75 in	3.375 in	0.3125 in
U31-2.75-50B Polyurethane U-Seal	0.3125 in	2.75 in	3.375 in	0.5 in
U31-2.87 Polyurethane U-Seal	0.3125 in	2.875 in	3.5 in	0.3125 in
U31-3.00-50B Polyurethane U-Seal	0.3125 in	3 in	3.625 in	0.5 in
U31-3.37-50B Polyurethane U-Seal	0.3125 in	3.375 in	4 in	0.5 in
U31-4.00 Polyurethane U-Seal	0.3125 in	4 in	4.625 in	0.3125 in
U31-4.00-56B Polyurethane U-Seal	0.3125 in	4 in	4.625 in	0.5625 in
U31-4.37 Polyurethane U-Seal	0.3125 in	4.375 in	5 in	0.3125 in
U31-4.50 Polyurethane U-Seal	0.3125 in	4.5 in	5.125 in	0.3125 in
U37-1.25 Polyurethane U-Seal	0.375 in	1.25 in	2 in	0.375 in
U37-1.75 Polyurethane U-Seal	0.375 in	1.75 in	2.5 in	0.375 in
U37-2.50-50B Polyurethane U-Seal	0.375 in	2.5 in	3.25 in	0.5 in
U37-2.75 Polyurethane U-Seal	0.375 in	2.75 in	3.5 in	0.375 in
U37-3.25-50B Polyurethane U-Seal	0.375 in	3.25 in	4 in	0.5 in
U37-3.50 Polyurethane U-Seal	0.375 in	3.5 in	4.25 in	0.375 in
U37-3.75-50D Polyurethane U-Seal	0.375 in	3.75 in	4.5 in	0.5 in
U37-4.00-62B Polyurethane U-Seal	0.375 in	4 in	4.75 in	0.625 in
U37-4.25-50D Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.5 in
U37-4.25-62B Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.625 in
U37-4.25-SQB Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.375 in
U37-4.50-62B Polyurethane U-Seal	0.375 in	4.5 in	5.25 in	0.625 in
U37-5.00-62B Polyurethane U-Seal	0.375 in	5 in	5.75 in	0.625 in
U37-5.25 Polyurethane U-Seal	0.375 in	5.25 in	6 in	0.375 in
U37-5.25-50D Polyurethane U-Seal	0.375 in	5.25 in	6 in	0.5 in
U37-6.25-50D Polyurethane U-Seal	0.375 in	6.25 in	7 in	0.5 in
U50-2.00-SQB Polyurethane U-Seal	0.5 in	2 in	3 in	0.5 in
U50-2.50 Polyurethane U-Seal	0.5 in	2.5 in	3.5 in	0.5 in

Product Questions & Answers (3)

Question by: Lee H on May 4, 2025, 11:40 AM

Got a cylinder rod that measures .8125 on the ID groove side, will this seal drop right in without modification?

Answer by: Customer Support on May 5, 2025, 4:33 PM

For a rod or piston groove sized to accept a 0.8125 in ID and 1.063 in OD with a 0.125 in cross section, yes, this seal should fit without any machining or adjustment. The height and cross section on this one are equal, so standard groove dimensions apply. Worth double-checking your groove depth matches that 0.125 in cross section before you button everything up.

Question by: Wes R on May 2, 2025, 4:54 PM

What kind of pressure can this U-seal handle?

Answer by: Customer Support on May 4, 2025, 1:17 PM

This polyurethane U-seal is rated to handle pressures up to 6,000 PSI.

Question by: Neil B on Nov 24, 2025, 6:23 AM

got a groove cut for a 0.125 seal, will this U-seal fit right or am i off a hair?

Answer by: Customer Support on Nov 26, 2025, 7:12 AM

With a 0.125 inch height and a 0.125 inch cross section, this one matches the common setup where the groove is sized for equal height and cross section. The seal’s ID is 0.8125 inch and OD is 1.063 inch, so it is intended for that size range rather than a slightly thicker profile.
