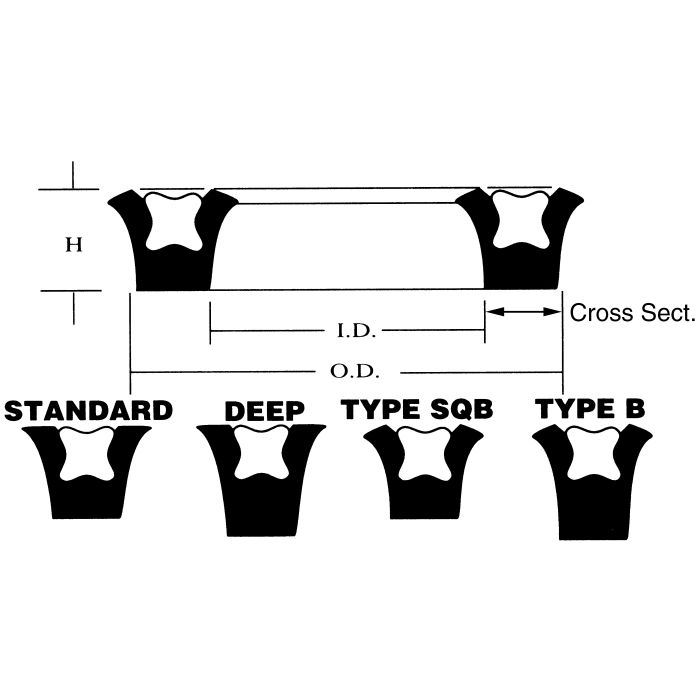

Polyurethane U-Seal, 1.63 Inch OD, 1.38 Inch ID, 0.13 Inch Height

Description & Features

Manufactured from urethane, this seal is rated for pressures from 0 to 6,000 PSI and a temperature range of -65°F to 220°F, making it well-suited for demanding hydraulic cylinder and actuator applications. The beveled lip design provides effective film breaking across the sealing surface. The Polyurethane U-Seal, 1.63 Inch OD, 1.38 Inch ID, 0.13 Inch Height features equal height and cross section dimensions, a square-body (SQB) profile measuring 0.125 inches, and fits a 1.375 inch ID bore with a 1.625 inch OD. Sourced from Hercules Sealing Products under catalog number C1DN14, this U-seal is a reliable choice for dynamic rod and piston sealing in hydraulic equipment.

SKU: U12-1.37-SQB

Supplier Part Number (MPN): U12-1.37-SQB

Alternate Part Numbers: C1DN14, MI-01193941, MINO-00407X60000

Specifications

Cross Section 0.125 in	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	H 0.125 in	I.D. 1.375 in	O.D. 1.625 in	Supplier Part Number U12-1.37-SQB	Alternate Part Numbers Alternate Part Number C1DN14, Alternate Part Number MI-01193941, Alternate Part Number MINO-00407X60000	Product Weight 0.01 lbs

Similar Products

Model Number	Cross Section	I.D.	O.D.	H
U12-0.62-25B Polyurethane U-Seal	0.125 in	0.625 in	0.875 in	0.25 in
U12-1.00-25B Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.25 in
U12-1.25-SQB Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.125 in
U18-1.25-SQB Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.1875 in
U18-1.75-37B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.375 in
U18-2.12-SQB Polyurethane U-Seal	0.1875 in	2.125 in	2.5 in	0.1875 in
U18-2.50-31B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.3125 in
U25-1.25-37B Polyurethane U-Seal	0.25 in	1.25 in	1.75 in	0.375 in
U25-1.50-37B Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.375 in
U25-2.00-37B Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.375 in
U25-2.50-37B Polyurethane U-Seal	0.25 in	2.5 in	3 in	0.375 in
U25-3.00 Polyurethane U-Seal	0.25 in	3 in	3.5 in	0.25 in
U25-3.00-37B Polyurethane U-Seal	0.25 in	3 in	3.5 in	0.375 in
U25-3.50-37B Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.375 in
U25-4.00-SQB Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.25 in
U25-4.50 Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.25 in
U25-5.00 Polyurethane U-Seal	0.25 in	5 in	5.5 in	0.25 in
U12-0.18-25B Polyurethane U-Seal	0.125 in	0.1875 in	0.438 in	0.25 in
U12-0.25-25B Polyurethane U-Seal	0.125 in	0.25 in	0.5 in	0.25 in
U12-0.25-SQB Polyurethane U-Seal	0.125 in	0.25 in	0.5 in	0.125 in
U12-0.31-25B Polyurethane U-Seal	0.125 in	0.3125 in	0.563 in	0.25 in
U12-0.31-SQB Polyurethane U-Seal	0.125 in	0.3125 in	0.563 in	0.125 in
U12-0.37 Polyurethane U-Seal	0.125 in	0.375 in	0.625 in	0.125 in
U12-0.50-25B Polyurethane U-Seal	0.125 in	0.5 in	0.75 in	0.25 in
U12-0.50-SQB Polyurethane U-Seal	0.125 in	0.5 in	0.75 in	0.125 in
U12-0.56 Polyurethane U-Seal	0.125 in	0.625 in	0.938 in	0.125 in
U12-0.62-SQB Polyurethane U-Seal	0.125 in	0.625 in	0.875 in	0.125 in
U12-0.68 Polyurethane U-Seal	0.125 in	0.6875 in	0.938 in	0.125 in
U12-0.75-18B Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.1875 in
U12-0.75-25B Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.25 in
U12-0.75-SQB Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.125 in
U12-0.81 Polyurethane U-Seal	0.125 in	0.8125 in	1.063 in	0.125 in
U12-0.87-25B Polyurethane U-Seal	0.125 in	0.875 in	1.125 in	0.25 in
U12-0.87-SQB Polyurethane U-Seal	0.125 in	0.875 in	1.125 in	0.125 in
U12-1.00-18B Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.1875 in
U12-1.00-SQB Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.125 in
U12-1.06-SQB Polyurethane U-Seal	0.125 in	1.0625 in	1.313 in	0.125 in
U12-1.12-25B Polyurethane U-Seal	0.125 in	1.0625 in	1.375 in	0.25 in
U12-1.12-SQB Polyurethane U-Seal	0.125 in	1.0625 in	1.375 in	0.125 in
U12-1.18 Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.125 in
U12-1.18-18B Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.1875 in
U12-1.18-25B Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.25 in
U12-1.25-18B Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.1875 in
U12-1.25-25B Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.25 in
U12-1.37-25B Polyurethane U-Seal	0.125 in	1.375 in	1.625 in	0.25 in
U12-1.37-SQB Polyurethane U-Seal	0.125 in	1.375 in	1.625 in	0.125 in
U12-1.50-25B Polyurethane U-Seal	0.125 in	1.5 in	1.75 in	0.25 in
U12-1.50-SQB Polyurethane U-Seal	0.125 in	1.5 in	1.75 in	0.125 in
U12-1.62-SQB Polyurethane U-Seal	0.125 in	1.625 in	1.875 in	0.125 in
U12-1.75-SQB Polyurethane U-Seal	0.125 in	1.75 in	2 in	0.125 in
U12-2.00 Polyurethane U-Seal	0.125 in	2 in	2.25 in	0.125 in
U12-2.25 Polyurethane U-Seal	0.125 in	2.25 in	2.5 in	0.125 in
U12-2.75 Polyurethane U-Seal	0.125 in	2.75 in	3 in	0.125 in
U15-1.18 Polyurethane U-Seal	0.1563 in	0.188 in	1.5 in	0.1563 in
U15-1.25 Polyurethane U-Seal	0.1563 in	1.25 in	1.563 in	0.1563 in
U15-1.37 Polyurethane U-Seal	0.1563 in	1.375 in	1.688 in	0.1563 in
U18-0.50 Polyurethane U-Seal	0.1875 in	0.5 in	0.875 in	0.1875 in
U18-0.62-31B Polyurethane U-Seal	0.1875 in	0.625 in	1 in	0.3125 in
U18-0.62-SQB Polyurethane U-Seal	0.1875 in	0.625 in	1 in	0.1875 in
U18-0.75-31B Polyurethane U-Seal	0.1875 in	0.75 in	1.125 in	0.3125 in
U18-0.75-SQB Polyurethane U-Seal	0.1875 in	0.75 in	1.125 in	0.1875 in
U18-0.87-31B Polyurethane U-Seal	0.1875 in	0.875 in	1.25 in	0.3125 in
U18-0.87-SQB Polyurethane U-Seal	0.1875 in	0.875 in	1.25 in	0.1875 in
U18-1.00-25B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.25 in
U18-1.00-31B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.3125 in
U18-1.00-37B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.375 in
U18-1.00-SQB Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.1875 in
U18-1.12-25B Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.25 in
U18-1.12-31B Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.3125 in
U18-1.12-SQB Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.1875 in
U18-1.18 Polyurethane U-Seal	0.1875 in	0.188 in	1.563 in	0.1875 in
U18-1.25-25B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.25 in
U18-1.25-31B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.3125 in
U18-1.25-37B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.375 in
U18-1.37-25B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.25 in
U18-1.37-31B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.3125 in
U18-1.37-37B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.375 in
U18-1.37-SQB Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.1875 in
U18-1.50-25B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.25 in
U18-1.50-31B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.3125 in
U18-1.50-37B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.375 in
U18-1.50-SQB Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.1875 in
U18-1.62 Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.1875 in
U18-1.62-25B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.25 in
U18-1.62-31B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.3125 in
U18-1.62-37B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.375 in
U18-1.62-SQB Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.1875 in
U18-1.75-25B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.25 in
U18-1.75-31B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.3125 in
U18-1.75-SQB Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.1875 in
U18-1.87-37B Polyurethane U-Seal	0.1875 in	1.875 in	2.25 in	0.375 in
U18-1.87-SQB Polyurethane U-Seal	0.1875 in	1.875 in	2.25 in	0.1875 in
U18-2.00-31B Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.3125 in
U18-2.00-37B Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.375 in
U18-2.00-SQB Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.1875 in
U18-2.12-25B Polyurethane U-Seal	0.1875 in	2.125 in	2.5 in	0.25 in
U18-2.25-37B Polyurethane U-Seal	0.1875 in	2.25 in	2.625 in	0.375 in
U18-2.25-SQB Polyurethane U-Seal	0.1875 in	2.25 in	2.625 in	0.1875 in
U18-2.37-SQB Polyurethane U-Seal	0.1875 in	2.375 in	2.75 in	0.1875 in
U18-2.50-25B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.25 in
U18-2.50-37B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.375 in
U18-2.50-SQB Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.1875 in
U18-2.62-37B Polyurethane U-Seal	0.1875 in	2.625 in	3 in	0.375 in
U18-2.62-SQB Polyurethane U-Seal	0.1875 in	2.625 in	3 in	0.1875 in
U18-2.75-37B Polyurethane U-Seal	0.1875 in	2.75 in	3.125 in	0.375 in
U18-2.75-SQB Polyurethane U-Seal	0.1875 in	2.75 in	3.125 in	0.1875 in
U18-2.87 Polyurethane U-Seal	0.1875 in	2.875 in	3.25 in	0.1875 in
U18-3.00 Polyurethane U-Seal	0.1875 in	3 in	3.375 in	0.1875 in
U18-3.00-37B Polyurethane U-Seal	0.1875 in	3 in	3.375 in	0.375 in
U18-3.12-37B Polyurethane U-Seal	0.1875 in	3.125 in	3.5 in	0.375 in
U18-3.12-SQB Polyurethane U-Seal	0.1875 in	3.125 in	3.5 in	0.1875 in
U18-3.50-37B Polyurethane U-Seal	0.1875 in	3.5 in	3.875 in	0.375 in
U18-3.62-37B Polyurethane U-Seal	0.1875 in	3.625 in	4 in	0.375 in
U18-3.62-SQB Polyurethane U-Seal	0.1875 in	3.625 in	4 in	0.1875 in
U18-4.00-37B Polyurethane U-Seal	0.1875 in	4 in	4.375 in	0.375 in
U25-0.75 Polyurethane U-Seal	0.25 in	0.75 in	1.25 in	0.25 in
U25-0.93 Polyurethane U-Seal	0.25 in	0.8125 in	1.438 in	0.25 in
U25-1.00-37B Polyurethane U-Seal	0.25 in	1 in	1.5 in	0.375 in
U25-1.00-SQB Polyurethane U-Seal	0.25 in	1 in	1.5 in	0.25 in
U25-1.12 Polyurethane U-Seal	0.25 in	1.0625 in	1.625 in	0.25 in
U25-1.12-37B Polyurethane U-Seal	0.25 in	1.0625 in	1.625 in	0.375 in
U25-1.18 Polyurethane U-Seal	0.25 in	0.188 in	1.688 in	0.25 in
U25-1.25-SQB Polyurethane U-Seal	0.25 in	1.25 in	1.75 in	0.25 in
U25-1.37 Polyurethane U-Seal	0.25 in	1.375 in	1.875 in	0.25 in
U25-1.37-37B Polyurethane U-Seal	0.25 in	1.375 in	1.875 in	0.375 in
U25-1.50-31B Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.3125 in
U25-1.50-SQB Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.25 in
U25-1.75 Polyurethane U-Seal	0.25 in	1.75 in	2.25 in	0.25 in
U25-1.75-37B Polyurethane U-Seal	0.25 in	1.75 in	2.25 in	0.375 in
U25-1.87-37B Polyurethane U-Seal	0.25 in	1.875 in	2.375 in	0.375 in
U25-2.00-31B Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.3125 in
U25-2.00-SQB Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.25 in
U25-2.12-37B Polyurethane U-Seal	0.25 in	2.125 in	2.625 in	0.375 in
U25-2.25 Polyurethane U-Seal	0.25 in	2.25 in	2.75 in	0.25 in
U25-2.25-37B Polyurethane U-Seal	0.25 in	2.25 in	2.75 in	0.375 in
U25-2.37-37B Polyurethane U-Seal	0.25 in	2.375 in	2.875 in	0.375 in
U25-2.50-SQB Polyurethane U-Seal	0.25 in	2.5 in	3 in	0.25 in
U25-2.62-37B Polyurethane U-Seal	0.25 in	2.625 in	3.125 in	0.375 in
U25-2.75-37B Polyurethane U-Seal	0.25 in	2.75 in	3.25 in	0.375 in
U25-2.75-SQB Polyurethane U-Seal	0.25 in	2.75 in	3.25 in	0.25 in
U25-3.25-37B Polyurethane U-Seal	0.25 in	3.25 in	3.75 in	0.375 in
U25-3.50 Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.25 in
U25-3.50-SQB Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.25 in
U25-3.75-37B Polyurethane U-Seal	0.25 in	3.75 in	4.25 in	0.375 in
U25-3.75-SQB Polyurethane U-Seal	0.25 in	3.75 in	4.25 in	0.25 in
U25-4.00-37B Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.375 in
U25-4.00-50D Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.5 in
U25-4.00-56B Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.5625 in
U25-4.50-37B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.375 in
U25-4.50-56B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.5625 in
U25-4.50-62B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.625 in
U25-5.00-37B Polyurethane U-Seal	0.25 in	5 in	5.5 in	0.375 in
U25-5.50 Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.25 in
U25-5.50-37B Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.375 in
U25-5.50-56B Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.5625 in
U31-1.00-50B Polyurethane U-Seal	0.3125 in	1 in	1.625 in	0.5 in
U31-1.25 Polyurethane U-Seal	0.3125 in	1.25 in	1.875 in	0.3125 in
U31-1.25-37B Polyurethane U-Seal	0.3125 in	1.25 in	1.875 in	0.375 in
U31-1.37-37B Polyurethane U-Seal	0.3125 in	1.375 in	2 in	0.375 in
U31-1.37-SQB Polyurethane U-Seal	0.3125 in	1.375 in	2 in	0.3125 in
U31-1.50 Polyurethane U-Seal	0.3125 in	1.5 in	2.125 in	0.3125 in
U31-1.75-37B Polyurethane U-Seal	0.3125 in	1.75 in	2.375 in	0.375 in
U31-1.87 Polyurethane U-Seal	0.3125 in	1.875 in	2.5 in	0.3125 in
U31-2.00 Polyurethane U-Seal	0.3125 in	2 in	2.625 in	0.3125 in
U31-2.00-50B Polyurethane U-Seal	0.3125 in	2 in	2.625 in	0.5 in
U31-2.25-50B Polyurethane U-Seal	0.3125 in	2.25 in	2.875 in	0.5 in
U31-2.37 Polyurethane U-Seal	0.3125 in	2.375 in	3 in	0.3125 in
U31-2.50 Polyurethane U-Seal	0.3125 in	2.5 in	3.125 in	0.3125 in
U31-2.50-50B Polyurethane U-Seal	0.3125 in	2.5 in	3.125 in	0.5 in
U31-2.75 Polyurethane U-Seal	0.3125 in	2.75 in	3.375 in	0.3125 in
U31-2.75-50B Polyurethane U-Seal	0.3125 in	2.75 in	3.375 in	0.5 in
U31-2.87 Polyurethane U-Seal	0.3125 in	2.875 in	3.5 in	0.3125 in
U31-3.00-50B Polyurethane U-Seal	0.3125 in	3 in	3.625 in	0.5 in
U31-3.37-50B Polyurethane U-Seal	0.3125 in	3.375 in	4 in	0.5 in
U31-4.00 Polyurethane U-Seal	0.3125 in	4 in	4.625 in	0.3125 in
U31-4.00-56B Polyurethane U-Seal	0.3125 in	4 in	4.625 in	0.5625 in
U31-4.37 Polyurethane U-Seal	0.3125 in	4.375 in	5 in	0.3125 in
U31-4.50 Polyurethane U-Seal	0.3125 in	4.5 in	5.125 in	0.3125 in
U37-1.25 Polyurethane U-Seal	0.375 in	1.25 in	2 in	0.375 in
U37-1.75 Polyurethane U-Seal	0.375 in	1.75 in	2.5 in	0.375 in
U37-2.50-50B Polyurethane U-Seal	0.375 in	2.5 in	3.25 in	0.5 in
U37-2.75 Polyurethane U-Seal	0.375 in	2.75 in	3.5 in	0.375 in
U37-3.25-50B Polyurethane U-Seal	0.375 in	3.25 in	4 in	0.5 in
U37-3.50 Polyurethane U-Seal	0.375 in	3.5 in	4.25 in	0.375 in
U37-3.75-50D Polyurethane U-Seal	0.375 in	3.75 in	4.5 in	0.5 in
U37-4.00-62B Polyurethane U-Seal	0.375 in	4 in	4.75 in	0.625 in
U37-4.25-50D Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.5 in
U37-4.25-62B Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.625 in
U37-4.25-SQB Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.375 in
U37-4.50-62B Polyurethane U-Seal	0.375 in	4.5 in	5.25 in	0.625 in
U37-5.00-62B Polyurethane U-Seal	0.375 in	5 in	5.75 in	0.625 in
U37-5.25 Polyurethane U-Seal	0.375 in	5.25 in	6 in	0.375 in
U37-5.25-50D Polyurethane U-Seal	0.375 in	5.25 in	6 in	0.5 in
U37-6.25-50D Polyurethane U-Seal	0.375 in	6.25 in	7 in	0.5 in
U50-2.00-SQB Polyurethane U-Seal	0.5 in	2 in	3 in	0.5 in
U50-2.50 Polyurethane U-Seal	0.5 in	2.5 in	3.5 in	0.5 in

Product Questions & Answers (3)

Question by: Terry C on Aug 8, 2025, 8:43 PM

got a cylinder bore that’s 1.375 ID. is this u-seal the right size or am i off a hair?

Answer by: Customer Support on Aug 10, 2025, 8:16 AM

The key numbers are the 1.375 inch ID and 1.625 inch OD. This U-seal is meant to fit a 1.375 inch ID bore with a 1.625 inch OD, and it has a 0.125 inch square-body (SQB) cross section.

Question by: Norm R on Nov 7, 2025, 1:36 PM

Got a hydraulic cylinder with a 1.375 inch bore and 1.625 inch OD groove, this the right seal for that?

Answer by: Customer Support on Nov 9, 2025, 6:15 AM

Those dimensions match up exactly. The seal runs 1.375 inches on the ID and 1.625 inches on the OD, with a 0.125 inch cross section and equal height, so it should drop right into a groove cut to those specs. It's a square-body profile, which is pretty common on rod and piston applications in hydraulic cylinders and actuators.

Question by: Jimmy R on Jan 14, 2026, 3:57 PM

What kinda temps can this little fella handle?

Answer by: Customer Support on Jan 15, 2026, 5:30 PM

This urethane U-seal is rated to handle temperatures from -65°F to 220°F.
