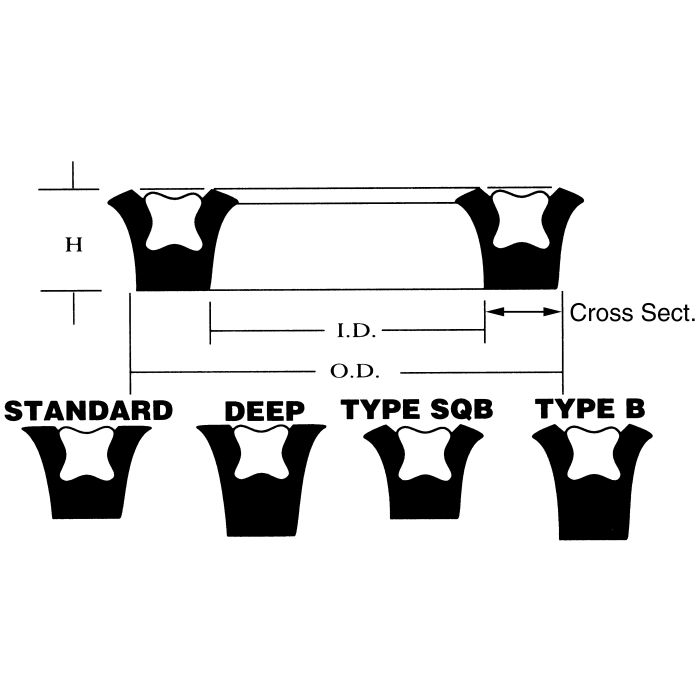

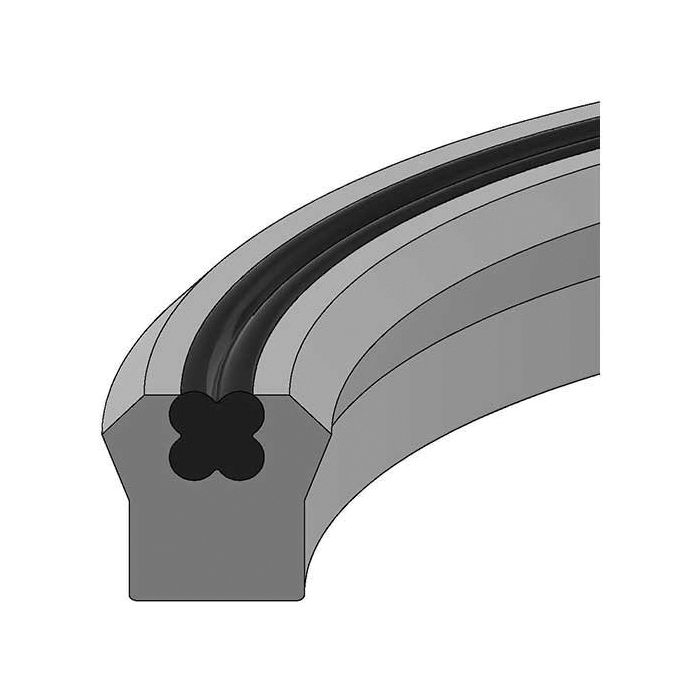

Polyurethane U-Seal, 3.50 Inch OD, 3.13 Inch ID, 0.19 Inch Height

Description & Features

Designed for hydraulic cylinder and linear actuator applications, the Polyurethane U-Seal, 3.50 Inch OD, 3.13 Inch ID, 0.19 Inch Height is a beveled-lip rod or piston seal suited for demanding fluid power environments. The beveled lip geometry promotes effective film breaking, supporting consistent sealing performance across a wide range of operating conditions.

Manufactured from urethane, this seal handles pressures from 0 to 6,000 PSI and operates across a temperature range of -65°F to 220°F. With an OD of 3.500 in, an ID of 3.125 in, and a cross section of 0.1875 in, the height and cross section are equal, consistent with the standard SQB profile. Supplied by Hercules Sealing Products, it is a dependable choice for replacement or maintenance use in hydraulic systems requiring a proven U-seal configuration.

SKU: U18-3.12-SQB

Supplier Part Number (MPN): U18-3.12-SQB

Alternate Part Numbers: C1DN82, MI-01198699, MINO-00407X60428

Specifications

Cross Section 0.1875 in	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	H 0.1875 in	I.D. 3.125 in	O.D. 3.5 in	Supplier Part Number U18-3.12-SQB	Alternate Part Numbers Alternate Part Number C1DN82, Alternate Part Number MI-01198699, Alternate Part Number MINO-00407X60428	Product Weight 0.02 lbs
