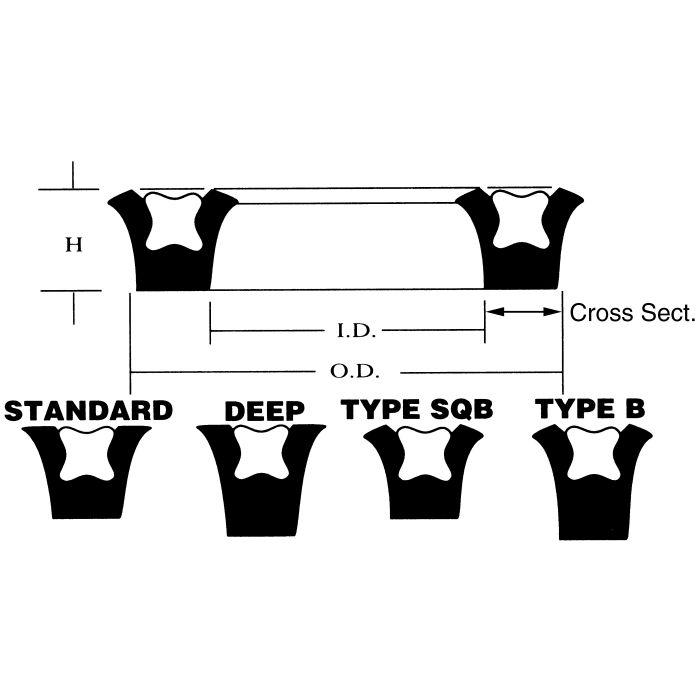

Polyurethane U-Seal, 5.13 Inch OD, 4.50 Inch ID, 0.31 Inch Height

Description & Features

Manufactured by Hercules Sealing Products, this Polyurethane U-Seal, 5.13 Inch OD, 4.50 Inch ID, 0.31 Inch Height is a urethane rod or piston seal designed for hydraulic cylinder applications requiring reliable sealing across a broad range of conditions. With an outer diameter of 5.125 inches, inner diameter of 4.500 inches, and a cross section of 0.3125 inches, this seal features a height equal to its cross section, a standard-type configuration suited to typical cylinder bore and rod groove dimensions.

Constructed from polyurethane, this seal is rated for pressures from 0 to 6,000 PSI and handles temperatures ranging from -65°F to 220°F. The beveled lip design supports effective film breaking across the sealing surface. These characteristics make it well suited to demanding hydraulic environments where dimensional stability and broad pressure tolerance are required.

SKU: U31-4.50

Supplier Part Number (MPN): U31-4.50

Alternate Part Numbers: C1DQ35

Specifications

Cross Section 0.3125 in	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	H 0.3125 in	I.D. 4.5 in	O.D. 5.125 in	Supplier Part Number U31-4.50	Alternate Part Numbers Alternate Part Number C1DQ35	Product Weight 0.07 lbs

Similar Products

Model Number	Cross Section	I.D.	O.D.	H
U12-0.62-25B Polyurethane U-Seal	0.125 in	0.625 in	0.875 in	0.25 in
U12-1.00-25B Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.25 in
U12-1.25-SQB Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.125 in
U18-1.25-SQB Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.1875 in
U18-1.75-37B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.375 in
U18-2.12-SQB Polyurethane U-Seal	0.1875 in	2.125 in	2.5 in	0.1875 in
U18-2.50-31B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.3125 in
U25-1.25-37B Polyurethane U-Seal	0.25 in	1.25 in	1.75 in	0.375 in
U25-1.50-37B Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.375 in
U25-2.00-37B Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.375 in
U25-2.50-37B Polyurethane U-Seal	0.25 in	2.5 in	3 in	0.375 in
U25-3.00 Polyurethane U-Seal	0.25 in	3 in	3.5 in	0.25 in
U25-3.00-37B Polyurethane U-Seal	0.25 in	3 in	3.5 in	0.375 in
U25-3.50-37B Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.375 in
U25-4.00-SQB Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.25 in
U25-4.50 Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.25 in
U25-5.00 Polyurethane U-Seal	0.25 in	5 in	5.5 in	0.25 in
U12-0.18-25B Polyurethane U-Seal	0.125 in	0.1875 in	0.438 in	0.25 in
U12-0.25-25B Polyurethane U-Seal	0.125 in	0.25 in	0.5 in	0.25 in
U12-0.25-SQB Polyurethane U-Seal	0.125 in	0.25 in	0.5 in	0.125 in
U12-0.31-25B Polyurethane U-Seal	0.125 in	0.3125 in	0.563 in	0.25 in
U12-0.31-SQB Polyurethane U-Seal	0.125 in	0.3125 in	0.563 in	0.125 in
U12-0.37 Polyurethane U-Seal	0.125 in	0.375 in	0.625 in	0.125 in
U12-0.50-25B Polyurethane U-Seal	0.125 in	0.5 in	0.75 in	0.25 in
U12-0.50-SQB Polyurethane U-Seal	0.125 in	0.5 in	0.75 in	0.125 in
U12-0.56 Polyurethane U-Seal	0.125 in	0.625 in	0.938 in	0.125 in
U12-0.62-SQB Polyurethane U-Seal	0.125 in	0.625 in	0.875 in	0.125 in
U12-0.68 Polyurethane U-Seal	0.125 in	0.6875 in	0.938 in	0.125 in
U12-0.75-18B Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.1875 in
U12-0.75-25B Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.25 in
U12-0.75-SQB Polyurethane U-Seal	0.125 in	0.75 in	1 in	0.125 in
U12-0.81 Polyurethane U-Seal	0.125 in	0.8125 in	1.063 in	0.125 in
U12-0.87-25B Polyurethane U-Seal	0.125 in	0.875 in	1.125 in	0.25 in
U12-0.87-SQB Polyurethane U-Seal	0.125 in	0.875 in	1.125 in	0.125 in
U12-1.00-18B Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.1875 in
U12-1.00-SQB Polyurethane U-Seal	0.125 in	1 in	1.25 in	0.125 in
U12-1.06-SQB Polyurethane U-Seal	0.125 in	1.0625 in	1.313 in	0.125 in
U12-1.12-25B Polyurethane U-Seal	0.125 in	1.0625 in	1.375 in	0.25 in
U12-1.12-SQB Polyurethane U-Seal	0.125 in	1.0625 in	1.375 in	0.125 in
U12-1.18 Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.125 in
U12-1.18-18B Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.1875 in
U12-1.18-25B Polyurethane U-Seal	0.125 in	0.188 in	1.438 in	0.25 in
U12-1.25-18B Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.1875 in
U12-1.25-25B Polyurethane U-Seal	0.125 in	1.25 in	1.5 in	0.25 in
U12-1.37-25B Polyurethane U-Seal	0.125 in	1.375 in	1.625 in	0.25 in
U12-1.37-SQB Polyurethane U-Seal	0.125 in	1.375 in	1.625 in	0.125 in
U12-1.50-25B Polyurethane U-Seal	0.125 in	1.5 in	1.75 in	0.25 in
U12-1.50-SQB Polyurethane U-Seal	0.125 in	1.5 in	1.75 in	0.125 in
U12-1.62-SQB Polyurethane U-Seal	0.125 in	1.625 in	1.875 in	0.125 in
U12-1.75-SQB Polyurethane U-Seal	0.125 in	1.75 in	2 in	0.125 in
U12-2.00 Polyurethane U-Seal	0.125 in	2 in	2.25 in	0.125 in
U12-2.25 Polyurethane U-Seal	0.125 in	2.25 in	2.5 in	0.125 in
U12-2.75 Polyurethane U-Seal	0.125 in	2.75 in	3 in	0.125 in
U15-1.18 Polyurethane U-Seal	0.1563 in	0.188 in	1.5 in	0.1563 in
U15-1.25 Polyurethane U-Seal	0.1563 in	1.25 in	1.563 in	0.1563 in
U15-1.37 Polyurethane U-Seal	0.1563 in	1.375 in	1.688 in	0.1563 in
U18-0.50 Polyurethane U-Seal	0.1875 in	0.5 in	0.875 in	0.1875 in
U18-0.62-31B Polyurethane U-Seal	0.1875 in	0.625 in	1 in	0.3125 in
U18-0.62-SQB Polyurethane U-Seal	0.1875 in	0.625 in	1 in	0.1875 in
U18-0.75-31B Polyurethane U-Seal	0.1875 in	0.75 in	1.125 in	0.3125 in
U18-0.75-SQB Polyurethane U-Seal	0.1875 in	0.75 in	1.125 in	0.1875 in
U18-0.87-31B Polyurethane U-Seal	0.1875 in	0.875 in	1.25 in	0.3125 in
U18-0.87-SQB Polyurethane U-Seal	0.1875 in	0.875 in	1.25 in	0.1875 in
U18-1.00-25B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.25 in
U18-1.00-31B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.3125 in
U18-1.00-37B Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.375 in
U18-1.00-SQB Polyurethane U-Seal	0.1875 in	1 in	1.375 in	0.1875 in
U18-1.12-25B Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.25 in
U18-1.12-31B Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.3125 in
U18-1.12-SQB Polyurethane U-Seal	0.1875 in	1.0625 in	1.5 in	0.1875 in
U18-1.18 Polyurethane U-Seal	0.1875 in	0.188 in	1.563 in	0.1875 in
U18-1.25-25B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.25 in
U18-1.25-31B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.3125 in
U18-1.25-37B Polyurethane U-Seal	0.1875 in	1.25 in	1.625 in	0.375 in
U18-1.37-25B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.25 in
U18-1.37-31B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.3125 in
U18-1.37-37B Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.375 in
U18-1.37-SQB Polyurethane U-Seal	0.1875 in	1.375 in	1.75 in	0.1875 in
U18-1.50-25B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.25 in
U18-1.50-31B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.3125 in
U18-1.50-37B Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.375 in
U18-1.50-SQB Polyurethane U-Seal	0.1875 in	1.5 in	1.875 in	0.1875 in
U18-1.62 Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.1875 in
U18-1.62-25B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.25 in
U18-1.62-31B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.3125 in
U18-1.62-37B Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.375 in
U18-1.62-SQB Polyurethane U-Seal	0.1875 in	1.625 in	2 in	0.1875 in
U18-1.75-25B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.25 in
U18-1.75-31B Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.3125 in
U18-1.75-SQB Polyurethane U-Seal	0.1875 in	1.75 in	2.125 in	0.1875 in
U18-1.87-37B Polyurethane U-Seal	0.1875 in	1.875 in	2.25 in	0.375 in
U18-1.87-SQB Polyurethane U-Seal	0.1875 in	1.875 in	2.25 in	0.1875 in
U18-2.00-31B Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.3125 in
U18-2.00-37B Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.375 in
U18-2.00-SQB Polyurethane U-Seal	0.1875 in	2 in	2.375 in	0.1875 in
U18-2.12-25B Polyurethane U-Seal	0.1875 in	2.125 in	2.5 in	0.25 in
U18-2.25-37B Polyurethane U-Seal	0.1875 in	2.25 in	2.625 in	0.375 in
U18-2.25-SQB Polyurethane U-Seal	0.1875 in	2.25 in	2.625 in	0.1875 in
U18-2.37-SQB Polyurethane U-Seal	0.1875 in	2.375 in	2.75 in	0.1875 in
U18-2.50-25B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.25 in
U18-2.50-37B Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.375 in
U18-2.50-SQB Polyurethane U-Seal	0.1875 in	2.5 in	2.875 in	0.1875 in
U18-2.62-37B Polyurethane U-Seal	0.1875 in	2.625 in	3 in	0.375 in
U18-2.62-SQB Polyurethane U-Seal	0.1875 in	2.625 in	3 in	0.1875 in
U18-2.75-37B Polyurethane U-Seal	0.1875 in	2.75 in	3.125 in	0.375 in
U18-2.75-SQB Polyurethane U-Seal	0.1875 in	2.75 in	3.125 in	0.1875 in
U18-2.87 Polyurethane U-Seal	0.1875 in	2.875 in	3.25 in	0.1875 in
U18-3.00 Polyurethane U-Seal	0.1875 in	3 in	3.375 in	0.1875 in
U18-3.00-37B Polyurethane U-Seal	0.1875 in	3 in	3.375 in	0.375 in
U18-3.12-37B Polyurethane U-Seal	0.1875 in	3.125 in	3.5 in	0.375 in
U18-3.12-SQB Polyurethane U-Seal	0.1875 in	3.125 in	3.5 in	0.1875 in
U18-3.50-37B Polyurethane U-Seal	0.1875 in	3.5 in	3.875 in	0.375 in
U18-3.62-37B Polyurethane U-Seal	0.1875 in	3.625 in	4 in	0.375 in
U18-3.62-SQB Polyurethane U-Seal	0.1875 in	3.625 in	4 in	0.1875 in
U18-4.00-37B Polyurethane U-Seal	0.1875 in	4 in	4.375 in	0.375 in
U25-0.75 Polyurethane U-Seal	0.25 in	0.75 in	1.25 in	0.25 in
U25-0.93 Polyurethane U-Seal	0.25 in	0.8125 in	1.438 in	0.25 in
U25-1.00-37B Polyurethane U-Seal	0.25 in	1 in	1.5 in	0.375 in
U25-1.00-SQB Polyurethane U-Seal	0.25 in	1 in	1.5 in	0.25 in
U25-1.12 Polyurethane U-Seal	0.25 in	1.0625 in	1.625 in	0.25 in
U25-1.12-37B Polyurethane U-Seal	0.25 in	1.0625 in	1.625 in	0.375 in
U25-1.18 Polyurethane U-Seal	0.25 in	0.188 in	1.688 in	0.25 in
U25-1.25-SQB Polyurethane U-Seal	0.25 in	1.25 in	1.75 in	0.25 in
U25-1.37 Polyurethane U-Seal	0.25 in	1.375 in	1.875 in	0.25 in
U25-1.37-37B Polyurethane U-Seal	0.25 in	1.375 in	1.875 in	0.375 in
U25-1.50-31B Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.3125 in
U25-1.50-SQB Polyurethane U-Seal	0.25 in	1.5 in	2 in	0.25 in
U25-1.75 Polyurethane U-Seal	0.25 in	1.75 in	2.25 in	0.25 in
U25-1.75-37B Polyurethane U-Seal	0.25 in	1.75 in	2.25 in	0.375 in
U25-1.87-37B Polyurethane U-Seal	0.25 in	1.875 in	2.375 in	0.375 in
U25-2.00-31B Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.3125 in
U25-2.00-SQB Polyurethane U-Seal	0.25 in	2 in	2.5 in	0.25 in
U25-2.12-37B Polyurethane U-Seal	0.25 in	2.125 in	2.625 in	0.375 in
U25-2.25 Polyurethane U-Seal	0.25 in	2.25 in	2.75 in	0.25 in
U25-2.25-37B Polyurethane U-Seal	0.25 in	2.25 in	2.75 in	0.375 in
U25-2.37-37B Polyurethane U-Seal	0.25 in	2.375 in	2.875 in	0.375 in
U25-2.50-SQB Polyurethane U-Seal	0.25 in	2.5 in	3 in	0.25 in
U25-2.62-37B Polyurethane U-Seal	0.25 in	2.625 in	3.125 in	0.375 in
U25-2.75-37B Polyurethane U-Seal	0.25 in	2.75 in	3.25 in	0.375 in
U25-2.75-SQB Polyurethane U-Seal	0.25 in	2.75 in	3.25 in	0.25 in
U25-3.25-37B Polyurethane U-Seal	0.25 in	3.25 in	3.75 in	0.375 in
U25-3.50 Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.25 in
U25-3.50-SQB Polyurethane U-Seal	0.25 in	3.5 in	4 in	0.25 in
U25-3.75-37B Polyurethane U-Seal	0.25 in	3.75 in	4.25 in	0.375 in
U25-3.75-SQB Polyurethane U-Seal	0.25 in	3.75 in	4.25 in	0.25 in
U25-4.00-37B Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.375 in
U25-4.00-50D Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.5 in
U25-4.00-56B Polyurethane U-Seal	0.25 in	4 in	4.5 in	0.5625 in
U25-4.50-37B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.375 in
U25-4.50-56B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.5625 in
U25-4.50-62B Polyurethane U-Seal	0.25 in	4.5 in	5 in	0.625 in
U25-5.00-37B Polyurethane U-Seal	0.25 in	5 in	5.5 in	0.375 in
U25-5.50 Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.25 in
U25-5.50-37B Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.375 in
U25-5.50-56B Polyurethane U-Seal	0.25 in	5.5 in	6 in	0.5625 in
U31-1.00-50B Polyurethane U-Seal	0.3125 in	1 in	1.625 in	0.5 in
U31-1.25 Polyurethane U-Seal	0.3125 in	1.25 in	1.875 in	0.3125 in
U31-1.25-37B Polyurethane U-Seal	0.3125 in	1.25 in	1.875 in	0.375 in
U31-1.37-37B Polyurethane U-Seal	0.3125 in	1.375 in	2 in	0.375 in
U31-1.37-SQB Polyurethane U-Seal	0.3125 in	1.375 in	2 in	0.3125 in
U31-1.50 Polyurethane U-Seal	0.3125 in	1.5 in	2.125 in	0.3125 in
U31-1.75-37B Polyurethane U-Seal	0.3125 in	1.75 in	2.375 in	0.375 in
U31-1.87 Polyurethane U-Seal	0.3125 in	1.875 in	2.5 in	0.3125 in
U31-2.00 Polyurethane U-Seal	0.3125 in	2 in	2.625 in	0.3125 in
U31-2.00-50B Polyurethane U-Seal	0.3125 in	2 in	2.625 in	0.5 in
U31-2.25-50B Polyurethane U-Seal	0.3125 in	2.25 in	2.875 in	0.5 in
U31-2.37 Polyurethane U-Seal	0.3125 in	2.375 in	3 in	0.3125 in
U31-2.50 Polyurethane U-Seal	0.3125 in	2.5 in	3.125 in	0.3125 in
U31-2.50-50B Polyurethane U-Seal	0.3125 in	2.5 in	3.125 in	0.5 in
U31-2.75 Polyurethane U-Seal	0.3125 in	2.75 in	3.375 in	0.3125 in
U31-2.75-50B Polyurethane U-Seal	0.3125 in	2.75 in	3.375 in	0.5 in
U31-2.87 Polyurethane U-Seal	0.3125 in	2.875 in	3.5 in	0.3125 in
U31-3.00-50B Polyurethane U-Seal	0.3125 in	3 in	3.625 in	0.5 in
U31-3.37-50B Polyurethane U-Seal	0.3125 in	3.375 in	4 in	0.5 in
U31-4.00 Polyurethane U-Seal	0.3125 in	4 in	4.625 in	0.3125 in
U31-4.00-56B Polyurethane U-Seal	0.3125 in	4 in	4.625 in	0.5625 in
U31-4.37 Polyurethane U-Seal	0.3125 in	4.375 in	5 in	0.3125 in
U31-4.50 Polyurethane U-Seal	0.3125 in	4.5 in	5.125 in	0.3125 in
U37-1.25 Polyurethane U-Seal	0.375 in	1.25 in	2 in	0.375 in
U37-1.75 Polyurethane U-Seal	0.375 in	1.75 in	2.5 in	0.375 in
U37-2.50-50B Polyurethane U-Seal	0.375 in	2.5 in	3.25 in	0.5 in
U37-2.75 Polyurethane U-Seal	0.375 in	2.75 in	3.5 in	0.375 in
U37-3.25-50B Polyurethane U-Seal	0.375 in	3.25 in	4 in	0.5 in
U37-3.50 Polyurethane U-Seal	0.375 in	3.5 in	4.25 in	0.375 in
U37-3.75-50D Polyurethane U-Seal	0.375 in	3.75 in	4.5 in	0.5 in
U37-4.00-62B Polyurethane U-Seal	0.375 in	4 in	4.75 in	0.625 in
U37-4.25-50D Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.5 in
U37-4.25-62B Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.625 in
U37-4.25-SQB Polyurethane U-Seal	0.375 in	4.25 in	5 in	0.375 in
U37-4.50-62B Polyurethane U-Seal	0.375 in	4.5 in	5.25 in	0.625 in
U37-5.00-62B Polyurethane U-Seal	0.375 in	5 in	5.75 in	0.625 in
U37-5.25 Polyurethane U-Seal	0.375 in	5.25 in	6 in	0.375 in
U37-5.25-50D Polyurethane U-Seal	0.375 in	5.25 in	6 in	0.5 in
U37-6.25-50D Polyurethane U-Seal	0.375 in	6.25 in	7 in	0.5 in
U50-2.00-SQB Polyurethane U-Seal	0.5 in	2 in	3 in	0.5 in
U50-2.50 Polyurethane U-Seal	0.5 in	2.5 in	3.5 in	0.5 in

Product Questions & Answers (3)

Question by: Todd B on Feb 10, 2026, 1:24 PM

Got a cylinder with a 4.5 inch rod and a 5.125 inch bore groove, this the right size seal for that setup?

Answer by: Customer Support on Feb 11, 2026, 3:17 PM

Yeah, those dimensions line up exactly. The seal runs 4.500 inches on the ID, 5.125 inches on the OD, and the cross section comes in at 0.3125 inches with a height to match. If your groove is cut for those numbers, you're good to go.

Question by: Connie W on Jan 25, 2026, 6:40 AM

got a cylinder that takes a u-seal, how do i know if this one matches up right?

Answer by: Customer Support on Jan 27, 2026, 6:26 AM

Fit comes down to the three dimensions on this seal: 5.125 inch OD, 4.500 inch ID, and 0.3125 inch cross section with a 0.3125 inch height. If your cylinder bore and rod or piston groove are set up for those numbers and a standard type U-seal where height equals cross section, this is the right size family.

Question by: Danny J on Jan 28, 2026, 3:23 PM

What kinda pressure can this seal handle without blowing out?

Answer by: Customer Support on Jan 29, 2026, 7:41 PM

Rated to handle pressures from 0 to 6,000 PSI, this polyurethane U-seal provides a reliable seal across a broad range of hydraulic cylinder applications.
