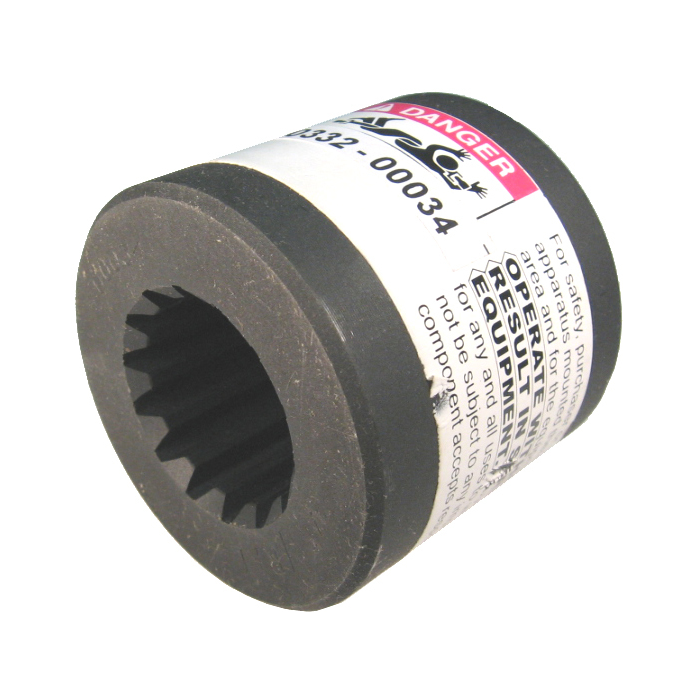

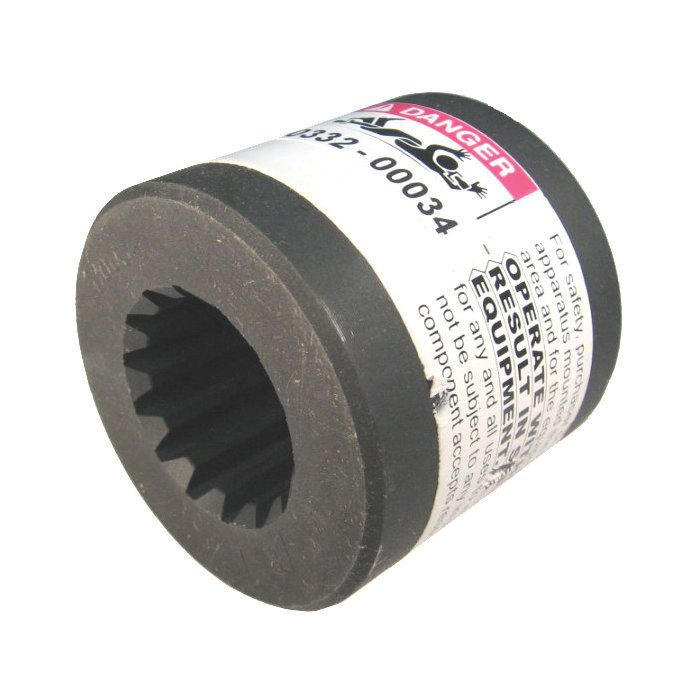

Precision Splined Hub, 9 Tooth SAE A, 16/32 DP, 30° PA, 5/8 O.D. Spline, 1.25 Inch OD, 1.250 Inch Long

Description & Features

Constructed from low alloy, high carbon steel, this precision splined hub offers a robust and reliable solution for highly specific industrial needs. The close tolerance of the outer diameter and inner diameter concentricity ensures accurate mounting of sheaves or sprockets, contributing to optimal performance.

Engineered with a 9-tooth SAE A configuration and featuring dimensions of 1.25 inch outer diameter and 1.250 inch length, this hub is designed for precision applications. The spline details include 16/32 DP and a 30deg; pressure angle with a 5/8 inch outer diameter spline, making it suitable for a variety of mechanical systems.

Precision also facilitates accurate chucking for additional mounting, ensuring high operational efficiency.

MPN: 0332-00032

Supplier Part Number: 0332-00032

Specifications

Brand MOTION INDUSTRIES INC - IS22	Brand Motion Industries	Pack Size 1.00	UOM EA	Length 1.25	O.D. 1.25 in	Spline Details 16/32 DP, 30° PA, 5/8 O.D.	Supplier Part Number 0332-00032	Type 9 Tooth SAE A	Alternate Part Numbers Alternate Part Number 0332-00032, Alternate Part Number C1EX23, Alternate Part Number MI-00891492, Alternate Part Number MINO-00435X10761	Product Weight 0.34 lbs

Similar Products

Model Number	Type	Spline Details	O.D.	Length
03-32-00032 Precision Splined Hub	9 Tooth SAE A	16/32 DP, 30° PA, 5/8 O.D.	1.25 in	1.250
03-32-00033 Precision Splined Hub	13 Tooth SAE B	16/32 DP, 30° PA, 7/8 O.D.	1.5 in	1.50
03-32-00034 Precision Splined Hub	14 Tooth SAE C	12/24 DP, 30° PA, 1-1/4 O.D.	2.25 in	2.00
03-32-00074 Precision Splined Hub	13 Tooth SAE D	8/16 DP, 30° PA, 1-3/4 O.D.	3 in	2.25

Product Questions & Answers (2)

Question by: Kurt J on Nov 29, 2025, 3:38 PM

does this hub work with a 9 tooth SAE A spline shaft, or is that just the hub configuration itself?

Answer by: Customer Support on Dec 1, 2025, 1:11 PM

The 9 tooth SAE A spec describes the spline configuration on the hub, so yes, it's built to mate with a matching 9 tooth SAE A splined shaft. The spline details are 16/32 diametral pitch with a 30 degree pressure angle and a 5/8 inch outer diameter spline. As long as your shaft matches those specs, you're in good shape for a proper fit.

Question by: Shawn B on Jun 30, 2025, 10:39 AM

What's the OD on the spline itself? Just want to make sure it'll fit my setup.

Answer by: Customer Support on Jul 2, 2025, 7:54 AM

The outer diameter of the spline is 5/8 inch.
