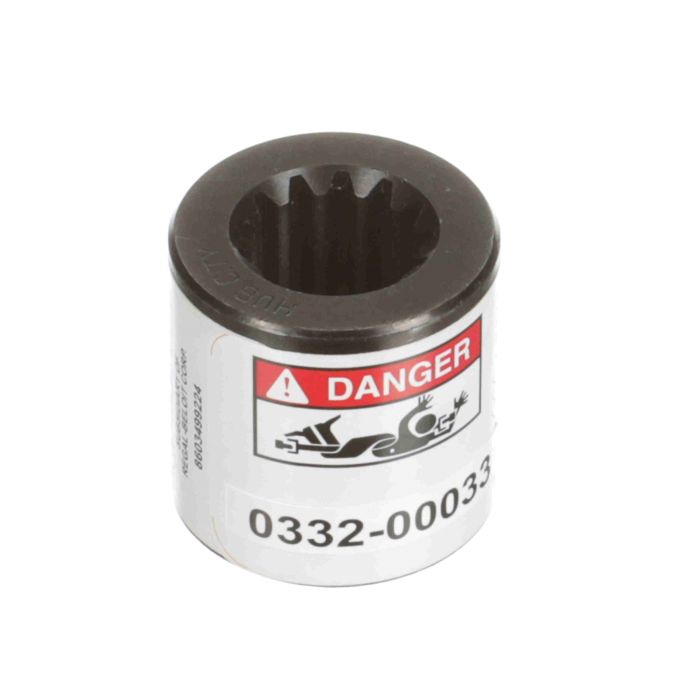

Precision Splined Hub, 13 Tooth SAE B, 16/32 DP, 30° PA, 7/8 O.D. Spline, 1.50 Inch OD, 1.50 Inch Long

Description & Features

Crafted by Motion IS22, the Hub City Precision Splined Hub offers robust performance with its 13 Tooth SAE B configuration. This component boasts a 16/32 DP, 30deg; PA, and a 7/8 O.D. spline, making it suitable for various industrial needs.

Manufactured from low alloy, high carbon steel, its design ensures close tolerance O.D. and I.D. concentricity, facilitating accurate mounting of sheaves or sprockets. With a 1.5 inch outside diameter and 1.5 inch length, this splined hub fits a range of mechanical assemblies.

Precision machining of this hub allows for exact chucking, which is crucial for additional mounting requirements in technical applications. This assures the componentrsquo;s reliability in demanding environments where precision and durability are key.

The Hub City Precision Splined Hub stands out for its solid construction and meticulous engineering, making it a reliable choice for specific industrial uses.

MPN: C1AD60

Supplier Part Number: 0332-00033

Specifications

Dimensions 1-1/2 in OD x 1-1/2 in L	Material Carbon Steel	Spline Details 16/32 Dip, 30 deg Pa, 7/8 in OD	Suitable For Use With Hydraulic Motors

Product Questions & Answers (3)

Question by: Denise M on Sep 2, 2025, 6:21 AM

what's the tooth count and spline spec on this hub, trying to match it up to an SAE B pump mount

Answer by: Customer Support on Sep 4, 2025, 6:16 AM

You're looking at 13 teeth, SAE B configuration, with a 16/32 diametral pitch and a 30 degree pressure angle. The O.D. spline measures 7/8 inch. Those details together should tell you pretty quick whether it lines up with your pump mount.

Question by: Wade W on Jul 16, 2025, 10:38 AM

Will this hub work for mounting a sprocket on a shaft?

Answer by: Customer Support on Jul 18, 2025, 10:24 AM

Made from low alloy, high carbon steel with close tolerances, this splined hub is designed for accurate mounting of sheaves or sprockets.

Question by: Wade G on Jul 17, 2025, 3:23 PM

trying to match up a splined hub i pulled off a setup, what are the key spline specs on this one?

Answer by: Customer Support on Jul 19, 2025, 6:04 AM

For matching, the important callouts are 13 Tooth SAE B with a 7/8 O.D. spline, and the spline form listed as 16/32 DP with a 30° pressure angle.
