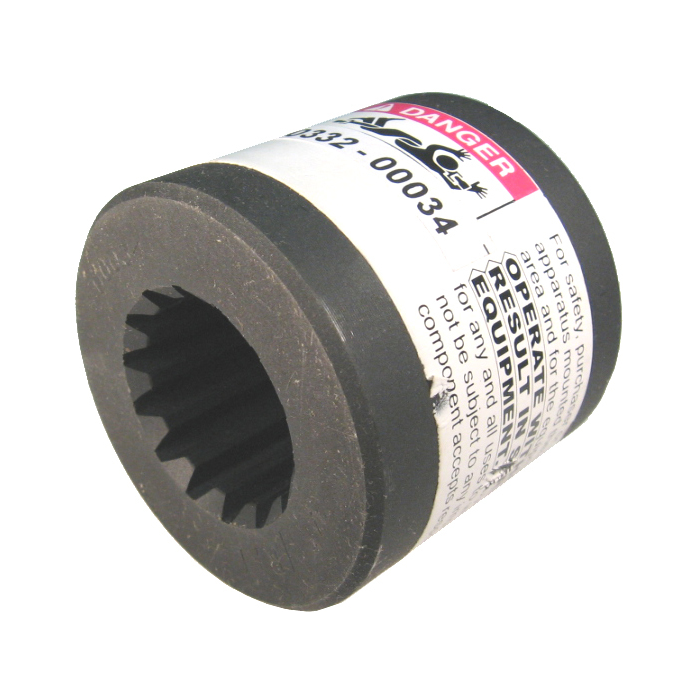

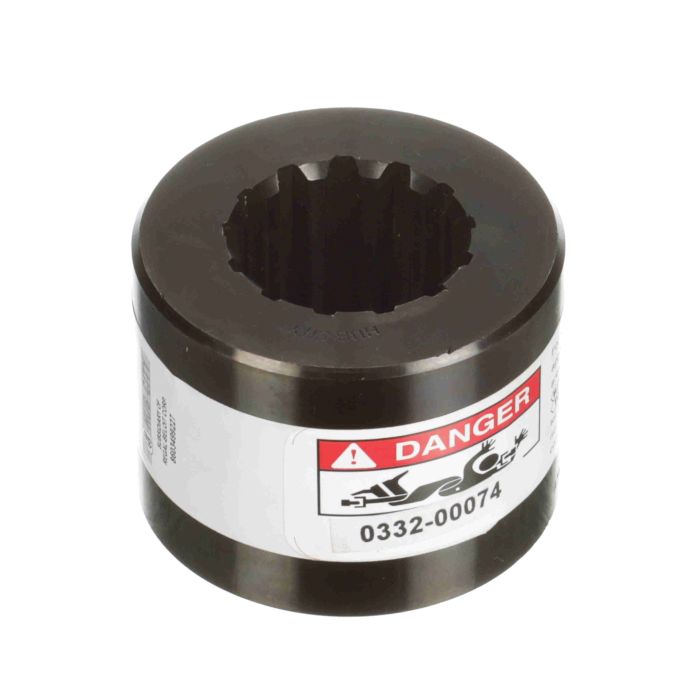

Precision Splined Hub, 13 Tooth SAE D, 8/16 DP, 30° PA, 1-3/4 O.D. Spline, 3.00 Inch OD, 2.25 Inch Long

Description & Features

The Precision Splined Hub, 13 Tooth SAE D, 8/16 DP, 30deg; PA, 1-3/4 O.D. Spline, 3.00 Inch OD, 2.25 Inch Long is a high-precision component manufactured by Motion -IS22. Engineered from low alloy, high carbon steel, this hub ensures durability and long-term performance in industrial applications. The close tolerance of both O.D. and I.D. concentricity allows for accurate mounting of sheaves or sprockets, guaranteeing reliable alignment and function.

With a design that includes 13 teeth and 1-3/4 inch O.D. spline, this hub provides optimal fit and performance in demanding environments. The precision machining enables additional mounting configurations through accurate chucking, enhancing its versatility. This component is ideal for applications requiring stringent tolerance and high-strength materials.

Supplier Part Number: 0332-00074

Specifications

Brand MOTION INDUSTRIES INC - IS22	Brand Motion Industries	Pack Size 1.00	UOM EA	Length 2.25	O.D. 3 in	Spline Details 8/16 DP, 30° PA, 1-3/4 O.D.	Supplier Part Number 0332-00074	Type 13 Tooth SAE D	Alternate Part Numbers Alternate Part Number 0332-00074, Alternate Part Number C1AD63	Product Weight 6.00 lbs

Similar Products

Model Number	Type	Spline Details	O.D.	Length
03-32-00032 Precision Splined Hub	9 Tooth SAE A	16/32 DP, 30° PA, 5/8 O.D.	1.25 in	1.250
03-32-00033 Precision Splined Hub	13 Tooth SAE B	16/32 DP, 30° PA, 7/8 O.D.	1.5 in	1.50
03-32-00034 Precision Splined Hub	14 Tooth SAE C	12/24 DP, 30° PA, 1-1/4 O.D.	2.25 in	2.00
03-32-00074 Precision Splined Hub	13 Tooth SAE D	8/16 DP, 30° PA, 1-3/4 O.D.	3 in	2.25

Product Questions & Answers (2)

Question by: Lance C on Apr 26, 2025, 8:18 AM

what's the spline spec on this hub, is it really a standard SAE D setup or something proprietary?

Answer by: Customer Support on Apr 28, 2025, 8:00 AM

Fully standard SAE D configuration. The spline runs 13 teeth at 8/16 diametral pitch with a 30 degree pressure angle and a 1-3/4 inch O.D. spline. That matches the SAE D spec you'd find on most pumps and motors calling for that interface, so nothing unusual or custom about it.

Question by: Troy J on May 10, 2025, 8:09 AM

What kind of steel is this hub made out of?

Answer by: Customer Support on May 11, 2025, 8:16 PM

It's made from a low alloy, high carbon steel, so it should hold up well in demanding applications.
