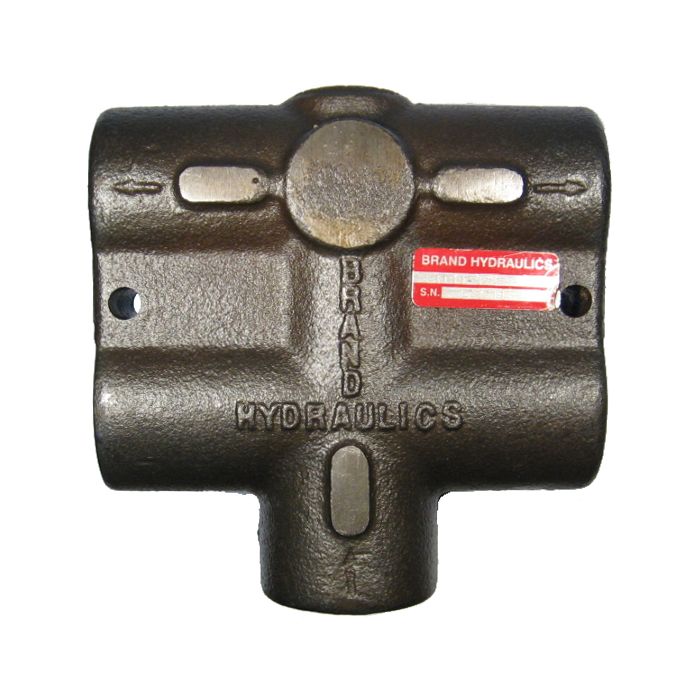

Proportional Flow Dividers With Free Reverse Flow, Up To 30 GPM & 3000 PSI

Description & Features

Application	The B-100 is a non-adjustable divider that receives a single stream and divides into two streams. The two outlet flows are pressure compensating and the sum of outlet flows equal the inlet flow. Flow can travel in reverse through both outlet ports and is not metered when going in reverse. The standard outlet flow ratio is 50:50. WARNING: Spool may bind if valve is mounted with bolts through valve against a flat surface (housing can distort). Mount valve with rigid spacers between valve body and mounting surface to prevent housing distortion.
Features	Precision ground heat treated spools for long life. Pressure compensation for both outlet ports. Free reverse flow. Every valve is factory tested for flow ratio and pressure compensation.
Materials	Cast iron body. Buna-N O-Rings. Heat treated steel spool.
Maximum Operating Pressure	3000 PSI.
Recommended Filtration	30 micron.

Model Number	Flow Range	Outlet Flow Ratio	Price	Action
B-100-3/4 Proportional Flow Divider	16-30 GPM	50:50
B100-3/8 Proportional Flow Divider	2-8 GPM	50:50

Question by: Eddie S on Jul 31, 2025, 12:34 PM

How critical is it to keep the fluid clean with these flow dividers? What micron rating we talking about?

Answer by: Customer Support on Aug 2, 2025, 8:06 AM

Thirty micron filtration is the recommended level to keep these flow dividers operating smoothly and reliably.
