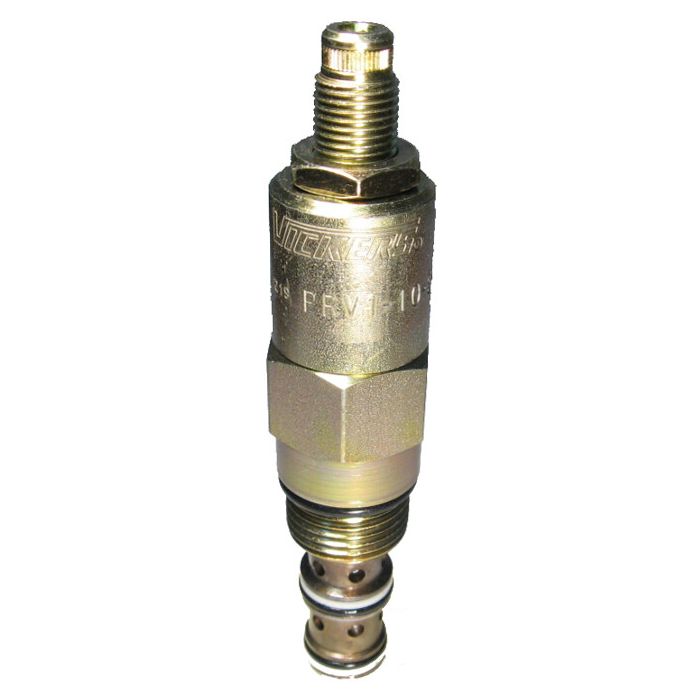

main product photo

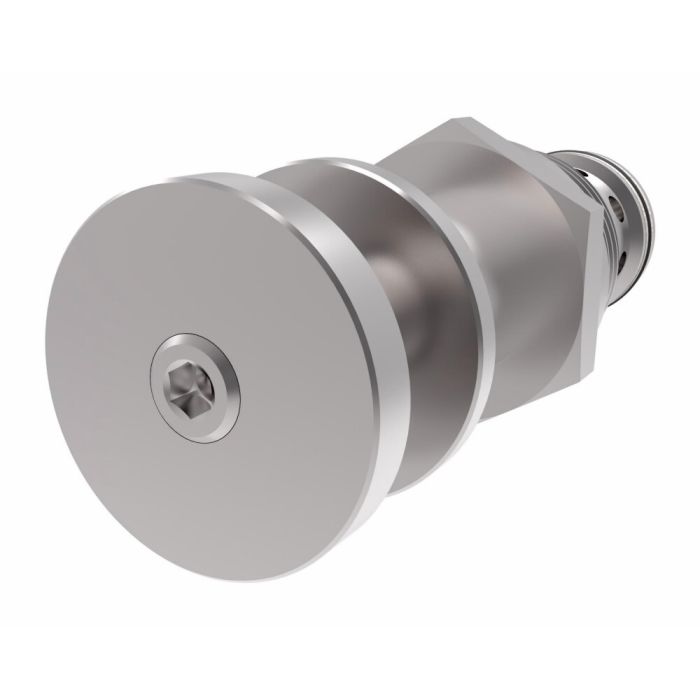

PRV2-16 Series Pilot-Operated Pressure Reducing (Relieving) Cartridge Valve, 1000-6000 PSI (Factory Setting At 3500.00), Screw Adjustment

Ask A Question

Description & Features

A pilot-operated, spool-type screw-in cartridge design, the PRV2-16 Series Pilot-Operated Pressure Reducing (Relieving) Cartridge Valve is factory set at 3500 PSI within an adjustable range of 1000–6000 PSI, making it well suited for mobile and industrial hydraulic circuits including harvesters and refuse haulers. The valve is normally open, passing flow from port 2 to port 1; when pressure at port 1 reaches the set point, the spool shifts to restrict inlet flow and regulate downstream pressure. Excess pressure is relieved through port 3, which must be vented to reservoir.

Rated for flows up to 40 GPM and a maximum system pressure of 5000 PSI across all ports, this three-port cartridge installs into a C-16-3 cavity housing (sold separately). Buna-N seals support a working temperature range of -40°F to 248°F. Recommended hydraulic fluid cleanliness is ISO 4406 level 18/16/13 or cleaner. Note that pressures above 3000 PSI require a steel housing.

SKU: 566376

Supplier Part Number (MPN): 566376

Alternate Part Numbers: C1MG59, PRV216S060/

Specifications

Adjustment
No
Adjustment Style
Screw
Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Cracking Pressure (psi)
1000-6000
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Electrical Flag
No
Housing
None
Installation Type
Screw-in Cartridge
Leakage
0.25 cc/min
Minimum Working Pressure
70
Number of Housing Ports
3
Number of Valve Ports
3
Operation
Pilot Operated
Port Type
Cartrige Only
Pressure Setting
3500
Recommended Filtration Level
18/16/13 microns
Remote Control
No
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Spool
Supplier Part Number
566376
Switch Connector
No
Valve Material
Cartridge only
Alternate Part Numbers
Alternate Part Number C1MG59, Alternate Part Number MINO-00569H79588, Alternate Part Number PRV216S060/
Product Weight
0.94 lbs

Related Documents

Product Questions & Answers (2)

Question by: Ricky S on Oct 19, 2025, 12:30 PM
Can this valve handle pressures up to 5000 PSI without a steel housing?
Answer by: Customer Support on Oct 21, 2025, 6:50 AM
No, pressures over 3000 PSI require a steel housing for this valve. That's a must to keep things safe and working right.
Question by: Howard G on Nov 8, 2025, 6:38 AM
factory set at 3500 but the job calls for something closer to 4500 PSI -- is that something you can dial in with the screw adjustment or is it locked from the factory?
Answer by: Customer Support on Nov 10, 2025, 6:59 AM
The screw adjustment on this valve lets you set pressure anywhere in the 1000 to 6000 PSI range, so dialing up to 4500 is well within what it can handle. Just keep in mind that anything above 3000 PSI requires a steel housing. The cavity size is C-16-3, sold separately, so make sure whatever housing you're sourcing is rated for the pressure you're running.
