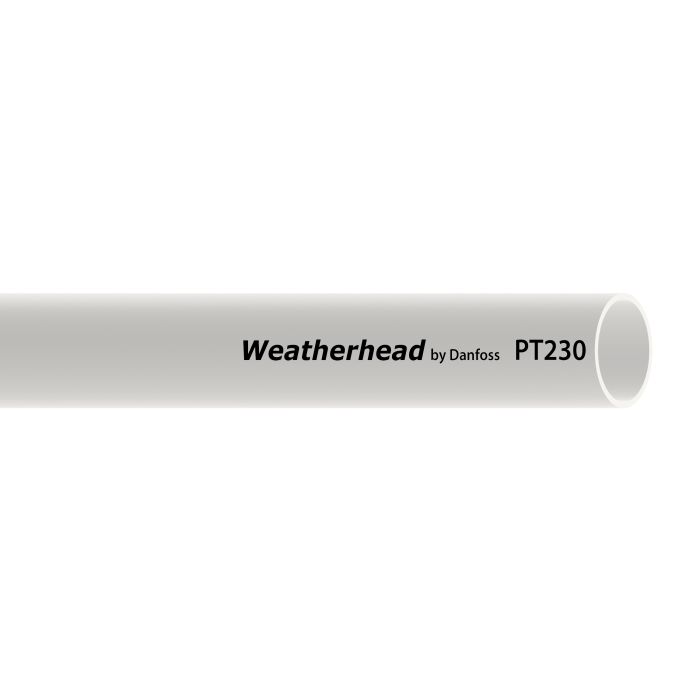

NYLON 6/6 TUBING NATURAL

Extruded from polyamide (Nylon 6/6) in a natural color finish, this tubing is built for air lines and general-purpose fluid transfer in demanding industrial environments. The UV-stabilized reinforcement extends service life in exposed installations, and the premium abrasion resistance makes it well-suited for applications where contact or movement is a factor. A minimum bend radius of 1.5 inches and an operating range starting at -40°F give it practical flexibility across a wide range of conditions.

Weatherhead PT23004NA-1000 Nylon 6/6 Tubing Natural carries FDA 21CFR177.1500 certification, supporting use in applications with food-grade compliance requirements. The tubing is compatible with a broad range of connection methods, including compression, push-to-connect, push-to-connect flow control, push-to-connect plus, and self-align fittings. Lay line marking is applied via ink jet. Available in -4 dash size with a 0.25-inch width, this tubing is part of the Aeroquip Weatherhead line.

SKU: PT23004NA-1000

Supplier Part Number (MPN): XPT23004NA-1000
