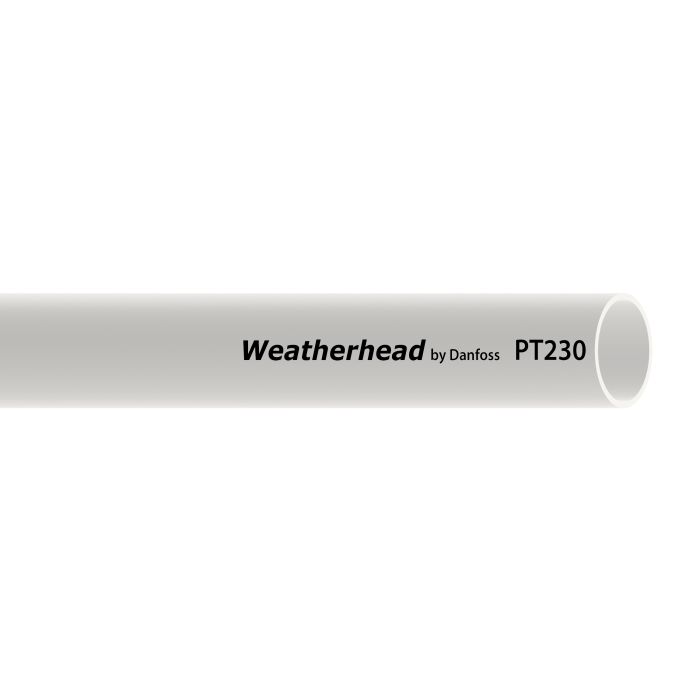

NYLON 6/6 TUBING NATURAL

Ask A Question

Description & Features

This Weatherhead by Danfoss/Eaton NYLON 6/6 TUBING NATURAL is constructed from Polyamide with UV stabilized reinforcement. The extruded tubing offers premium abrasion resistance and excellent durability in demanding applications.

Designed for air and general-purpose use, it meets FDA 21CFR177.1500 certification standards. This -5 dash size tubing has a minimum bend radius of 2" and withstands temperatures from -40 degrees.

SKU: PT23005NA-100

Supplier Part Number (MPN): XPT23005NA-100

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-00925X90020
Application
Air and general purpose.
Certifications
FDA 21CFR177.1500
Color
Natural
Conductivity
30
Construction
Extruded
Cover Material
Polyamide
Dash Size
-5
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
FT
Features
UV resistance last longer than all competitors|Hundreds of styles to choose from|Rugged enough to stand up to the toughest applications
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
2
Minimum Bend Radius
2
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.31
Qualified Hose Fittings
SelfAlign, Compression, Push to Connect, Push to Connect Flow Control, Push to Connect Plus
Reinforcement Material
UV Stabilized
Sub Brand
Weatherhead
Supplier Part Number
PT23005NA-100
Tube Material
Polyamide
Product Weight
0.05 lbs

Related Documents

Product Questions & Answers (1)

Question by: Tommy M on Feb 4, 2026, 10:34 AM
How flexible is this tubing, really? Need to snake it around some equipment.
Answer by: Customer Support on Feb 5, 2026, 9:24 PM
This tubing has a minimum bend radius of 2 inches, so it should be able to handle some tight turns, but nothing too extreme.
