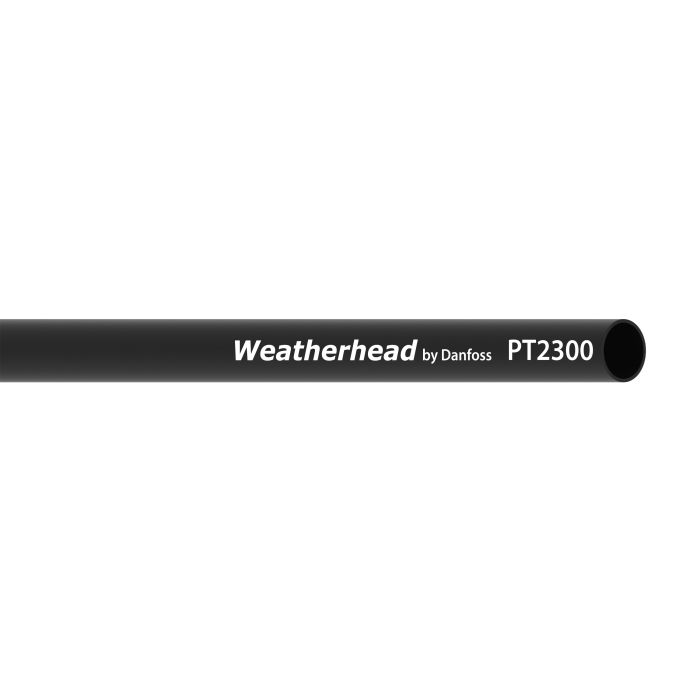

NYLON 6/6 TUBING BLACK

Description & Features

Constructed from extruded polyamide (Nylon 6/6), this black tubing is well-suited for air lines and general-purpose fluid conveyance in industrial environments. UV-stabilized reinforcement contributes to extended service life in exposed conditions, and the conductive formulation helps manage static buildup in applicable systems. A minimum bend radius of 2.25 inches and a minimum working temperature of -40°F support routing flexibility across a range of installation conditions.

Part of the Weatherhead by Eaton PT230 Series, this Aeroquip-branded tubing meets FDA 21CFR177.1500 certification, making it appropriate for applications where food-grade compliance is required. Compatible with a broad range of termination methods, including compression, push-to-connect, push-to-connect flow control, push-to-connect plus, and SelfAlign fittings, the tubing accommodates diverse connection requirements. At dash size -6 with a 0.38-inch width, it fits standard assemblies without modification.

SKU: PT23006BK-100

Supplier Part Number (MPN): XPT23006BK-100

Specifications

Brand
Weatherhead® by Danfoss
Abrasion Resistance
Premium
Color
Black
Conductive
Conductive
Conductivity
Conductive
Construction
Extruded
Core Type
Semi-Rigid
Dash Size
06
Inside Diameter
0.3 in
Material
Polymer
Material Construction
Polyamide
Reinforcement Material
UV Stabilized
Resistance Properties
UV
Series
PT230 Series

Similar Products

Model Number Color Price Action
NYLON 6/6 TUBING NATURAL

PT23006NA-100

Natural

DANFOSS / EATON NYLON 6/6 TUBING

PT23006NA-1000

Natural

Product Questions & Answers (1)

Question by: Gene R on May 26, 2025, 8:11 PM
How flexible is this tubing, exactly? I'm workin' in a pretty tight space.
Answer by: Customer Support on May 28, 2025, 6:57 AM
Its minimum bend radius is 2.25 inches, offering routing flexibility even where space is somewhat restricted.
