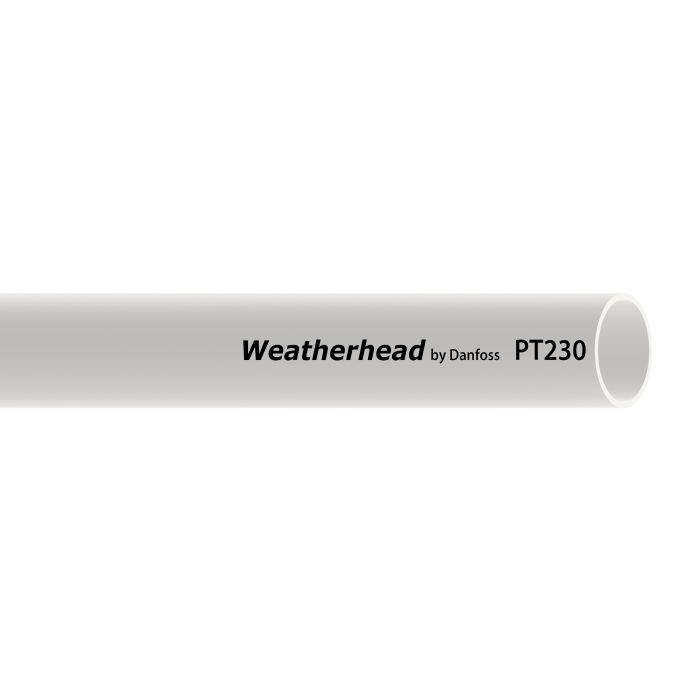

DANFOSS / EATON NYLON 6/6 TUBING

Ask A Question

Description & Features

Extruded from Polyamide (Nylon 6/6), this Dash -6 tubing from Eaton Aeroquip's Weatherhead line is built for air and general-purpose industrial applications where durability and chemical compatibility are priorities. UV-stabilized reinforcement extends service life in exposed environments, and the natural-colored cover carries FDA 21CFR177.1500 certification for applications requiring food-grade compliance.

The Danfoss / Eaton Nylon 6/6 Tubing features a conductive construction with a minimum bend radius of 2.25 inches and is rated for use down to -40°F. Compatible fitting styles include compression, push-to-connect, push-to-connect flow control, push-to-connect plus, and self-align configurations, giving broad flexibility for termination in varied industrial setups.

With premium abrasion resistance and a rugged extruded profile, this tubing handles demanding conditions across a wide range of general industrial fluid and air conveyance uses.

SKU: PT23006NA-1000

Supplier Part Number (MPN): XPT23006NA-1000

Specifications

Abrasion Resistance
28
Application
Air and general purpose.
Certifications
FDA 21CFR177.1500
Color
Natural
Conductivity
30
Construction
Extruded
Cover Material
Polyamide
Dash Size
-6
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
UV resistance last longer than all competitors|Hundreds of styles to choose from|Rugged enough to stand up to the toughest applications
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
2.25
Minimum Bend Radius
2.25
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.38
Qualified Hose Fittings
SelfAlign, Compression, Push to Connect, Push to Connect Flow Control, Push to Connect Plus
Reinforcement Material
UV Stabilized
Sub Brand
Weatherhead
Supplier Part Number
PT23006NA-1000
Tube Material
Polyamide
Product Weight
0.05 lbs

Related Documents

Product Questions & Answers (1)

Question by: Janet Y on Jul 21, 2025, 8:09 AM
What kind of fittings work with this tubing? I use a few different styles around the shop.
Answer by: Customer Support on Jul 23, 2025, 6:01 AM
It's compatible with compression, push-to-connect, push-to-connect flow control, push-to-connect plus, and self-align fittings, so you've got a good range of options.
