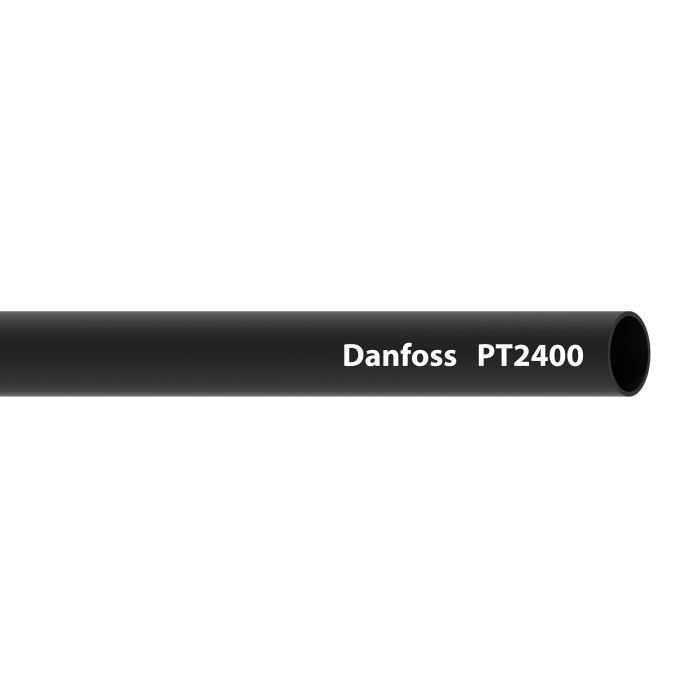

Danfoss / Eaton Air Brake Tubing

Ask A Question

Description & Features

Designed for demanding industrial environments, the Eaton Aeroquip PT240 Series Air Brake Tubing is a premium choice for liquid and gas applications. Constructed from high-quality Nylon 6/6 with a polyethylene cover, this tubing offers superior abrasion and UV resistance, ensuring longevity even in harsh conditions. Its extruded build, combined with a conductive design, enhances safety and functionality across various uses.

The tubing features a minimum bend radius of 0.75 inches, making it flexible for intricate installations. It can withstand temperatures as low as -40 degrees, providing reliability in extreme weather. Compatible with Minibarb, Polyline, SelfAlign, and various push-to-connect fittings, it offers versatility across numerous hydraulic systems. Certified under FDA 21CFR177.1500, the tubing meets stringent quality standards, making it a reliable component in your industrial applications.

SKU: PT24004BK-1000

Supplier Part Number (MPN): XPT24004BK-1000

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-00925F41767
Application
Liquid and gas.
Certifications
FDA 21CFR177.1500
Color
Black
Conductivity
30
Construction
Extruded
Cover Material
Polyethelene
Dash Size
-4
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
UV resistance last longer than all competitors|Hundreds of styles to choose from|Rugged enough to stand up to the toughest applications
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
0.75
Minimum Bend Radius
0.75
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.13
Qualified Hose Fittings
Minibarb, Polyline, SelfAlign, Compression with 2030 insert, Push to Connect, Push to Connect Flow Controls, Push to Connect Plus, Molded Compression
Reinforcement Material
UV Stabilized
Sub Brand
Weatherhead
Supplier Part Number
PT24004BK-1000
Tube Material
Polyethylene
Product Weight
0.01 lbs

Related Documents

Product Questions & Answers (2)

Question by: Lance H on Jul 27, 2025, 11:34 AM
Does this tubing hold up when it's sitting out in the sun all day, or does it get brittle on ya after a season or two?
Answer by: Customer Support on Jul 29, 2025, 6:19 AM
UV stabilization is built right into the reinforcement material, so prolonged sun exposure is something it's actually engineered to handle. The polyethylene cover adds another layer of protection against abrasion and weathering. A lot of competing tubing starts breaking down after extended outdoor use, but the UV resistance on this one is rated to outlast most alternatives in that category.
Question by: Stan M on Jul 22, 2025, 9:21 AM
What kind of fittings work best with this tubing?
Answer by: Customer Support on Jul 24, 2025, 6:08 AM
This tubing is compatible with Minibarb, Polyline, SelfAlign, and various push-to-connect fittings, so you have a lot of options. You can also use compression fittings with a 2030 insert or molded compression fittings.
