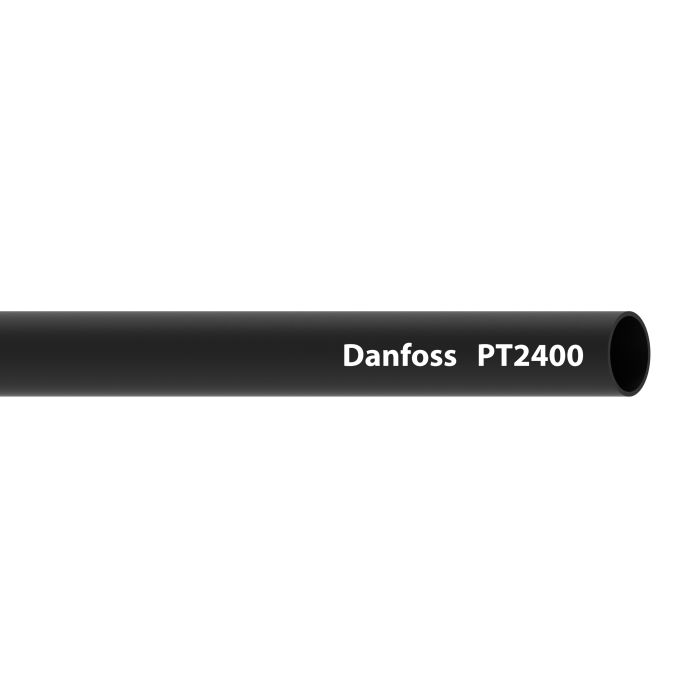

TUBING LLDPE TUBEPOLYETHLENE

Ask A Question

Description & Features

Black extruded polyethylene tubing rated for both liquid and gas applications, the Weatherhead PT24008BK-100 TUBING LLDPE TUBEPOLYETHLENE is part of the Aeroquip PT240 Series and carries FDA 21CFR177.1500 certification, making it suitable for food-grade and regulated-fluid environments. Constructed from linear low-density polyethylene with UV-stabilized reinforcement, it maintains flexibility down to -40°F and offers a minimum bend radius of 2 inches.

The conductive construction supports static-dissipating requirements, while the extruded profile delivers premium abrasion resistance for demanding industrial use. Compatible with a broad range of fitting styles, including Minibarb, Polyline, SelfAlign, Push to Connect, Push to Connect Plus, Compression with 2030 insert, and Molded Compression, this tubing integrates readily into diverse fluid and pneumatic circuit configurations. The ink jet lay line aids in field identification and routing.

SKU: PT24008BK-100

Supplier Part Number (MPN): XPT24008BK-100

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-00925X17664
Application
Liquid and gas.
Certifications
FDA 21CFR177.1500
Color
Black
Conductivity
30
Construction
Extruded
Cover Material
Polyethelene
Dash Size
-8
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
FT
Features
UV resistance last longer than all competitors|Hundreds of styles to choose from|Rugged enough to stand up to the toughest applications
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
2
Minimum Bend Radius
2
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.38
Qualified Hose Fittings
Minibarb, Polyline, SelfAlign, Compression with 2030 insert, Push to Connect, Push to Connect Flow Controls, Push to Connect Plus, Molded Compression
Reinforcement Material
UV Stabilized
Sub Brand
Weatherhead
Supplier Part Number
PT24008BK-100
Tube Material
Polyethylene
Product Weight
0.05 lbs

Related Documents

Product Questions & Answers (1)

Question by: Ross S on Dec 9, 2025, 8:38 PM
Can I use this for brake lines on my truck?
Answer by: Customer Support on Dec 11, 2025, 7:36 AM
This tubing is constructed from linear low-density polyethylene and is suitable for liquid and gas applications, but it's important to verify that it meets the specific pressure and temperature requirements for your brake lines. Refer to your vehicle's specifications to ensure compatibility.
