Pump-Mounted Manual Valve, SPX VALVE PM MANUAL 4W 3P TANDEM CTR

Description & Features

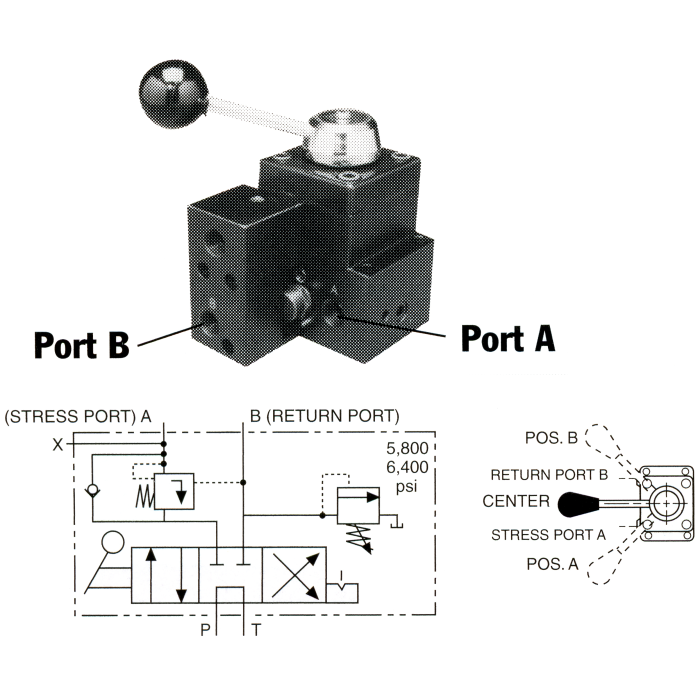

This SPX Hydraulic Technologies pump-mounted manual valve is a 4-way, 3-position valve with a tandem center. It is lever operated with detent positioning, and is designed for use with Power Team air, gasoline, and electric powered hydraulic pumps.

This manual valve is compatible with PA17, PA46, PA55, PE17, PE21, PE30, PE46, PE55, PE60, PE84, PE120, PE200, PE400, PG30, PG55, PG120, PG400, PQ60 and PQ120 series pumps. It is suited for single strand, double-acting stressing jacks with Power Wedge seaters.

SKU: 9500

Supplier Part Number (MPN): 9500

Alternate Part Numbers: C1KV67

Specifications

Brand HYDRAULIC TECH USA LLC(SPX)	Brand SPX Flow	Pack Size 1.00	UOM EA	Alternate Part Numbers Alternate Part Number C1KV67	Supplier Part Number 9500	Product Weight 4.45 lbs

Similar Products

Model Number	Product Description	Price	Action
9500 Pump-Mounted Manual Valve	SPX VALVE PM MANUAL 4W 3P TANDEM CTR
9506 Pump-Mounted Manual Valve	SPX 3 POSITION MANUAL VALVE ASSEMBLY

Product Questions & Answers (3)

Question by: Ronnie H on Dec 30, 2025, 6:18 PM

got a Power Team PE46 pump, does this valve bolt up and work with it?

Answer by: Customer Support on Jan 1, 2026, 6:12 AM

The 9500 pump-mounted manual valve is listed as compatible with Power Team PE46 series pumps, along with a long list of PA, PE, PG, and PQ series models.

Question by: Kirk W on Aug 31, 2025, 7:16 AM

Will this valve work okay with my Power Team PE55 pump?

Answer by: Customer Support on Sep 2, 2025, 6:10 AM

Yes, this manual valve is designed for use with the Power Team PE55 series pumps.

Question by: Judy G on Apr 3, 2026, 6:07 AM

Got a PE55 pump already running on a stressing job, will this valve mount up to it without needing any adapters or extra fittings?

Answer by: Customer Support on Apr 5, 2026, 6:30 AM

PE55 is on the compatibility list, so it'll mount directly to the pump without adapters. Worth noting that some of the smaller pumps in the compatible range, like the PA17 and PE17, can run into reduced first-flow-stage characteristics because of internal valve restrictions, but the PE55 doesn't carry that same asterisk. You should be good to go right out of the box.
