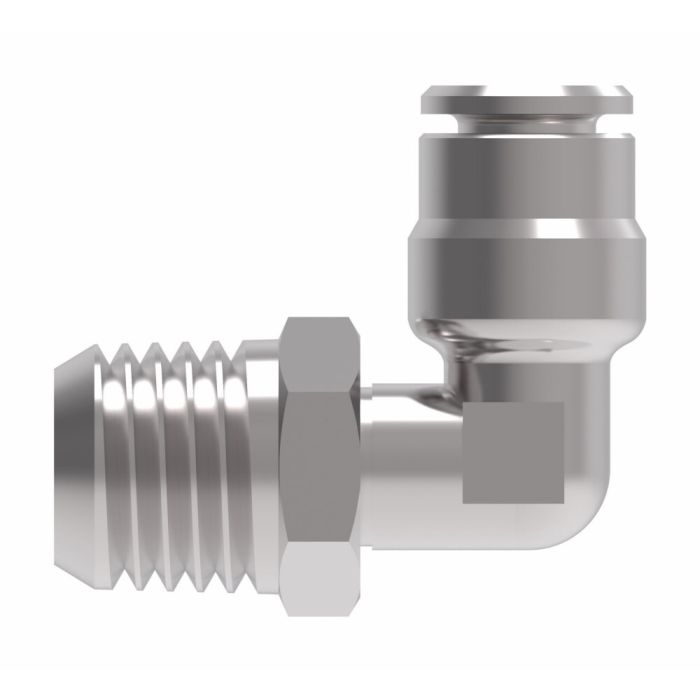

main product photo

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, 90 deg Elbow

Ask A Question

Description & Features

Designed for metric tube connections in tight-space installations, this Eaton Aeroquip Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, 90 deg Elbow routes fluid lines at a 90-degree angle without requiring additional adapters. The swivel elbow configuration allows for rotational adjustment during assembly, simplifying alignment in confined or angular mounting situations.

Constructed from brass, this fitting accepts 12.00 mm OD metric tube on one end and terminates in a 3/8-19 male universal thread compatible with both BSPP and BSPT ports. The push-connect tube end provides tool-free tube insertion, while the swivel feature on the threaded end aids positioning before final torque is applied.

Suited for hydraulic and fluid power systems where metric tubing interfaces with BSPP or BSPT ported components, this fitting is catalogued under Eaton Aeroquip catalog number C1HM28.

SKU: 1169X12MX6PTS

Supplier Part Number (MPN): 1169X12MX6PTS

Alternate Part Numbers: C1HM28

Specifications

E
20
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
F
19.50
M
31
Supplier Part Number
1169X12MX6PTS
Thread 1
3/8-19
Tube O.D.
12
Tube O.D.
12
Alternate Part Numbers
Alternate Part Number C1HM28
Product Weight
0.12 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 E F M Price Action
Brass Push>Connect Metric Tube Fitting, 10.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, 90 deg Elbow

1169X10MX4PTS Push>Connect To BSPP/BSPT 90 Elbow

10

1/4-19

18.5

17.5

28.5

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, 90 deg Elbow

1169X12MX6PTS Push>Connect To BSPP/BSPT 90 Elbow

12

3/8-19

20

19.5

31

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, 90 deg Elbow

1169X4MX2PTS Push>Connect To BSPP/BSPT 90 Elbow

4

1/8-28

14.5

10

20

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, 90 deg Elbow

1169X6MX2PTS Push>Connect To BSPP/BSPT 90 Elbow

6

1/8-28

15

12.7

22

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, 90 deg Elbow

1169X6MX4PTS Push>Connect To BSPP/BSPT 90 Elbow

6

1/4-19

15

12.7

22.5

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, 90 deg Elbow

1169X8MX4PTS Push>Connect To BSPP/BSPT 90 Elbow

8

1/4-19

16

15

25

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, 90 deg Elbow

1169X8MX6PTS Push>Connect To BSPP/BSPT 90 Elbow

8

3/8-19

16.5

15

25

Product Questions & Answers (1)

Question by: Ross J on Sep 18, 2025, 6:31 PM
trying to swap out an elbow on a metric tube line, is this one for 12mm tube and a 3/8-19 male BSP thread?
Answer by: Customer Support on Sep 20, 2025, 6:30 AM
It matches a 12.00 mm tube outside diameter on the push to connect side and a 3/8-19 male Universal BSPP/BSPT thread on the other end. It’s also a 90 degree elbow, so it turns the line at a right angle.
